- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
L-2kw
-
Certification:
-
CE
-
Output Voltage:
-
48/96/120/220v
-
rotor diameter:
-
3.2m
-
Maximum Power:
-
2.2KW
-
Rated Voltage:
-
48/96/120/220V
-
Start-up Wind Turbine:
-
2.5M/S
-
Rated Wind Speed:
-
11M/S
-
Safety Wind Speed:
-
45M/S
-
Top Net Weight:
-
205KG
-
Wheel Diameter:
-
3.2M
-
Work Temperature:
-
-40~80℃
-
Design Life:
-
20 years
Quick Details
-
Rated Power:
-
2kw, 2KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Great
-
Model Number:
-
L-2kw
-
Certification:
-
CE
-
Output Voltage:
-
48/96/120/220v
-
rotor diameter:
-
3.2m
-
Maximum Power:
-
2.2KW
-
Rated Voltage:
-
48/96/120/220V
-
Start-up Wind Turbine:
-
2.5M/S
-
Rated Wind Speed:
-
11M/S
-
Safety Wind Speed:
-
45M/S
-
Top Net Weight:
-
205KG
-
Wheel Diameter:
-
3.2M
-
Work Temperature:
-
-40~80℃
-
Design Life:
-
20 years
3KW Off-grid Wind Power System

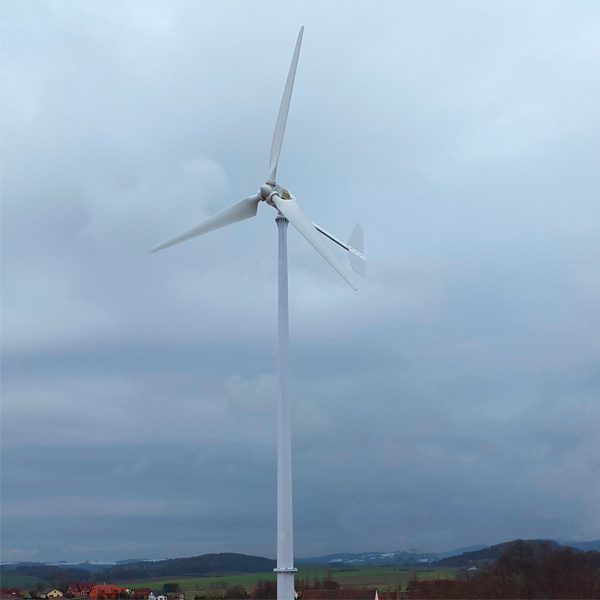

Wind Turbine
*Low start up steed, high wind energy utilization;
*Easy installation, tube or flange connection optional;
*Blades using new art of precision injection molding, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output;
*Body of casting aluminum alloy, with 2 bearings swivel, making it survive stronger wind and run more safety;
*Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel, generator and ensure the performance of whole system;
*Using MPPT control can adjust the voltage more effectively.
Wind & Solar Charger Controller
The wind/solar hybrid controller is control device which can control wind turbine and solar panel at the same time and transform wind and solar energy into electricity then store to the battery bank. Wind/solar hybrid controller is the most important part in offgrid system, whose performance has much effect on life expectancy and operational stability of the whole system, especially the battery expectancy. Or life span of battery will be shortened by overcharge or overdischarge.
Low Frequency Pure Sine Wave Inverter
GTP series Solar Inverter adopted the most advanced technology and the latest network communication technology of United States, giving a perfect power solution for your restrict requirements. It is small, intelligent and high efficiency. In inverter state, it is almost no noise. GTP integrated with PWM technology and its voltage is fully sine wave output, suitable for capacitive load, inductive load and nonlinear mixed load.Protection functions are perfect, such as overload, short circuit, battery voltage over high or over low, these will not cause your machine breakdown. By RS232 communication port, the inverter and power status could be monitored from the connected PC, to understand the working data, setting inverter off, monitoring the working parameters, and to expand functionality for remote network monitoring (via SNMP ADAPTER). It can meet a variety of hybridf solar power system.
GEL Battery
*long life design
*maintenancefree.
*low selfidischarge
*solar panel cell
1. We are Alibaba Assessed Gold Supplier,Popular Supplier.
2.100% QC inspection Before Shippment.
3. CE certificated,competitve price.
4. 7*24 online EMAIL service!
5. We can design different system for customers according to your request. For example, ongrid or offgrid system, solar wind hybrid system or solar wind diesel generator system like below:
1. FedEx/DHL/UPS/TNT for small module samples, DoortoDoor;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 5workdays for samples; 15 workdays for batch goods
