Quick Details
-
Control System Brand:
-
Ruida
-
Cutting Area:
-
2500*1300mm (8 by 4 feet)
-
Cutting Thickness:
-
0.1-45mm nonmetal acrylic wood
-
Control Software:
-
Ruida
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
BST Laser
-
Weight (KG):
-
1000 KG
-
Warranty of core components:
-
10 months
-
Core Components:
-
Laser tube
-
Mode of Operation:
-
Co2 Laser
-
Configuration:
-
Step Motors with Belt Transmission
-
Products handled:
-
Acrylic/Wood/Leather/Fabric Nonmetals
-
Feature:
-
Long Service Time
-
Keyword:
-
Flatbed Co2 laser cutting machine
-
Minimum Characteter:
-
English:1mm ; Arabic nummer:1mm
-
Laser Wavelength:
-
10.6um
-
Laser tube type:
-
CO2 sealed laser tube/Beam Combined Laser Tube
-
Power:
-
100W 120W 150W 180W 300w
-
Control system:
-
Ruida 6445G support 12 language
-
Model:
-
Computer control+LCD panel
-
Design:
-
Rock sturdy construction
-
Access:
-
Access on all 4 sides
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-30,000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Ruida
-
Cutting Area:
-
2500*1300mm (8 by 4 feet)
-
Cutting Thickness:
-
0.1-45mm nonmetal acrylic wood
-
Control Software:
-
Ruida
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
BST Laser
-
Weight (KG):
-
1000 KG
-
Warranty of core components:
-
10 months
-
Core Components:
-
Laser tube
-
Mode of Operation:
-
Co2 Laser
-
Configuration:
-
Step Motors with Belt Transmission
-
Products handled:
-
Acrylic/Wood/Leather/Fabric Nonmetals
-
Feature:
-
Long Service Time
-
Keyword:
-
Flatbed Co2 laser cutting machine
-
Minimum Characteter:
-
English:1mm ; Arabic nummer:1mm
-
Laser Wavelength:
-
10.6um
-
Laser tube type:
-
CO2 sealed laser tube/Beam Combined Laser Tube
-
Power:
-
100W 120W 150W 180W 300w
-
Control system:
-
Ruida 6445G support 12 language
-
Model:
-
Computer control+LCD panel
-
Design:
-
Rock sturdy construction
-
Access:
-
Access on all 4 sides
Model No.:
BE-DK1325
Main Feature:
1)Working Size: 1300*2500mm(4 by 8 feet)
2)laser type: sealed co2 laser tube
3)Power: 100w/120w/150w/180w/200w/300w

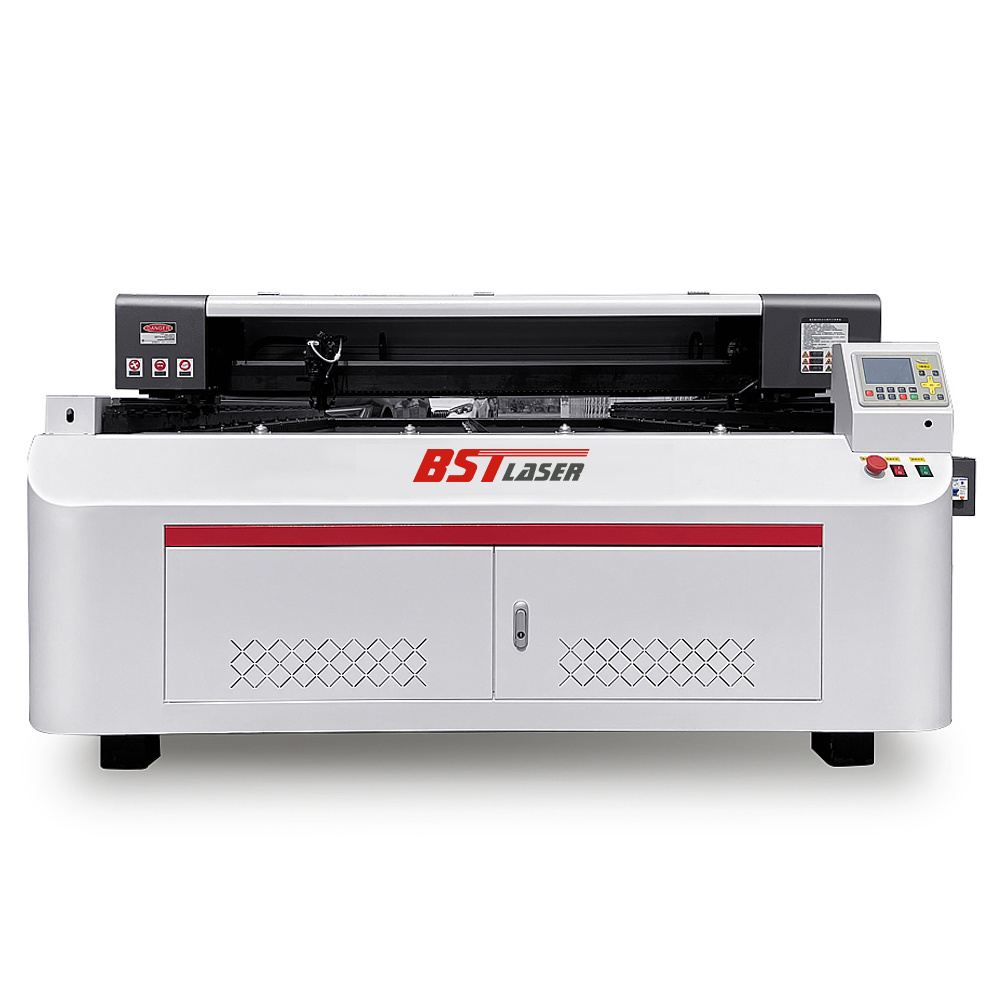

Large size flat bed nonmetal CNC CO2 laser cutting machine
is a multi-function laser equipment which combines the functions of engraving, cutting, carving for clothing,acrylic, wood, plastic, leather and other fields, the industrial large scale co2 cnc laser cutter not only has all the large scale engraving machines function, but also has mechanical design, capability, and working area perfect improved.
This CCD laser cutter machine is equipped with an advanced Vision system, cameraautomatic recognition and positioning, laser will cut it automatically .
Mainly a
pplied on printed fabric, acrylic, MDF wood board, PVC plastic, KT board, and so on.
Application
1300*2500mm CNC CO2 laser cutting machine features:
2.Imported high precision linear guide rail and professional optical system, dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.
4.Adopt CW-5000/6000 Water Cooling System with Alarm Protection and temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
5.Equipped with luxury Consumables, USA Original Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, makes high efficiency and steady.
6.Adopt fast speed stepping motor and driving system, it has high precision in repetition, numeral timing, little error, simulation quantum control laser power, can engrave 1×1mm little English character perfectly.
7.Red Light Pointer realizes the exact position without laser.
8.Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
9.Optional Imported Ball Screw Rod, with high speed and accuracy, the industrial fabric cutting machine is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
Machine Structure
China Top Brand Laser Tube
Industrial Water Cooling Laser Head
Reflect Mirrors and Lens
Industrial Water Chiller
Power Supply
Control Panel
One-Stop Button Control
Ammeter:
Taiwan Hiwin Linear Guide Rail& Thickening Belt Transmission
Air Pump
Auto Exhaust Fan
|
Model
|
BE-DK1325
|
BE-DK1325
|
|
||
|
Working Area
|
1300*2500MM
|
1300x2500mm
|
|
||
|
Laser Power
|
60W/80W/100W/120W/150W
|
|
|
||
|
Laser Type
|
Hermetic and Detached Co2 Laser Tube
|
|
|
||
|
Engraving Speed
|
0-60000mm/s
|
|
|
||
|
Cutting Speed
|
0-10000mm/s
|
|
|
||
|
Cutting thickness
|
0-25mm Acrylic (others determined by materials)
|
|
|
||
|
Repeat Location Accuracy
|
+/-0.0125mm
|
|
|
||
|
Driving mode:
|
DC0.8A 24V stepper motor
|
|
|
||
|
Position system:
|
Red dot
|
|
|
||
|
Interface:
|
USB
|
|
|
||
|
Voltage
|
AC220V/50HZ or 110V/60HZ or depend on customer
|
|
|
||
|
Machine Power
|
900W
|
|
|
||
|
Controlling System
|
CNC Professional Control System
|
|
|
||
|
Support Graphics Mode
|
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
|
|
|
||
|
Cooling Mode
|
Circulation Water Cooling and Protection System
|
|
|
||
|
Auxiliary Devices
|
Exhaust Fan and Exhaust Pipe
|
|
|
||
|
Cutting Platform
|
Professional Thickening Strip or Honeycomb Work Table
|
|
|
||
|
Power Control Mode
|
Laser Energy Combining Movement Control System
|
|
|
||
|
Software
|
Professional Laser Engraving & Cutting Software(Ruida Software)
|
|
|
||
|
Operating temperature
|
0-45C
|
|
|
||
|
Operating humidity:
|
5-95%
|
|
|
||
|
Packing:
|
Standard wooden box
|
|
|
||
|
Operation:
|
Detailed Video to teach customer how to operate the machine
|
|
|
||
|
Packaging
|
|
|
|
Size
|
3.4*2.1*1.4m, 11.42CBM
|
|
|
Weight
|
1000KG
|
|
|
Packaging Details
|
Professional Export Wood Craftcase
with IPCC sign
1.Outside:we adopt wood craft case.
2.Middle: the machine is covered by foam, to protect the machine from shaking.
3. Inside layer, the machine is covered by thickening plastic bag for waterproof. |
|
