Quick Details
-
Model Number:
-
PF-CBP18WS
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
2250
-
Working Lifetime(Hour):
-
40000
-
Working Temperature(℃):
-
-25 - 55
-
Product Weight（kg）:
-
0.5
-
Product Name:
-
Led Corn Light
-
Base:
-
E26/E27/B22/E39/E40
-
Material:
-
Aluminum+PC Cover
-
Wattage:
-
18W
-
Voltage:
-
100-277VAC/50-60HZ
-
CCT:
-
2700K/3000K/4000K/5000K/6000K
-
LED Chip:
-
SMD-2835
-
Beam angle:
-
360degree
-
Driver:
-
Constant Current Driver
-
Size:
-
45*185mm
Quick Details
-
Input Voltage(V):
-
85~265
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Pufa
-
Model Number:
-
PF-CBP18WS
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
2250
-
Working Lifetime(Hour):
-
40000
-
Working Temperature(℃):
-
-25 - 55
-
Product Weight（kg）:
-
0.5
-
Product Name:
-
Led Corn Light
-
Base:
-
E26/E27/B22/E39/E40
-
Material:
-
Aluminum+PC Cover
-
Wattage:
-
18W
-
Voltage:
-
100-277VAC/50-60HZ
-
CCT:
-
2700K/3000K/4000K/5000K/6000K
-
LED Chip:
-
SMD-2835
-
Beam angle:
-
360degree
-
Driver:
-
Constant Current Driver
-
Size:
-
45*185mm

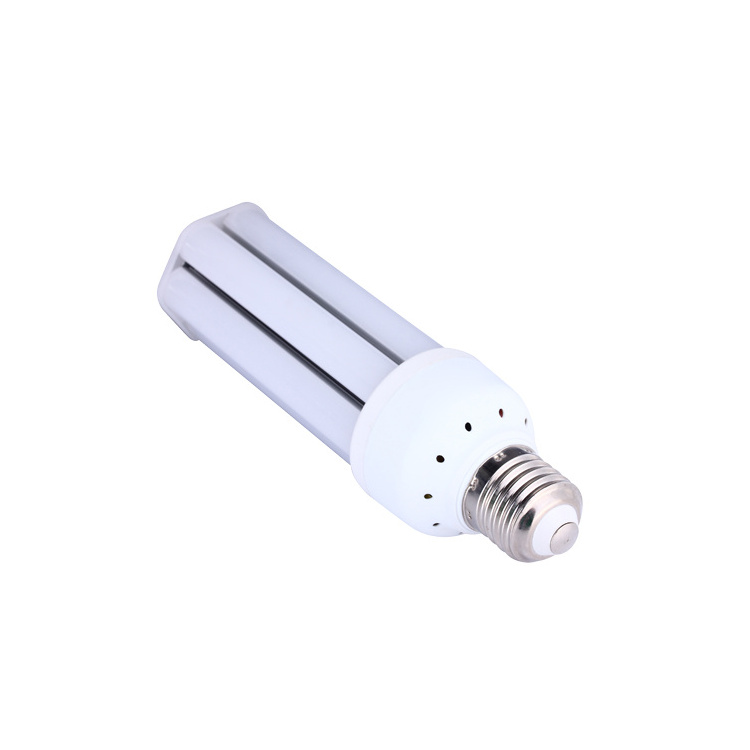

shenzhen led light bulbs special design 3U shape tube warm white E26/E27/ B22 base 18W led corn light bulbs
Product advantages
1.Up to 80% Energy-saving over fluorescent tubes.
2. 50.000hours ideal life span, 10 times over fluorescent tube.
3.Cool lighting source, produce little heat.
4. High PF value 0.98 for decrease of electricity loss.
5.High heat transmittance aluminum PCB for good heat dissipation.
6. Epistar+Intermatix LED packaging solution, no patent trouble.
7.High light efficacy and reliability, cost effective.
8.Comfortable & healthy: no UV, no flickering, and no RF interference.
9 .Environment protection: no mercury and other hazardous materials, fully RoHS compliant.
10.Quick and easy installation to minimize retrofit costs, little maintenance costs.
specification
| Model NO. | PF-CBP8WS | PF-CBP11WS | PF-CBP13WS | PF-CBP15WS | PF-CBP18WS |
| Power | 8W | 11W | 13W | 15W | 18W |
| Lumen | 1000lm | 1375lm | 1625lm | 1875lm | 2250lm |
| Dimension | D40xH138mm | D40xH146mm | D40xH165mm | D40xH165mm | D40x186mm |
| Light Source | 56pcs 2835 | 70pcs 2835 | 77pcs 2835 | 84pcs 2835 | 98pcs 2835 |
| Volt. | 85V~265V | ||||
| Color | Warm White/ Pure White/ Cool White | ||||
| PF | >90 | ||||
| CRI | >82 | ||||
| Driver | Isolated Internal Driver | ||||
| Frequency | 50/60HZ | ||||
| Socket | E26/E27/B22/E39/E40 | ||||
| Materials | Aluminum+PC | ||||
| Warranty | 3 years | ||||
| Lifetime | 40000Hours | ||||
Here mainly listed our normal ones, our professional engineers can research according to different demand
Features
Luminous Intensity Distribution Diagram
Cautions
l . The working input voltage for this dimming bulb is AC 85~265V; please ensure the right voltage before running. Wrong voltage may cause permanent damage.
2. To prevent electric shock, do not touch the metal parts on the ends after connecting electricity.
3. Please check it before using, if there are any breakages, please notify your supplier.
4. Do not touch the light when it’s working.
5. Shut off the power before replacingthe light.
