Quick Details
-
Model Number:
-
301,BT-AR
-
Standard or Nonstandard:
-
Standard
-
Size/Material:
-
14mm/BVPGF
-
Pressure:
-
≤0.6Mpa
-
Linear velocity:
-
10m/s
-
Face Materials:
-
Carbon Graphite / Silicon Carbide/ Tungsten Carbide
-
Secondary Seal Components:
-
NBR/VIITON/EPDM
-
Spring and Construction Materials:
-
Stainless Steel
-
Applications:
-
Clean water, sewage water, oil and other moderately corrosive fluids
-
301 BT-AR):
-
BT-AR
-
Temperature:
-
-30°C~200°C
Quick Details
-
Size:
-
BT-AR
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
chinabase
-
Model Number:
-
301,BT-AR
-
Standard or Nonstandard:
-
Standard
-
Size/Material:
-
14mm/BVPGF
-
Pressure:
-
≤0.6Mpa
-
Linear velocity:
-
10m/s
-
Face Materials:
-
Carbon Graphite / Silicon Carbide/ Tungsten Carbide
-
Secondary Seal Components:
-
NBR/VIITON/EPDM
-
Spring and Construction Materials:
-
Stainless Steel
-
Applications:
-
Clean water, sewage water, oil and other moderately corrosive fluids
-
301 BT-AR):
-
BT-AR
-
Temperature:
-
-30°C~200°C
Temperature: -30°C~200°C
Pressure: ≤0.6Mpa
Linear velocity: 10m/s
Materials for Mechanical Seals:
*Face Materials: Carbon Graphite / Silicon Carbide/ Tungsten Carbide
*Secondary Seal Components: NBR/VIITON/EPDM
*Spring and Construction Materials: Stainless Steel

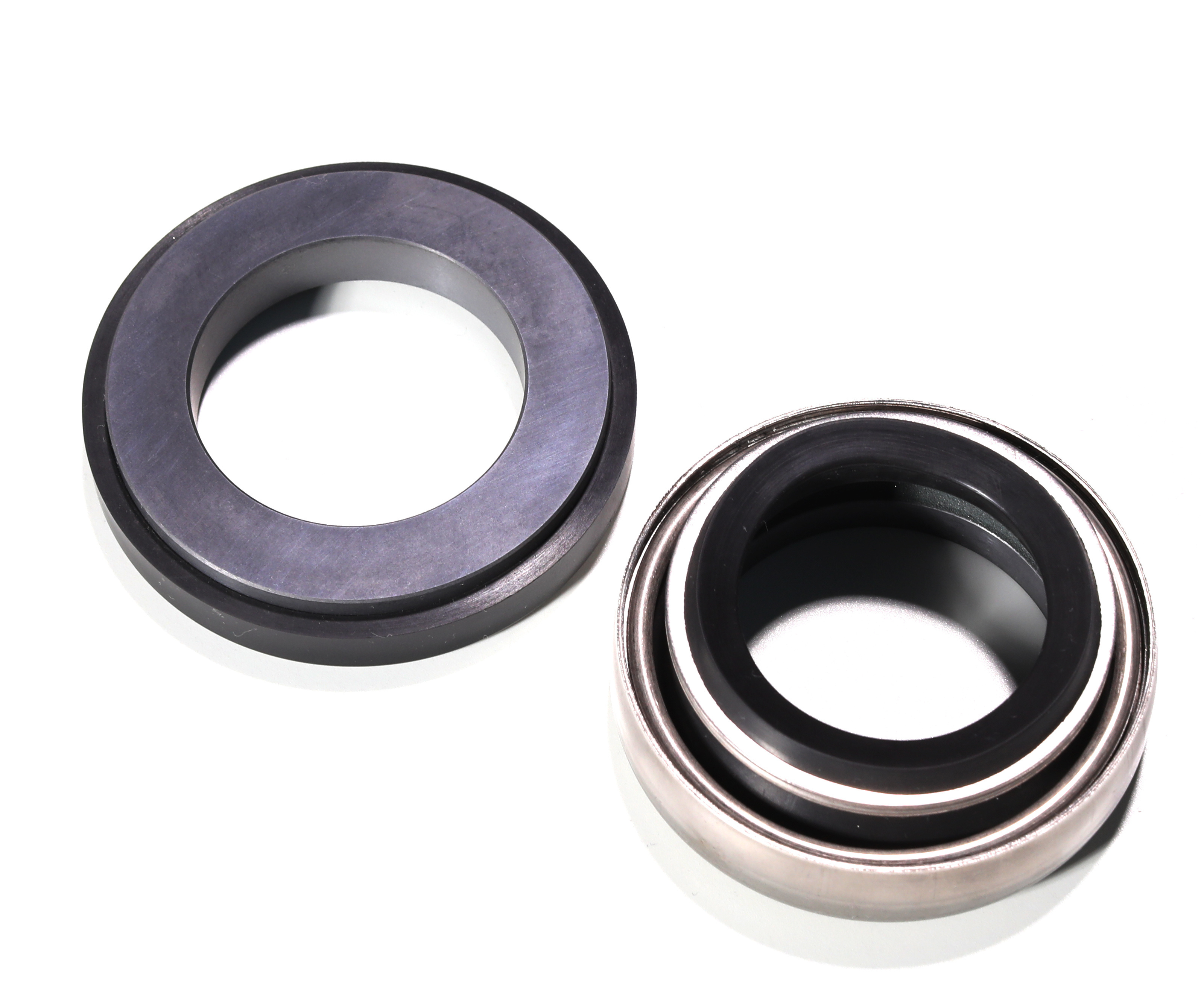

The 301 seal is named BT-AR in Burgmann, The BT-AR combines a spring loaded ceramic face with the tradition of the pusher mechanical seals, the competitive price and the wide range of application have made 155(BT-FN) a successful seal. recommended for submersible pumps. clean water pumps, pumps for domestic appliances and gardening
The wide range of application have made 155(BT-FN) a successful seal. recommended for submersible pumps. clean water pumps, pumps for domestic appliances and gardening.
