Hunan Icemedal Refrigeration Equipment Co., Ltd. is a research and development, production, sales and service in one of the professional refrigeration equipment manufacturing enterprises. The products mainly include cold room, storage cold room,Ice Flake machine, ice cube machine, ice tube machine, ice block machine.
Adhering to the “Integrity, win-win, enjoy life” concept, has been committed to building modular boutique factory for customers,to provide customers with solutions for profit replication, so as to achieve our "Win-win" business value.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
ICEMEDAL
-
Dimension(L*W*H):
-
1400*1200*2200mm
-
Weight:
-
1500 KG
-
Product name:
-
3 Ton Tube Ice Machine
-
Capacity:
-
3 Tons / Day
-
Ice size:
-
22mm/28mm/35mm
-
Refrigerant:
-
R404a/R22a
-
Cooling way:
-
Air Water Evaporating Cooling
-
Function:
-
Automatic Ice Tube Making Machine
-
Material:
-
Stainless Steel 304
-
Compressor:
-
Germany Brand Bitzer
-
Certification:
-
CE ISO9001
-
Control system:
-
PLC+Touch Screen
Quick Details
-
Ice Shape:
-
tube ice
-
Voltage:
-
3P/220V-440V/50Hz/60Hz(Optional)
-
Ice storage capacity:
-
1000kg
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
ICEMEDAL
-
Dimension(L*W*H):
-
1400*1200*2200mm
-
Weight:
-
1500 KG
-
Product name:
-
3 Ton Tube Ice Machine
-
Capacity:
-
3 Tons / Day
-
Ice size:
-
22mm/28mm/35mm
-
Refrigerant:
-
R404a/R22a
-
Cooling way:
-
Air Water Evaporating Cooling
-
Function:
-
Automatic Ice Tube Making Machine
-
Material:
-
Stainless Steel 304
-
Compressor:
-
Germany Brand Bitzer
-
Certification:
-
CE ISO9001
-
Control system:
-
PLC+Touch Screen
Product Description

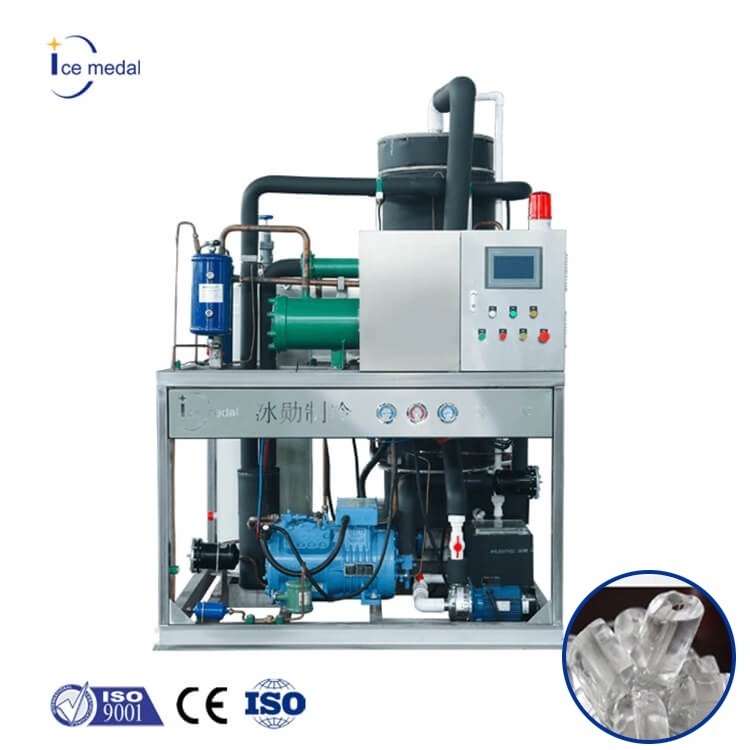

ICEMEDAL 3 Tons Industrial Tube Ice Maker Making Machine
3 ton tube ice machine is a very good choice for a start of your ice business. Working with a water filter and a packing machine,a 3 ton tube ice plant is all completed. We provide you with tube ice plant solution design, helping you with the position design,water pipe arrangement and etc.
Product Paramenters
|
IMT3 3000kg Tube Ice Machine Parameters
|
|
|
|
|
||||
|
Name
|
Unit
|
Parameters
|
|
|
||||
|
Tube Diameter
|
mm
|
Φ22
|
Φ28
|
Φ35
|
||||
|
Bitzer Compressor
|
Model
|
4EES-14
|
|
|
||||
|
|
Refrigerating capacity（kw）
|
28.3
|
|
|
||||
|
|
Power（kw）
|
10
|
|
|
||||
|
Condenser
|
Model
|
WN-15
|
|
|
||||
|
|
Heat exchange capacity（kw）
|
49.2
|
|
|
||||
|
Condensing Temperature
|
Temperature（℃）
|
40
|
|
|
||||
|
Evaporating Temperatue
|
Temperature（℃）
|
-12
|
|
|
||||
|
Ambient Temperature
|
Temperature（℃）
|
32
|
|
|
||||
|
Water Supply Temperature
|
Temperature（℃）
|
20
|
|
|
||||
|
Refrigerant
|
|
R22
|
|
|
||||
|
Power Supply
|
V/P/HZ
|
380/3/50
|
|
|
||||
|
Motor Power
|
1.5Ice Cutting Motor（kW）
|
0.75
|
|
|
||||
|
|
Recircling Pump（kW）
|
0.75
|
|
|
||||
|
Cooling Tower
|
Model
|
LX-20
|
|
|
||||
|
|
Power（kw）
|
0.55
|
|
|
||||
|
Cooling Pump
|
Model
|
GD50-17
|
|
|
||||
|
|
Power（kw)
|
1.5
|
|
|
||||
|
Cooling Fan Power
|
Power（kw)
|
0.56
|
|
|
||||
|
Water Cooling Machine Dimension
|
L*W*H(mm)
|
1300*1100*2200
|
|
|
||||
|
Refrigerant Quantity
|
kg
|
90
|
100
|
110
|
||||
|
Machine Weight
|
kg
|
1500
|
|
|
||||
Package
Why Choose Us
Company Introduction
About Us
Contact Us
FAQ
1.Q:Are you add refrigerant in the ice machine?
A: Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.
2.Q: Do you test the ice machine in your factory?
A: Yes, Our equipment will be tested twice before being put into use. factory inspection and operation test after installation at the buyer's destination to ensure that we provide the best service to customers.
3.Q: All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for aboard?: Such as 440V/60 HZ or 220V three phase that suitable for America?
A: Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.
4.Q: Whats the deliver time of your machine?
A: 1~5ton, 30 days since the deposit arrived at our account. 5~20 ton, 45 days.(based on the electricity 380V/50Hz/3p. some special design lead time will be longer.
A: Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.
2.Q: Do you test the ice machine in your factory?
A: Yes, Our equipment will be tested twice before being put into use. factory inspection and operation test after installation at the buyer's destination to ensure that we provide the best service to customers.
3.Q: All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for aboard?: Such as 440V/60 HZ or 220V three phase that suitable for America?
A: Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.
4.Q: Whats the deliver time of your machine?
A: 1~5ton, 30 days since the deposit arrived at our account. 5~20 ton, 45 days.(based on the electricity 380V/50Hz/3p. some special design lead time will be longer.
