Quick Details
-
Warranty:
-
NO
-
Type:
-
COB
-
OE No.:
-
Car Bulb Chips
-
Product name:
-
S2 Car Light Chips
-
Watt:
-
15w
-
Application:
-
LED chip for Car headlight
-
Package Type:
-
Flip chip
-
CCT:
-
6500K
-
Base Material:
-
Aluminum
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COOLEEON
-
Model Number:
-
COB-S2
-
Warranty:
-
NO
-
Type:
-
COB
-
OE No.:
-
Car Bulb Chips
-
Product name:
-
S2 Car Light Chips
-
Watt:
-
15w
-
Application:
-
LED chip for Car headlight
-
Package Type:
-
Flip chip
-
CCT:
-
6500K
-
Base Material:
-
Aluminum
-
Certification:
-
CE

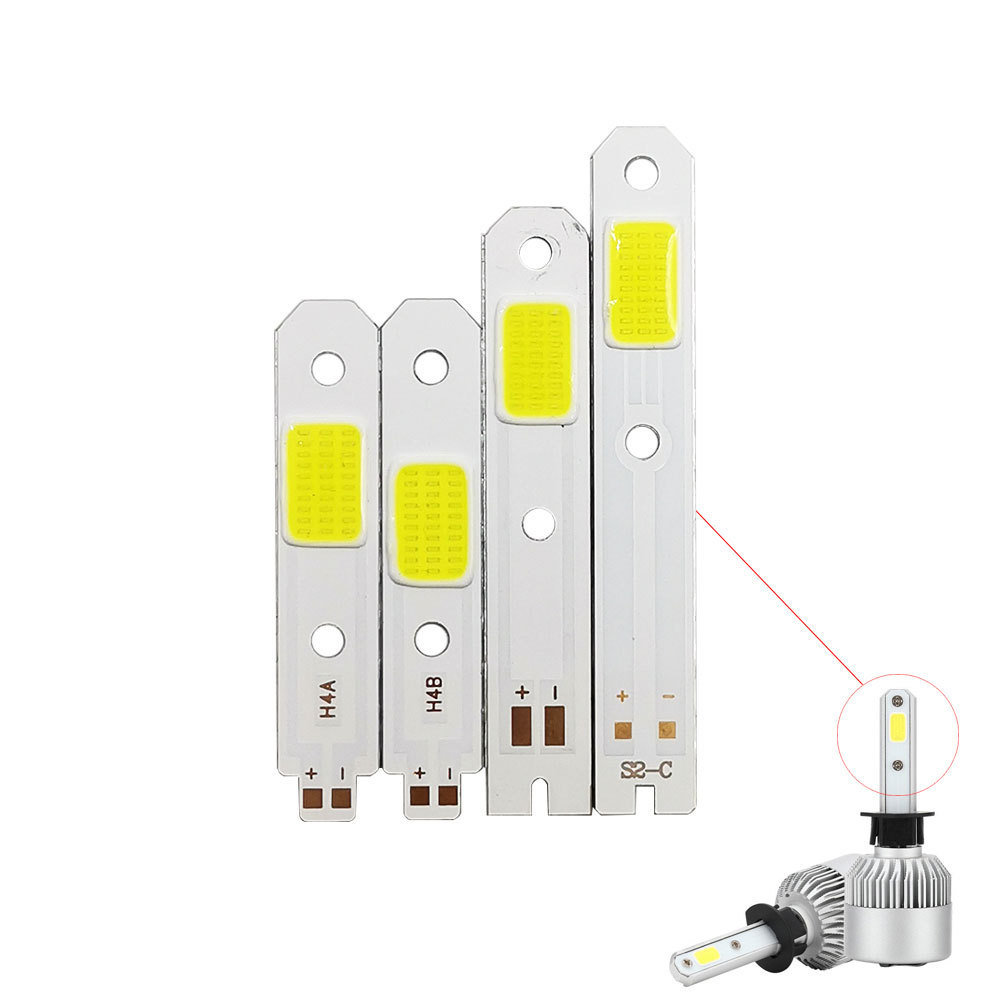

| Product name | S2 car bulb chips | Colors | Cool white |
| Type | H1, H4 A, H4B, H7 | Color temperature | 6000K |
| Weight | 5g | Brightness | 1500-2000LM |
| Working Votalge | 9V | RA (CRI) | 80 |
| Max Current | 1000mA | Working temperature | -20 to 70℃ |
| Watt | 15W | COB Mode | Flip Chip |
What is LED COB?
COB (Chips on Board) is a new technology of LED packaging of LED light engine. Multi LED chips are packaged together as one light module. When it lights up, it looks like a lighting panel.
How COB LED light source works?
In COB lighting, single LED chips are placed directly on a circuit board (or substrate) which has thermal properties to disperse heat. Heat dissipation is a very important aspect of LED lighting since it can have a major impact on the life expectancy of the luminary. Therefore, COB lighting can have a higher LED chip density and achieve higher light level while maintaining or improving life expectancy.
Advantage of LED COB:
COB light is a more efficient form of LED lighting for general or automotive lighting applications because:
- light has a more uniform appearance
- better life expectancy
- achieve higher light level over a large area
- COB is more stable and reliable than standard LED package.
