Quick Details
-
Size:
-
13000mmx3200mm
-
Place of Origin:
-
Hubei, China
-
Product name:
-
low bed semi-trailer
-
Axle:
-
2/3/4 Axle BPW FUWA
-
Suspension:
-
Mechanical Suspension
-
Loading capacity:
-
40-80T
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
5001-10000 kg
-
Brand Name:
-
CSC
-
Size:
-
13000mmx3200mm
-
Place of Origin:
-
Hubei, China
-
Product name:
-
low bed semi-trailer
-
Axle:
-
2/3/4 Axle BPW FUWA
-
Suspension:
-
Mechanical Suspension
-
Loading capacity:
-
40-80T
|
DIMENSIONS |
|
||
|
Tare Weight |
12000 kgs |
||
|
Payload |
60000 kgs |
||
|
Overall Length |
13000 mm |
||
|
Overall Width |
3200 mm |
||
|
Work deck length |
9800mm ( not including the gooseneck’s length) |
||

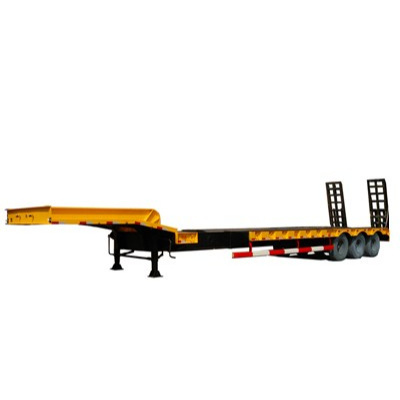

| Photo for reference, final produce can be made according to exact requirements | |||
|
SPECIFICATION |
|
||
|
Main beam |
Heavy duty and extra durability designed I beam ; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 20mm,width 200mm; Middle Flange 12 mm, height 500mm; Bottom Flange 20 mm, width 200mm. |
|
|
|
Axle |
3 axles, 4 axle, 5 axle for optional |
|
|
|
FUWA 13Tons |
|
||
|
Suspension |
Heavy duty mechanical suspension or FUWA brand air suspension. |
|
|
| Floor |
4mm checker plate |
|
|
|
Side height |
800mm |
|
|
|
Leaf Spring |
10 piece Leaf spring |
|
|
|
King Pin |
JOST brand 3.5” Bolt-in King Pin |
|
|
|
Landing Gear |
FUWA 28T heavy duty landing gear |
|
|
|
Tire |
8.25R20, 12 pieces |
|
|
|
Braking System |
WABCO relay valve;T30/30+T30 Spring brake chamber;40L air tanks |
|
|
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
