Quick Details
-
Production Capacity:
-
weigher 65bpm
-
Weight (KG):
-
365
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zon pack
-
weigher services:
-
Engineers available to service machinery overseas
-
weigher functions:
-
weighing and counting
-
weigher touchscreen:
-
colorful and friendly operation
-
weigher language:
-
multiple language
-
weigher control:
-
MCU
-
weigher performance:
-
stable
-
weigher speed:
-
high speed
-
weigher program:
-
99 programs saving
-
weigher operation:
-
friendly and low maintenance
-
weigher engineer team:
-
more than 15 years experience
Quick Details
-
Function:
-
FILLING, Sealing, counting, weighing
-
Packaging Type:
-
Cartons, CANS, Bottles, Stand-up Pouch, Bags
-
Packaging Material:
-
Plastic, Wood
-
Production Capacity:
-
weigher 65bpm
-
Weight (KG):
-
365
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zon pack
-
weigher services:
-
Engineers available to service machinery overseas
-
weigher functions:
-
weighing and counting
-
weigher touchscreen:
-
colorful and friendly operation
-
weigher language:
-
multiple language
-
weigher control:
-
MCU
-
weigher performance:
-
stable
-
weigher speed:
-
high speed
-
weigher program:
-
99 programs saving
-
weigher operation:
-
friendly and low maintenance
-
weigher engineer team:
-
more than 15 years experience

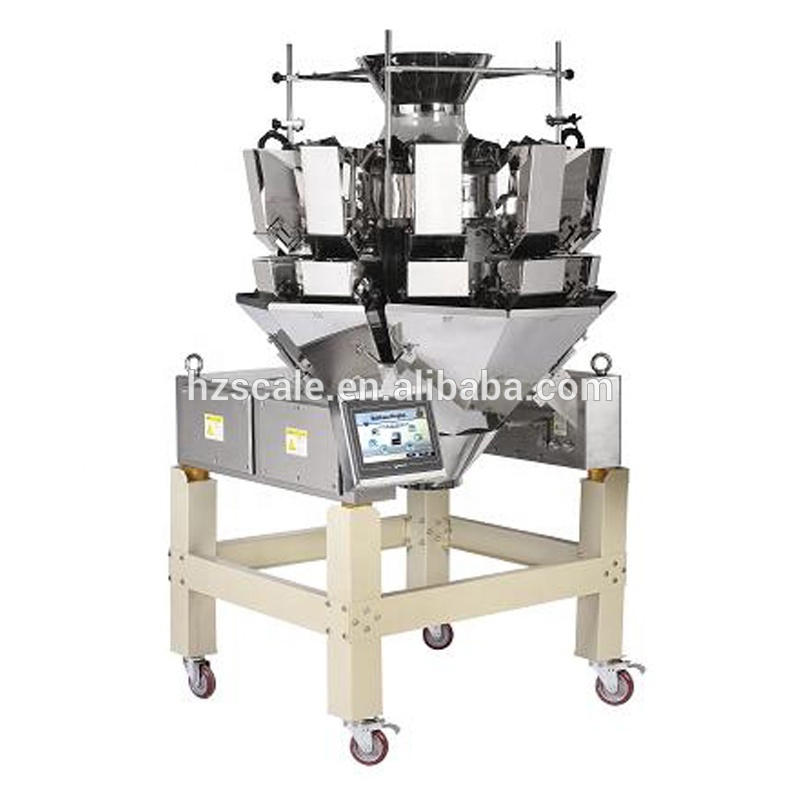

ZH-A10 Multihead Weigher with VFFS packaging machine
1. ZH-A10 Multihead Weigher is developed for precise and high-speed quantitative weighing packaging system . It is suitable for weighing materials of grain , stick , slice , globose, irregular shape .
2. Multihead Weigher Main function
1). Vibrator modifies the amplitude basing on different target to material down more equable and get higher combination rate .
2). Multi-time drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper .
3). Material collecting process system with difference automatic identified and one drag two function can remove unqualified product and deal with material drop signals from two packaging machines .
4).Multi-language operation system can be selected basing on customer’s requests .
3. Multihead Weigher Parameters
|
Item |
Specifications |
|
Model |
ZH-A10 multihead weigher |
|
Weighing range |
10-2000g |
|
Max weigh speed |
65 bags/min |
|
Accuracy |
±0.1-1.5g |
|
Weighing Hopper volume |
1600 ml /2500ml/5000ml |
|
Driver method |
stepper motor |
|
Option |
Timing hopper/ Double door hopper /Dimple hopper / Printer/Overweight identifier/ Rotary vibrator |
|
HMI |
7 inch HMI |
|
Power |
220V/1000W/50/60Hz/10A |
|
Machine Packaging (mm) |
1482(L)*1080(W)*1116 (H) |
|
Total weight (kg) |
400kg |
Multihead weigher is suitable for grains, sticks, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc
Linear weigher weighing products are small grains with good uniformity ,such as oatmeal, sugar, salt, seeds, nuts, rice, sesame, milk powder, peas , chocolate balls ,etc .
Multihead weigher components :
