Quick Details
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China
-
Brand Name:
-
yuerong
-
Model Number:
-
5*110mm
-
Product name:
-
Professional tools SDS plus electric concrete hammer drill
-
Drill body:
-
40Cr
-
Carbide Alloy Tip:
-
YG-8C
-
Length:
-
110mm
-
Shank:
-
SDS PLUS
-
Application:
-
Concrete
-
Hardness:
-
HRC48-50
-
Usage:
-
Drillimg Holes Drill Bit
Quick Details
-
Type:
-
Center Drill Bit, Twist Drill Bit, Slot tip of SDS Plus Drill Bits
-
Use:
-
Masonry Drilling
-
Finish:
-
sand blast
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China
-
Brand Name:
-
yuerong
-
Model Number:
-
5*110mm
-
Product name:
-
Professional tools SDS plus electric concrete hammer drill
-
Drill body:
-
40Cr
-
Carbide Alloy Tip:
-
YG-8C
-
Length:
-
110mm
-
Shank:
-
SDS PLUS
-
Application:
-
Concrete
-
Hardness:
-
HRC48-50
-
Usage:
-
Drillimg Holes Drill Bit
Products Description
|

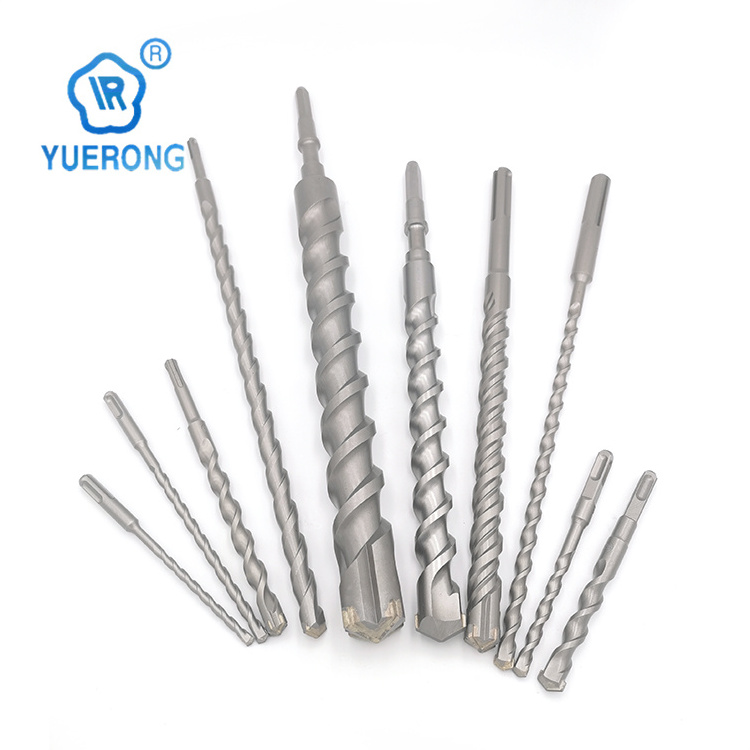

SDS Plus Drill Bits For Concrete Drilling
|
|
In combination with various types of electric hammer, the drill is one of the most efficient tools suitably and widely use for hole drilling in hard materials like concrete/brick in construction & installation industries.
|
|
SPECIFICATION PARAMETER
|
|
|
|
|
||||
|
|
|
|
Unit:mm
|
|||||
|
Size
|
Grip Type
|
Carbide Diameter
|
Work Length
|
Over Length
|
||||
|
3x110
|
9.95
|
3
|
60
|
110
|
||||
|
4x110
|
9.95
|
4
|
60
|
110
|
||||
|
5x110
|
9.95
|
5
|
60
|
110
|
||||
|
5.5x110
|
9.95
|
5.5
|
60
|
110
|
||||
|
6x110
|
9.95
|
6
|
60
|
110
|
||||
|
6.5x110
|
9.95
|
6.5
|
60
|
110
|
||||
|
7x110
|
9.95
|
7
|
60
|
110
|
||||
|
8x110
|
9.95
|
8
|
60
|
110
|
||||
|
9x110
|
9.95
|
9
|
60
|
110
|
||||
|
10x110
|
9.95
|
10
|
60
|
110
|
||||
|
12x110
|
9.95
|
12
|
60
|
110
|
||||
|
13x110
|
9.95
|
13
|
60
|
110
|
||||
|
14x110
|
9.95
|
14
|
60
|
110
|
||||
|
15x110
|
9.95
|
15
|
60
|
110
|
||||
|
16x110
|
9.95
|
16
|
60
|
110
|
||||
|
4x160
|
9.95
|
4
|
110
|
160
|
||||
|
5x160
|
9.95
|
5
|
110
|
160
|
||||
|
5.5x160
|
9.95
|
5.5
|
110
|
160
|
||||
|
6x160
|
9.95
|
6
|
110
|
160
|
||||
|
6.5x160
|
9.95
|
6.5
|
110
|
160
|
||||
|
7x160
|
9.95
|
7
|
110
|
160
|
||||
|
8x160
|
9.95
|
8
|
110
|
160
|
||||
|
9x160
|
9.95
|
9
|
110
|
160
|
||||
|
10x160
|
9.95
|
10
|
110
|
160
|
||||
|
12x160
|
9.95
|
12
|
110
|
160
|
||||
|
13x160
|
9.95
|
13
|
110
|
160
|
||||
|
14x160
|
9.95
|
14
|
110
|
160
|
||||
|
15x160
|
9.95
|
15
|
110
|
160
|
||||
|
16x160
|
9.95
|
16
|
110
|
160
|
||||
|
18x160
|
9.95
|
18
|
110
|
160
|
||||
|
20x160
|
9.95
|
20
|
110
|
160
|
||||
|
...x210
|
9.95
|
...
|
160
|
210
|
||||
|
...x260
|
9.95
|
...
|
210
|
260
|
||||
|
...x310
|
9.95
|
...
|
260
|
310
|
||||
|
...x360
|
9.95
|
...
|
310
|
360
|
||||
|
...x410
|
9.95
|
...
|
360
|
410
|
||||
|
...x460
|
9.95
|
...
|
410
|
460
|
||||
|
...x600
|
9.95
|
...
|
550
|
600
|
||||
|
...x800
|
9.95
|
...
|
750
|
800
|
||||
|
...x1000
|
9.95
|
...
|
950
|
1000
|
||||
|
...x1200
|
9.95
|
...
|
1150
|
1200
|
||||
|
...x1500
|
9.95
|
...
|
1450
|
1500
|
||||
|
...x1800
|
9.95
|
...
|
1750
|
1800
|
||||
|
...x2000
|
9.95
|
...
|
1950
|
2000
|
||||
|
...x2500
|
9.95
|
...
|
2450
|
2500
|
||||
|
...x3000
|
9.95
|
...
|
2950
|
3000
|
||||
|
...x3500
|
9.95
|
...
|
3450
|
3500
|
||||
|
...x4000
|
9.95
|
...
|
3950
|
4000
|
||||
|
...x4500
|
9.95
|
...
|
4450
|
4500
|
||||
|
...x5000
|
9.95
|
...
|
4950
|
5000
|
||||
|
...x5500
|
9.95
|
...
|
5450
|
5500
|
||||
|
...x6000
|
9.95
|
...
|
5950
|
6000
|
||||
|
...
|
9.95
|
...
|
...
|
...
|
||||
|
|
|
|
|
|||||
|
|
||
|
Product Name
|
Carbide Flat/Single Head Tip U Flute SDS Plus Rotary Hammer Drill Bit for Concrete and Hard Stone
|
|
|
Body Material
|
40Cr Steel with Heat Treatment
|
|
|
Tip Material
|
Tungsten Carbide
|
|
|
Process
|
Milled Flutes and Welded Tip
|
|
|
Shank
|
SDS-Plus shank (SDS-Max shank, Hex shank, SDS Tapcon shank, Spline shank are avavilable )
|
|
|
Tip Type
|
Flat/Single (Centric tip,Single tip , X head are available)
|
|
|
Flute Type
|
U Flute ( S4 Flute and L Flute are available)
|
|
|
Size
|
3*110mm - 65*6000mm (5/32" * 4" to 2 3/5" * 240")
|
|
|
Surface Finish
|
Sand Blasted
|
|
|
Package
|
One Piece in One PVC Pouch Or Plastic Hanger or PVC Tube or PVC Double Blister
|
|
|
Features
|
1.Professional quality for efficient and fast hammer drilling in hard materials like concrete, granite, brick and other similar
|
|
|
|
building materials.
|
|
|
|
2.Premium carbon steel with heat treatment improves core strength for maximum durability and extended life.
|
|
|
|
3.Hardened, premium carbide insert tip is strong and stays sharp longer for finer material break up and easier drilling increases
|
|
|
|
strength and durability.
|
|
|
|
4.Copper braze material gives high heat resistance for reduced tip loss,Carbide tip securely embedded in the steel body.
|
|
|
|
5.U flute ensures fast, efficient removal of drilling dust and debris to increase speed and prevent clogging.
|
|
|
|
6.Wear mark identifies when bit has worn to an inappropriate level for precision anchoring.
|
|
|
|
7.Compatible with all SDS-PLUS style chucks.
|
|
Drill bits are cutting tools used to remove material to create holes, almost always of circular cross-section. Drill bits come in many sizes and shapes and can create different kinds of holes in many different materials. In order to create holes drill bits are usually attached to a drill, which powers them to cut through the workpiece, typically by rotation. The drill will grasp the upper end of a bit called the shank in the chuck.
Drill bits come in standard sizes, described in the drill bit sizes article. A comprehensive drill bit and tap size chart lists
metric and imperial sized drill bits alongside the required screw tap sizes. There are also certain specialized drill bits that
can create holes with a non-circular cross-section.
(from wikipedia)
Drill bits come in standard sizes, described in the drill bit sizes article. A comprehensive drill bit and tap size chart lists
metric and imperial sized drill bits alongside the required screw tap sizes. There are also certain specialized drill bits that
can create holes with a non-circular cross-section.
(from wikipedia)
