It is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic.Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Haida
-
Model Number:
-
HD-F750-1A
-
Control and display:
-
Computer
-
Capacity:
-
200KG
-
Motor:
-
Servo motor
-
Driver:
-
Taiwan high precision ball screw
-
Weight:
-
160KG
-
Sensor:
-
Load cell
-
Accessories:
-
One computer with software
-
Dimension:
-
790*590*1010mm
-
Model:
-
HD-F750
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haida
-
Model Number:
-
HD-F750-1A
-
Control and display:
-
Computer
-
Capacity:
-
200KG
-
Motor:
-
Servo motor
-
Driver:
-
Taiwan high precision ball screw
-
Weight:
-
160KG
-
Sensor:
-
Load cell
-
Accessories:
-
One computer with software
-
Dimension:
-
790*590*1010mm
-
Model:
-
HD-F750
Product Description

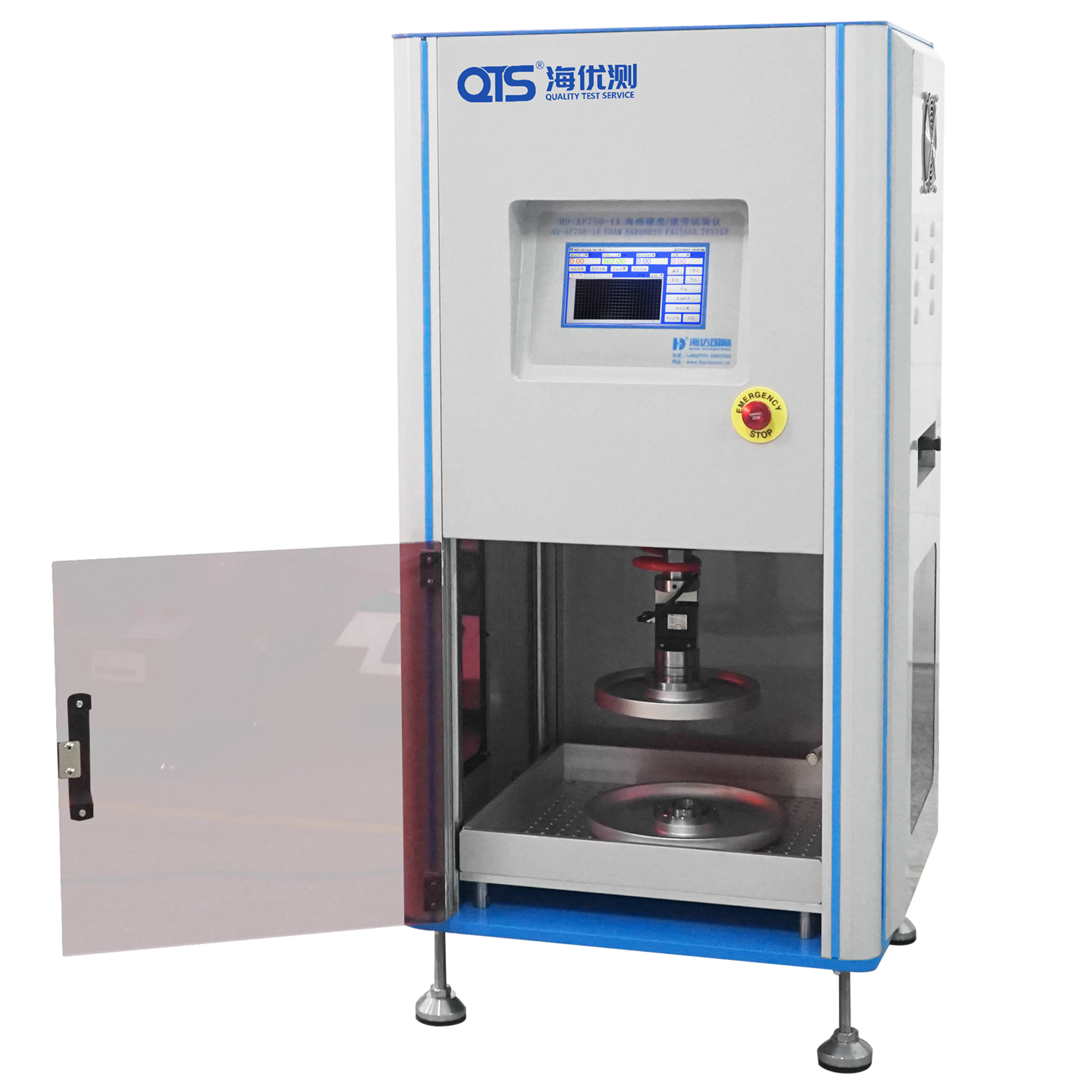

Foam Pounding Fatigue Test Machine
Specification
Test standard
GB/T 12825-2003; GB/T 18941-2003; ISO2439-2008 ;
ISO3385-2014;
ASTM D3574(Point of test 13); GB/T_10807-2006
|
Capacity
|
2KN Load Sensor
|
|
Maximum Sample Size
|
380 * 380 * 150mm (L*W*H)
|
|
Standard Sample
|
GB/ISO: 380 * 380 * 50mm (L*W*H)
ASTM: 380 * 380 * 100mm (L*W*H)
|
|
Test Cycles
|
1~999999
|
|
Test Speed
|
100 mm/min±20mm/min (GB/T 12825-2003, ISO2439-2008. GB/T_10807-2006)
70±5/min (GB/T 18941-2003, ISO3385-2014)
250 mm/min±25mm/min (ASTM D3574)
|
|
Test Stoke
|
180mm
|
|
Dimension
|
600 x 500 x 1080 mm (L*W*H)
|
|
Power
|
850W
|
