Quick Details
-
Warranty(Year):
-
5-Year
-
Color Rendering Index(Ra):
-
97
-
Product Weight（kg）:
-
0.5
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
700-1800
-
Model Number:
-
NC-SP047
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YP Nice
-
Product Name:
-
Embedded Downlights
-
Power:
-
7W/9W/12W/18W
-
Luminous Efficacy:
-
100 lm/W
-
Cutout Size (mm):
-
55/75/95
-
Beam Angle (°):
-
15°/24°/38°
-
Input Voltage:
-
AC85-265V
-
Configuration Information:
-
Bridgelux Chip+Eaglerise driver
-
Emitting Color:
-
2700K-6500K (Single Color)
-
Shape:
-
Round Square Optional
-
Material:
-
Aluminim
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Aluminum
-
Install Style:
-
Embeded
-
Warranty(Year):
-
5-Year
-
Color Rendering Index(Ra):
-
97
-
Product Weight（kg）:
-
0.5
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
700-1800
-
Model Number:
-
NC-SP047
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YP Nice
-
Product Name:
-
Embedded Downlights
-
Power:
-
7W/9W/12W/18W
-
Luminous Efficacy:
-
100 lm/W
-
Cutout Size (mm):
-
55/75/95
-
Beam Angle (°):
-
15°/24°/38°
-
Input Voltage:
-
AC85-265V
-
Configuration Information:
-
Bridgelux Chip+Eaglerise driver
-
Emitting Color:
-
2700K-6500K (Single Color)
-
Shape:
-
Round Square Optional
-
Material:
-
Aluminim
Products Description

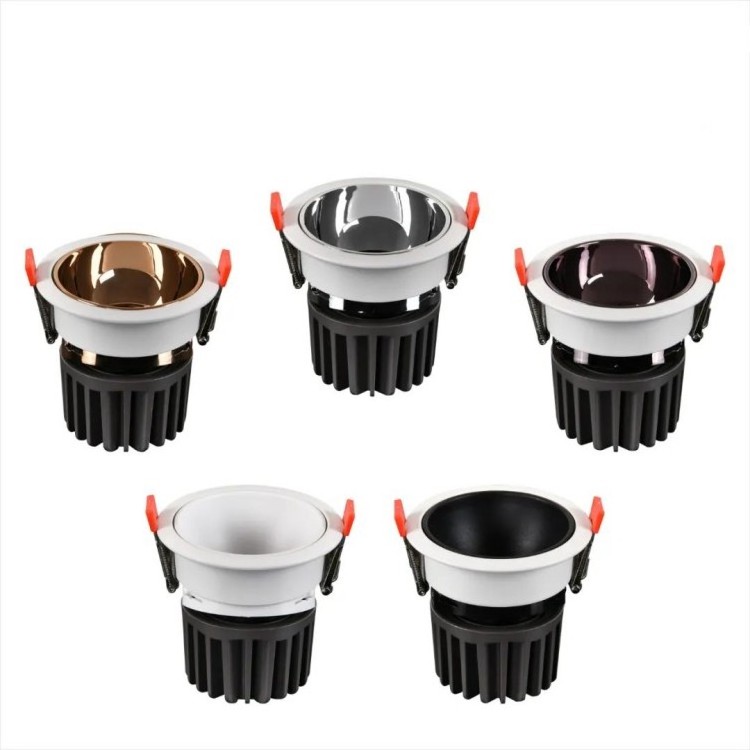

Recessed led downlight
Features
■UGR<16
■
Fixed / adjustable
■H
igh-performance LEDs, high CRI
■O
ptical flexibility, beam angles accuracy
■D
eeply concealed lamp source and anti-glare accessories for visual comfort
■T
he darklight reflector made an effect of "seeing light but don't see the lighting
|
Product name
|
EMBEDDED DOWNLIGHTS
|
|
|
|
|
||||
|
Item No.
|
NC-SP047
|
|
|
|
|
||||
|
Input voltage
|
85-265 V
|
|
|
|
|
||||
|
Luminous efficacy
|
100 lm/W
|
|
|
|
|
||||
|
Low flicker
|
Yes
|
|
Yes
|
|
|
||||
|
UGR
|
< 16
|
|
|
|
|
||||
|
Nominal wattage
|
7W
|
7W
|
9W
|
12W
|
18W
|
||||
|
Diameter (Ф)
|
63mm
|
85mm
|
85mm
|
85mm
|
110mm
|
||||
|
Height
|
68mm
|
67mm
|
70mm
|
80mm
|
88mm
|
||||
|
Cutout (Ф)
|
55mm
|
75mm
|
75mm
|
75mm
|
95mm
|
||||
|
Luminous flux
|
700 lm
|
700 lm
|
900 lm
|
1200 lm
|
1800 lm
|
||||
|
Lamp body material
|
Auminum die-casting
|
|
|
|
|
||||
|
Beam angle
|
15 °/24 °/38 °
|
|
|
|
|
||||
|
Color temperature
|
2700K-6500K (Single Color)
|
|
|
|
|
||||
|
Reflector color
|
Black/White/Bright silver/Gun black/Red golden
|
|
|
|
|
||||
|
Operating mode
|
External LED driver
|
|
|
|
|
||||
|
Configuration
|
Bridgelux Chip+Eaglerise driver
|
|
|
|
|
||||
|
Working temperature
|
-20 to +50C
|
|
|
|
|
||||
|
Lifespan at 25 ℃
|
50000 h
|
|
|
|
|
||||
|
Benefits
|
In addition to standard products, we can also customize your size, color temperature, power function, luminous efficacy of light source, connection method, label style, your logo, packaging and so on.
|
|
|
|
|
||||
