- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yunda
-
Voltage:
-
220V/380V
-
Power:
-
depend on the types
-
Dimension(L*W*H):
-
depend on the types
-
Weight:
-
30000 kg
-
Product name:
-
toilet /tissue paper making machine
-
country::
-
China supplier
-
basic weight::
-
13-42g/㎡
-
Capacity::
-
5-50 T/D
-
Paper width::
-
1575-3600mm
-
After-sales Service Provided::
-
Field installation, commissioning and training
Quick Details
-
Production Capacity:
-
5~50 t/d
-
Product Type:
-
Toilet Tissue Paper
-
Processing Type:
-
toilet tissue paper making machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yunda
-
Voltage:
-
220V/380V
-
Power:
-
depend on the types
-
Dimension(L*W*H):
-
depend on the types
-
Weight:
-
30000 kg
-
Product name:
-
toilet /tissue paper making machine
-
country::
-
China supplier
-
basic weight::
-
13-42g/㎡
-
Capacity::
-
5-50 T/D
-
Paper width::
-
1575-3600mm
-
After-sales Service Provided::
-
Field installation, commissioning and training
Product Description

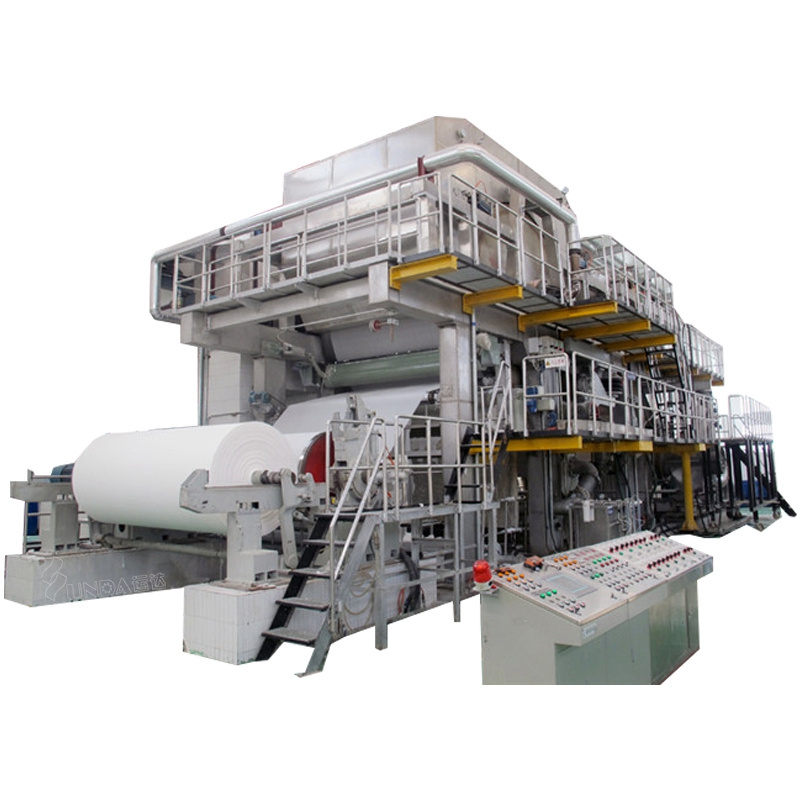

Summary of toilet tissue paper machine
The toilet paper machine can use waste paper (such as waste books, newsprint, waste office paper, waste paper edges from printing plants), virgin pulp as a material to make high-quality toilet paper, and the finished product can be small tissue rolls, napkins, facial tissue , kitchen towel.
|
Main specification
|
|
|
|
|
||||
|
Product
|
Toilet tissue，Facial tissue，Kitchen towel，Hand towel，etc
|
|
|
|
||||
|
Raw material
|
Virgin pulp，Bamboo pulp，Bagasse pulp，Straw pulp and De-inked pulp
|
|
|
|
||||
|
Machine type
|
High-speed toilet paper machine
(2850-5600mm)
|
|
Low speed toilet paper machine
(1092-3480mm)
|
|
||||
|
Design speed
|
900-1600m/min
|
|
100-250m/min
|
|
||||
|
Operating speed
|
300-1500m/min
|
|
80-220m/min
|
|
||||
|
Capacity
|
35-130t/d
|
|
5-30t/d
|
|
||||
|
Basic weight
|
13-45g/m²
|
|
13-40g/m²
|
|
||||
|
Main equipments
|
|
|
|
|
||||
|
NO.
|
Item
|
Qty(set)
|
|
|
||||
|
1
|
Cylinder mould
|
1
|
|
|
||||
|
2
|
Couch roller
|
1
|
|
|
||||
|
3
|
Cylinder vat
|
1
|
|
|
||||
|
4
|
Vacuum suction box
|
4
|
|
|
||||
|
5
|
Dryer section
|
1
|
|
|
||||
|
6
|
Touch roller
|
1
|
|
|
||||
|
7
|
Dryer scraper
|
2
|
|
|
||||
|
8
|
Guide roller
|
8
|
|
|
||||
|
9
|
Stretch roller
|
1
|
|
|
||||
|
10
|
Paper reeling machine
|
1
|
|
|
||||
|
11
|
Pneumatic corrector
|
1
|
|
|
||||
|
12
|
Electric tensioner
|
1
|
|
|
||||
|
13
|
High pressure movable water spraying pipe
|
1
|
|
|
||||
|
14
|
Fixed spray pipe
|
2
|
|
|
||||
|
15
|
Walkway
|
1
|
|
|
||||
|
16
|
Frame
|
1
|
|
|
||||
|
17
|
Base part
|
1
|
|
|
||||
|
18
|
Distance seting tube
|
1
|
|
|
||||
|
19
|
Thin oil lubrication station
|
1
|
|
|
||||
|
20
|
Transmission section
|
2
|
|
|
||||
|
21
|
Electrical control section
|
1
|
|
|
||||
|
22
|
Boiler section
|
1
|
|
|
||||
|
23
|
Spare part
|
5
|
|
|
||||
