Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shangxin
-
Dimension(L*W*H):
-
65*40*54cm
-
Weight:
-
31.5 KG
-
Working Temperature Range:
-
-30 - 40 ℃
-
Product name:
-
Electric air heating
-
Usage:
-
High Temperature Electric Heating
-
Application:
-
Industry Heating Process
-
Power:
-
5kw/10kw/15kw/20kw/30kw/40kw/50kw
-
Color:
-
Customer Requirements
-
Voltages available:
-
380v/50hz
-
Function:
-
Fast Heating
-
Heating medium:
-
Compressed Air
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
220/380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shangxin
-
Dimension(L*W*H):
-
65*40*54cm
-
Weight:
-
31.5 KG
-
Working Temperature Range:
-
-30 - 40 ℃
-
Product name:
-
Electric air heating
-
Usage:
-
High Temperature Electric Heating
-
Application:
-
Industry Heating Process
-
Power:
-
5kw/10kw/15kw/20kw/30kw/40kw/50kw
-
Color:
-
Customer Requirements
-
Voltages available:
-
380v/50hz
-
Function:
-
Fast Heating
-
Heating medium:
-
Compressed Air
Product Description

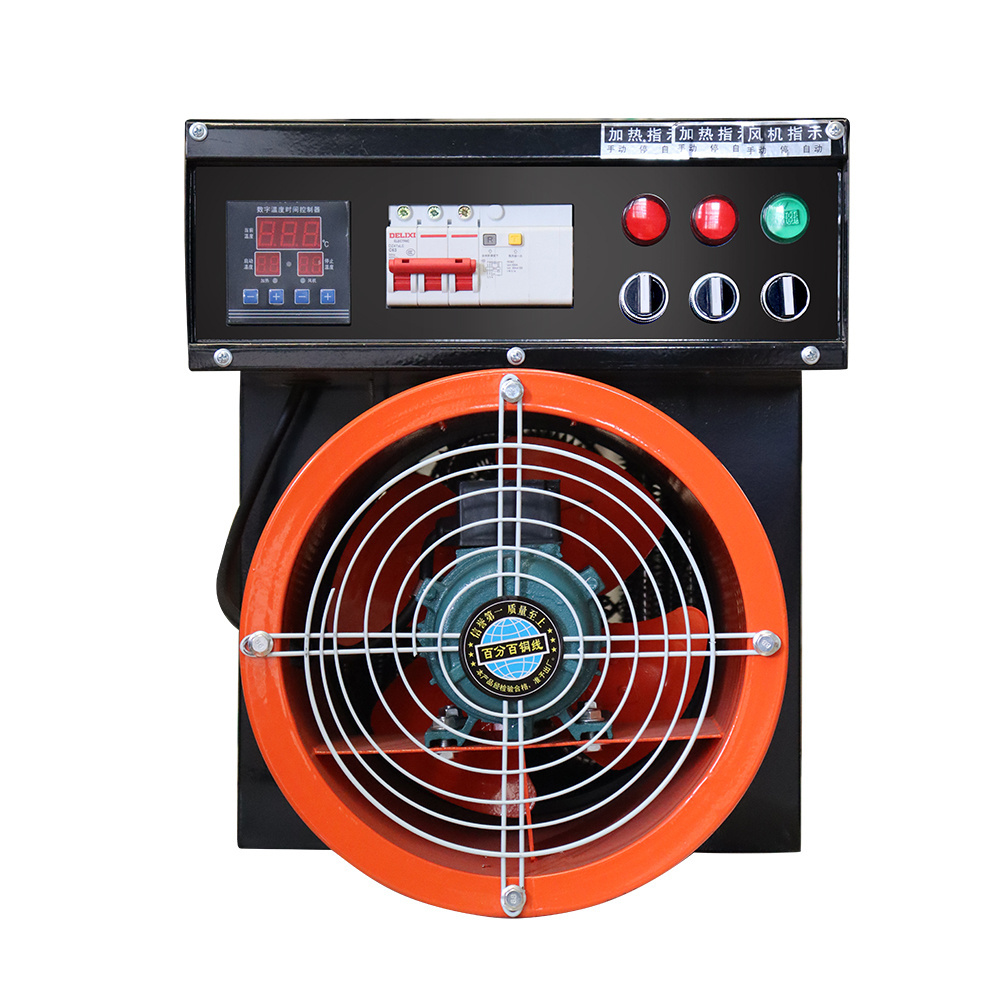

Electrical air heater 15kw coil Fan heaters air duct heaters for Factory warehouse poultry house greenhouse
Product Feature
Electric heating heater is the process of converting electric energy into heat energy. It is a kind of high-quality electric
heating equipment, which is used for the heating, heat preservation and heating of the flowing gaseous medium.When the heating medium under the action of pressure, through the electric heater heating using the principle of thermodynamics evenly take away the electric heating elements produced in the work of the huge heat, so that the temperature of the heating medium to meet the user's requirements.
heating equipment, which is used for the heating, heat preservation and heating of the flowing gaseous medium.When the heating medium under the action of pressure, through the electric heater heating using the principle of thermodynamics evenly take away the electric heating elements produced in the work of the huge heat, so that the temperature of the heating medium to meet the user's requirements.
|
Model
|
CD-5KW
|
CD-10KW
|
CD-15KW
|
CD-20KW
|
CD-30KW
|
CD-40KW
|
CD-20KW
|
|
Heating Power(KW)
|
5
|
10
|
15
|
20
|
30
|
40
|
50
|
|
Motor Power(W)
|
90
|
150
|
150
|
370
|
750
|
1500
|
1500
|
|
Voltage
|
220/380V
|
220/380V
|
220/380V
|
220/380V
|
220/380V
|
220/380V
|
220/380V
|
|
Rated Speed
(rpm/min)
|
1450
|
1450
|
1450
|
2800
|
2800
|
2800
|
2800
|
|
Air Flow(m³/h)
|
1000
|
2000
|
2000
|
3000
|
5870
|
11000
|
11000
|
|
Shell Material
|
Iron plate spraying
|
Iron plate spraying
|
Iron plate spraying
|
Iron plate spraying
|
Iron plate spraying
|
Iron plate spraying
|
Iron plate spraying
|
|
Shell Material
|
20-50
|
100-200
|
150-250
|
200-350
|
300-450
|
300-450
|
500-1000
|
|
Heating tube material
|
Stainless steel fins
|
Stainless steel fins
|
Stainless steel fins
|
Stainless steel fins
|
Stainless steel fins
|
Stainless steel fins
|
Stainless steel fins
|
|
temperature probe
|
5m probe wire
|
15m probe wire
|
15m probe wire
|
15m probe wire
|
15m probe wire
|
15m probe wire
|
15m probe wire
|
|
Dimension(cm)
|
52*40*50
|
65*40*54
|
65*40*54
|
76*41*53
|
96.5*46*65
|
106*54.5*72
|
113*55*72
|
|
Weight(kg)
|
15
|
30.5
|
31.5
|
35
|
48
|
50
|
60
|
Relay
The interior is smooth,long life,simple and convenient operation
Electric heat pipe
High quality electric heating tube,fast heating,stainless steel electric heating tube plus heat sink fin,increase heat sink area and fast heating
Exhaust fan
Excellent fan blade spray galvanized sheet,corrosion resistance,long service life
Usage Scenario
Electric air fan heater is used in
breeding farm, vegetable greenhouse, workshop, workshop, flower nursery, drying.
