Quick Details
-
Features:
-
High efficiency
-
Warranty:
-
1 Year
-
Weight (KG):
-
7
-
Marketing Type:
-
New Product 2023
-
Lead:
-
60/75mm
-
Repetitive positioning accuracy:
-
±0.05mm
-
Effective stroke:
-
500mm
-
Movement speed:
-
≤2000mm/s
-
Horizontal load:
-
≤8KG
-
Sidemounted load:
-
≤6KG
-
Vertical load:
-
≤3KG
-
Performance:
-
High Running Performance
-
Control axis:
-
1/2/3/4 Linear Axis
-
Guide rail color:
-
silvery
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUFENGJK
-
Application:
-
Industrial machinery and equipment
-
Features:
-
High efficiency
-
Warranty:
-
1 Year
-
Weight (KG):
-
7
-
Marketing Type:
-
New Product 2023
-
Lead:
-
60/75mm
-
Repetitive positioning accuracy:
-
±0.05mm
-
Effective stroke:
-
500mm
-
Movement speed:
-
≤2000mm/s
-
Horizontal load:
-
≤8KG
-
Sidemounted load:
-
≤6KG
-
Vertical load:
-
≤3KG
-
Performance:
-
High Running Performance
-
Control axis:
-
1/2/3/4 Linear Axis
-
Guide rail color:
-
silvery

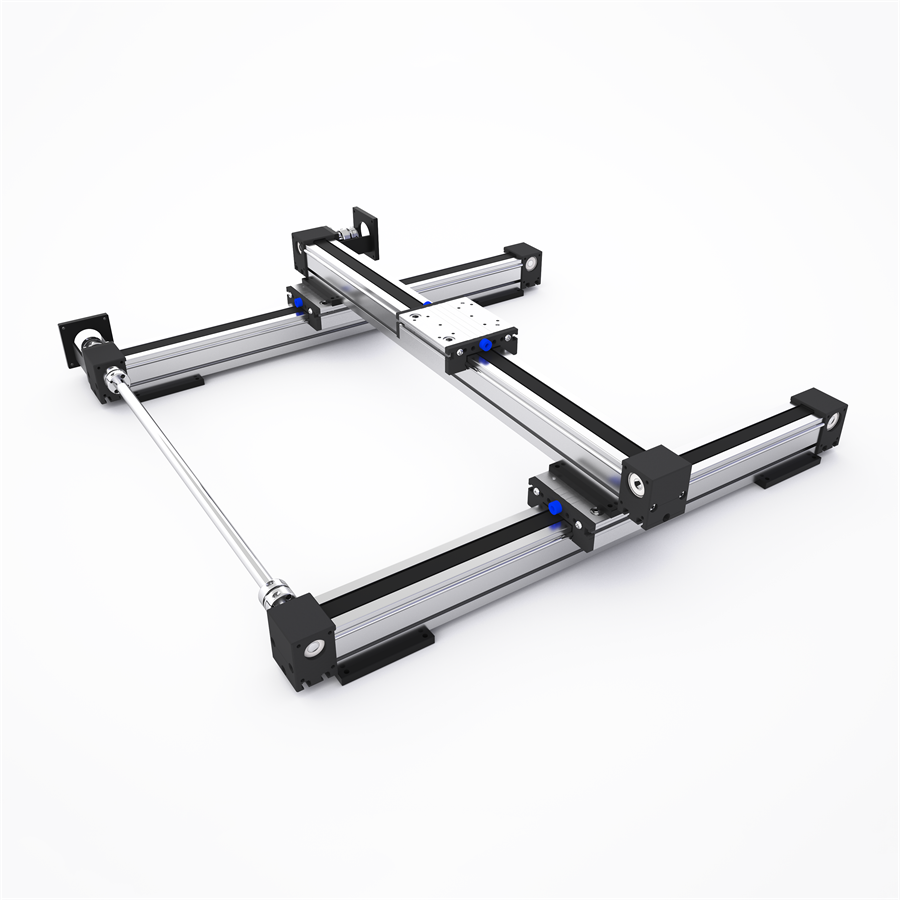

The characteristics of the WDT series dual axis core linear module are as follows
1. High precision: capable of achieving high-precision and highly repetitive movements.
2. Multifunctional: Suitable for various industrial applications.
3. Adjustability: Suitable modules, adjustment methods, and control systems can be designed for different applications.
4. Space saving: Compared to other linear motion modules, the dual axis core linear module can save space while ensuring high-precision motion.
Recommend Products
Product Paramenters
If you need to install an additional motor, please provide the motor drawing and we will customize a dedicated motor mounting bracket for you.
Please contact us, we will provide you with more detailed 3D drawings.
|
Valid itinerary (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
|
Total length of the module
|
318
|
418
|
518
|
618
|
718
|
818
|
918
|
1018
|
1118
|
|
Weight (KG)
|
1.63
|
1.85
|
2.07
|
2.29
|
2.51
|
2.73
|
2.95
|
3.17
|
3.39
|
Length weight table
The weight in the table does not include the weight of accessories.
|
Valid itinerary (mm)
|
1000
|
1100
|
1200
|
1300
|
1400
|
1500
|
1600
|
1700
|
1800
|
|
Total length of the module
|
1218
|
1318
|
1418
|
1518
|
1618
|
1718
|
1818
|
1918
|
2018
|
|
Weight (KG)
|
3.61
|
3.83
|
4.05
|
4.27
|
4.49
|
4.71
|
4.93
|
5.15
|
5.37
|
|
Specification selection of synchronous belt guide rail
|
|
|
|
|
|
|||||
|
Model
|
Guide rail size(mm)
|
Lead(mm)
|
Horizontal load
|
Side-mounted load
|
Vertical load
|
|||||
|
WDT3030
|
30(W)*30(H)
|
60
|
≤3KG
|
≤2KG
|
≤1KG
|
|||||
|
WDT4040
|
40(W)*40(H)
|
75
|
≤6KG
|
≤6KG
|
≤3KG
|
|||||
|
WDT4045
|
40(W)*45(H)
|
60/75
|
≤8KG
|
≤6KG
|
≤3KG
|
|||||
|
WDT4545
|
45(W)*45(H)
|
75
|
≤12KG
|
≤8KG
|
≤5KG
|
|||||
|
WDT5050
|
50(W)*50(H)
|
100
|
≤20KG
|
≤12KG
|
≤8KG
|
|||||
|
WDT5050A
|
50(W)*50(H)
|
100
|
≤20KG
|
≤12KG
|
≤8KG
|
|||||
|
WDT6060
|
60(W)*60(H)
|
125
|
≤36KG
|
≤20KG
|
≤12KG
|
|||||
|
WDT8080
|
80(W)*80(H)
|
150
|
≤60KG
|
≤35KG
|
≤20KG
|
|||||
