Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
CNI
-
Dimension(L*W*H):
-
157.5 (L) X 77(W) X 60 (H) mm3
-
Weight (KG):
-
5 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Repeat positioning accuracy:
-
±1μm
-
Power consumption:
-
<200W
-
Engraving speed:
-
2mm/s
-
Minimum character height:
-
40um
-
Minimum width of marking:
-
5um
-
Cooling way:
-
Air cooled
Quick Details
-
Engraving Area:
-
>=40x5um
-
Laser Type:
-
YAG
-
Engraving Speed:
-
2mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
CNI
-
Dimension(L*W*H):
-
157.5 (L) X 77(W) X 60 (H) mm3
-
Weight (KG):
-
5 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Repeat positioning accuracy:
-
±1μm
-
Power consumption:
-
<200W
-
Engraving speed:
-
2mm/s
-
Minimum character height:
-
40um
-
Minimum width of marking:
-
5um
-
Cooling way:
-
Air cooled
Diamind Marking Laser, Diamond waist line marking code, LOGO, scribe

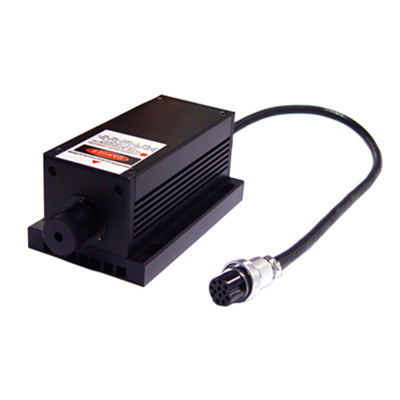

CNI can offer laser source for diamond marking:
| Features |
| • Good laser beam quality, small focusing spot |
| • Short material interaction time and minimal heat effect |
| • Repeat engraving, high positioning accuracy |
| • Nicely marking, anti-counterfeiting micro engraving |
| • Minimum character height 40 um |
| • Minimum marking line width 5 um |
| Applications |
| • Diamond waist line marking code, LOGO |
| • Jewelry factory, diamond wholesalers |
| • Jewelry sales outlets, jewelry testing industry |
The total system of diamond marking is available on customers' request.
Features
-
Small volume, easy of use;
-
High micro marking speed, fine graphics, fine lines;
-
Repeat carving, make up carving, select carving, high repeat positioning accuracy.
Application Industries:
-
Suitable for the industries of a jewelry factory, diamond wholesalers and jewelry testing industry, which can accurately engraved on the diamond girdle such as product number or certificate number, LOGO, graphics, personalized imprint.
|
Repeat positioning accuracy |
±1μm |
|
Maximum marking line speed |
2mm/s |
|
Minimum marking character height |
40um |
|
Minimum marking line width |
5um |
|
Cooling method |
Air cooled |
|
Power consumption |
<200W |
|
Dimensions |
510mm(L)*415mm(W)*345mm(H) |
|
Weight |
30kg |
|
Lifetime |
10000 hours |
|
Warranty |
1 year |
