Quick Details
-
Output Speed:
-
3~700rpm
-
Warranty:
-
1 years
-
Weight (KG):
-
20 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHBNS
-
Gear Material:
-
20CrMnTi
-
Housing Material:
-
Aluminum / Cast Iron
-
Shaft:
-
40Cr
-
Gear precision:
-
DIN6
-
Heat treatment:
-
Carburizing and Quenching
-
Gear hardness:
-
HRC58~62
-
Shaft diameter:
-
22/28/32/40/50mm
-
Motor:
-
100% copper
-
Color:
-
Black ,BLUE
-
Power range:
-
180w ~4000W
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
5~1320
-
Input Speed:
-
less than 2000RPM
-
Output Speed:
-
3~700rpm
-
Warranty:
-
1 years
-
Weight (KG):
-
20 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHBNS
-
Gear Material:
-
20CrMnTi
-
Housing Material:
-
Aluminum / Cast Iron
-
Shaft:
-
40Cr
-
Gear precision:
-
DIN6
-
Heat treatment:
-
Carburizing and Quenching
-
Gear hardness:
-
HRC58~62
-
Shaft diameter:
-
22/28/32/40/50mm
-
Motor:
-
100% copper
-
Color:
-
Black ,BLUE
-
Power range:
-
180w ~4000W

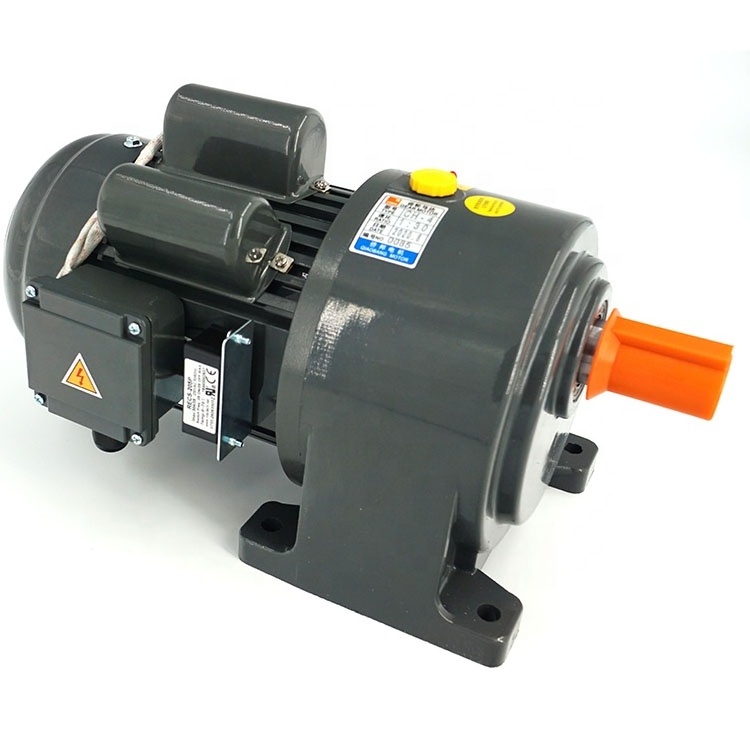

Products Description
|
Brand
|
CHBNS
|
|
Place of origin
|
ZHEJIANG,CHINA
|
|
Types
|
GLW/GHW (Aluminum body) ; GHW/GHF (Cast Iron Body)
|
|
Model
|
G18 / G22 / G28 / G32 / G40 / G50
|
|
Gear Ratio
|
3 ~200
|
|
Installation
|
Foot mounted / Flange mounted
|
|
Motor power
|
0.1~3.7KW (1/8HP -5HP)
|
|
Motor Type
|
Single phase / Three Phase
|
|
Gear Hardness & Precision
|
HRC58 ~62 (DIN 6)
|
|
Payment method
|
L/C ,D/P .T/T .WU ,MONEYGRAM
|
|
Sea port
|
SHANGHAI ,NINGBO
|
|
Supply Capacity
|
2000 SETS/MONTH
|
|
Estimated delivery time
|
Less than 15 days
|
|
Packing
|
CARTON BOX , PLYWOOD CASES
|
