Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Gross Vehicle Weight:
-
≤5T
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Online support, Free spare parts
-
Brand Name:
-
kunke
-
Place of Origin:
-
Yunnan, China
-
Engine Brand:
-
None
-
Cylinders:
-
None
-
Gear Box Brand:
-
None
-
Forward Shift Number:
-
1
-
Dimensions (L x W x H) (mm):
-
3800*1380*1625mm
-
Cargo Tank Dimension:
-
2000X1300X330mm
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
0
-
Market Segement:
-
Urban construction muck transportation
-
Gross Vehicle Weight:
-
≤5T
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Online support, Free spare parts
-
Brand Name:
-
kunke
-
Place of Origin:
-
Yunnan, China
-
Engine Brand:
-
None
-
Cylinders:
-
None
-
Gear Box Brand:
-
None
-
Forward Shift Number:
-
1
-
Dimensions (L x W x H) (mm):
-
3800*1380*1625mm
-
Cargo Tank Dimension:
-
2000X1300X330mm
Products Description

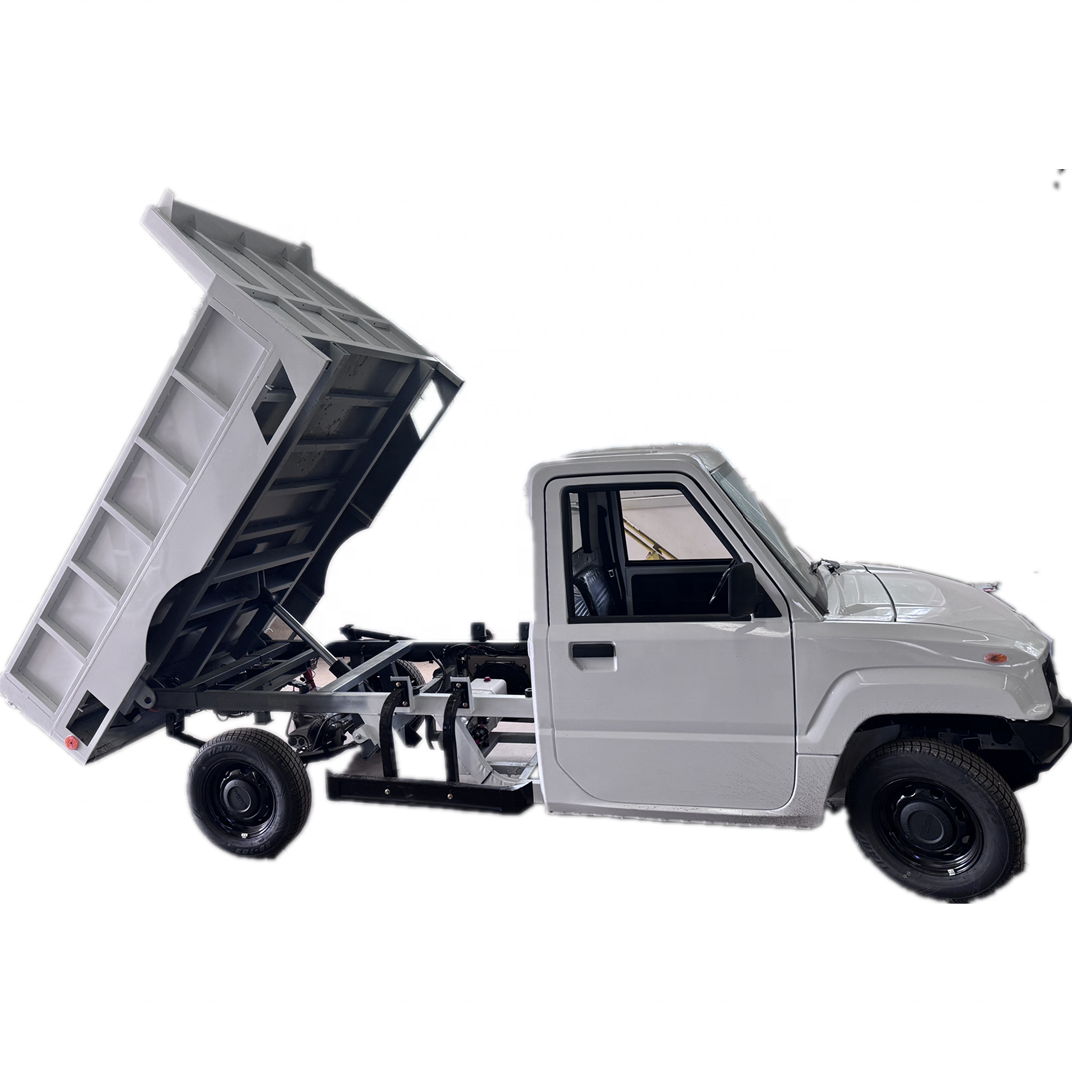

Classic Dump Truck
Utility pickup truck
1.100% pure electric 2. 500 KGS payload
3.40km/h max speed
4. 120 km driving range
5. 1 ton towing capacity
6.
Lifting angle (°):50
Product Paramenters
|
Vehicle Mode
|
Classic-Dump truck
|
|
L×W×H（mm）
|
3800×1380×1625
|
|
Wheelbase （mm）
|
2650
|
|
Front/Rear wheel track (mm)
|
1195/1185
|
|
Front/Rear Suspension (mm)
|
455/695
|
|
Curb Weight （kg）
|
820
|
|
Loading Weight （kg）
|
500
|
|
Total Weight （kg）
|
1450
|
|
Max speed（km/h）
|
40
|
|
Maximum climbing gradient
|
25%
|
|
Minimum ground clearance (m)
|
≤150
|
|
Maximum angle
|
36.3(Outer wheel）/42(Inner wheel）
|
|
Approach angle (°)
|
≥55
|
|
Departure（°）
|
≥45
|
|
Power Battery(V/Ah）
|
72V ,100Ah lead acid/73.6v lithium battery
|
|
Charging time（20%-100%）（h）
|
6-8
|
|
Rated power（kW）
|
5kw
|
|
|
|
Stamped all-metal body, sturdy and durable, with good impact resistance, ensuring driving safety
Good trafficability characteristic
.
Max sideward heeling angle：35°
Maximum grade ability:25°
.
Min ground clearance:150mm
Front Storage Box
Multi functional storage box,increasing the storage space
INTEGRATED CENTRALCONSOLE
The integrated central console has large space and gives a good driving and riding experence
7“MP5 DISPLAY DESIGN
Multimedia system includes clock,, radio, USB player etc.
Mobile Phone Bracket with USB Interface
Equipped with mobile phone holder
navigation
easier
, with the USB interface,keeping your phone full charging
Cheap usage cost and Maintenance Cost
Details Images
Optional Configuration
Related products
About Us
HUBEI HAOJING INTERNATIONAL TRADE CO., LTD was founded in 2009,mainly exports and imports auto accessories and repairs,which is an established and trustworthy export enterprise. In 2015 ,we expanded the scale and invested in the production of electric vehicles.Currently, it is an enterprise that integrates the production of electric vehicles and export trade ,focusing on opening up the international market,has more than 16 years developing the international market experience on Alibaba.There are department of technical ,foreign trade , truck parts management ,warehousing, international transportation , etc, which are serving the entire export process management system.
The mini pickup truck has obtained European L7E certificate and the US DOT certification ,which is our featured and best-selling products now .It is fully following the four major production processes ： stamping, welding, electrophoresis, and final assembly to produce in accordance with the vehicle specification level manufacturing standards.And in March 2021,the manufacturer successfully obtained the World Manufacturing Plant Identification Code certificate,certificate number LA0/AKK.So far,we have exported in bulk to countries such as North America, Europe, Southeast Asia, South America, Australia, most of those customers are our distributor,with reliable quality and attentive service,the mini pickup truck has won the support and recognition of more and more foreign customers
