Quick Details
-
Production Capacity:
-
1m2/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Datang
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9800*7000*5200mm
-
Weight:
-
11000 kg, 11000kg
-
Marketing Type:
-
Hot Product 2023
-
Wire Diameter:
-
8-11mm
-
Wire Length:
-
21350mm
-
Wire Speed:
-
0-40m/s
-
Lifting Stroke:
-
2200mm
-
Work Tabke Rotation:
-
360 degrees
-
Max. Processing Size:
-
4000*2000*2100mm
-
Total Power:
-
20.09kW
-
Productivity:
-
1-2m2/h Marble, 0.5-1m2 Granite
-
Dimension:
-
11000*3100*2400mm
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
7.5/11/15kw
-
Cutting thickness (max):
-
2100mm
-
Production Capacity:
-
1m2/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Datang
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9800*7000*5200mm
-
Weight:
-
11000 kg, 11000kg
-
Marketing Type:
-
Hot Product 2023
-
Wire Diameter:
-
8-11mm
-
Wire Length:
-
21350mm
-
Wire Speed:
-
0-40m/s
-
Lifting Stroke:
-
2200mm
-
Work Tabke Rotation:
-
360 degrees
-
Max. Processing Size:
-
4000*2000*2100mm
-
Total Power:
-
20.09kW
-
Productivity:
-
1-2m2/h Marble, 0.5-1m2 Granite
-
Dimension:
-
11000*3100*2400mm

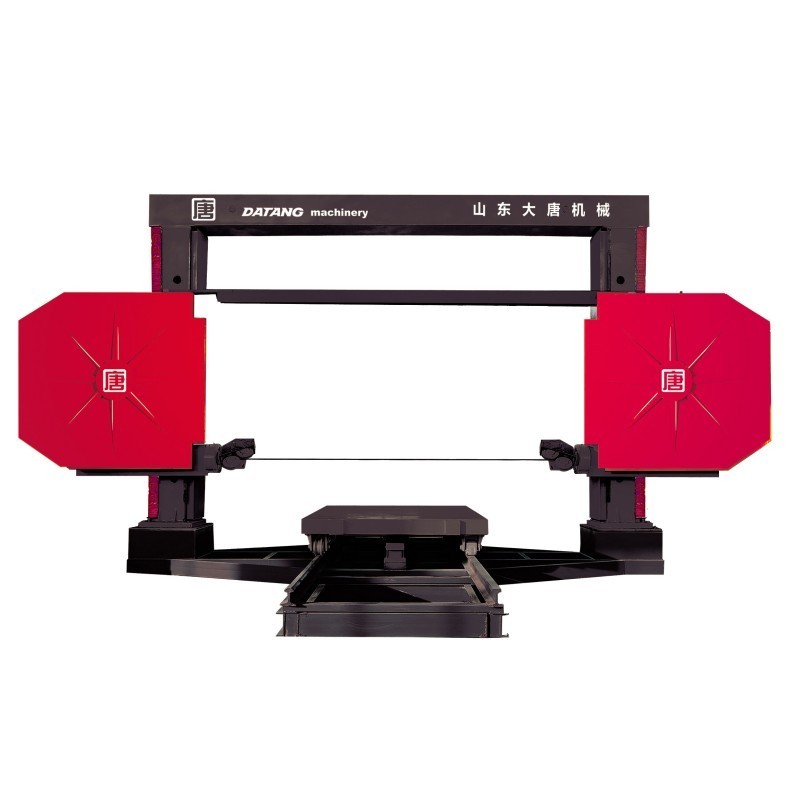

Datang DTSJ-1500/1800/2200 Diamond Wire Saw Stone Block Cutting Machine
CNC System · Stable Structure · 4 Axis Linkage · 360 Degrees Trolley · Speed Control · 8-11mm Wire Diameter · Multi Function · High Productivity · High Accuracy · Stable Performance · Easy Operation · Easy Maintenance · Arc Plate · Solid Cylinder · Hollow Cylinder · Roman Column · Solid Line · Number & Letter · Customizations
| Model | DTSJ-1500 | DTSJ-1800 | DTSJ-2200 |
| Wire Diameter | 8-11mm | 8-11mm | 8-11mm |
| Wire Length | 16500mm | 18500mm | 21350mm |
| Wire Speed | 0-40m/s | 0-40m/s | 0-40m/s |
| Lifting Stroke | 1600mm | 1900mm | 2200mm |
| Work Table Rotation | 360 degrees | 360 degrees | 360 degrees |
| Max. Processing Size | 3000*2000*1500mm | 3600*2000*1800mm | 4000*2000*2100mm |
| Productivity |
1-2m2/h Marble 0.5-1m2/h Granite |
1-2m2/h Marble 0.5-1m2/h Granite |
1-2m2/h Marble 0.5-1m2/h Granite |
| Total Power | 15.09kW | 15.09kW | 20.09kW |
| Dimension | 7500*6000*3800mm | 8800*6800*4800mm | 9800*7000*5200mm |
| Weight | 7500kg | 9500kg | 15000kg |
