Quick Details
-
Surface Treatment:
-
Chrome Plated
-
Outer Diameter:
-
customize
-
Size:
-
customize
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZP-aluminum
-
Model Number:
-
ZP-FD001
-
Product name:
-
aluminum rain water drain grate
-
Inner material:
-
Aluminum Alloy
-
Grade:
-
6061 T6
-
Color:
-
Silver/black/colorful
-
Certification:
-
ISO9001
-
Finish:
-
various anodizing/polishing/brushing/coating
-
Surface treatment:
-
Anodized/Polished/Brushed Finish
-
Thickness:
-
0.8-5.0mm
-
Deep process:
-
Under CNC
-
Container load:
-
120 wooden cases/20', 270 wooden cases/40HQ
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Surface Treatment:
-
Chrome Plated
-
Outer Diameter:
-
customize
-
Size:
-
customize
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZP-aluminum
-
Model Number:
-
ZP-FD001
-
Product name:
-
aluminum rain water drain grate
-
Inner material:
-
Aluminum Alloy
-
Grade:
-
6061 T6
-
Color:
-
Silver/black/colorful
-
Certification:
-
ISO9001
-
Finish:
-
various anodizing/polishing/brushing/coating
-
Surface treatment:
-
Anodized/Polished/Brushed Finish
-
Thickness:
-
0.8-5.0mm
-
Deep process:
-
Under CNC
-
Container load:
-
120 wooden cases/20', 270 wooden cases/40HQ

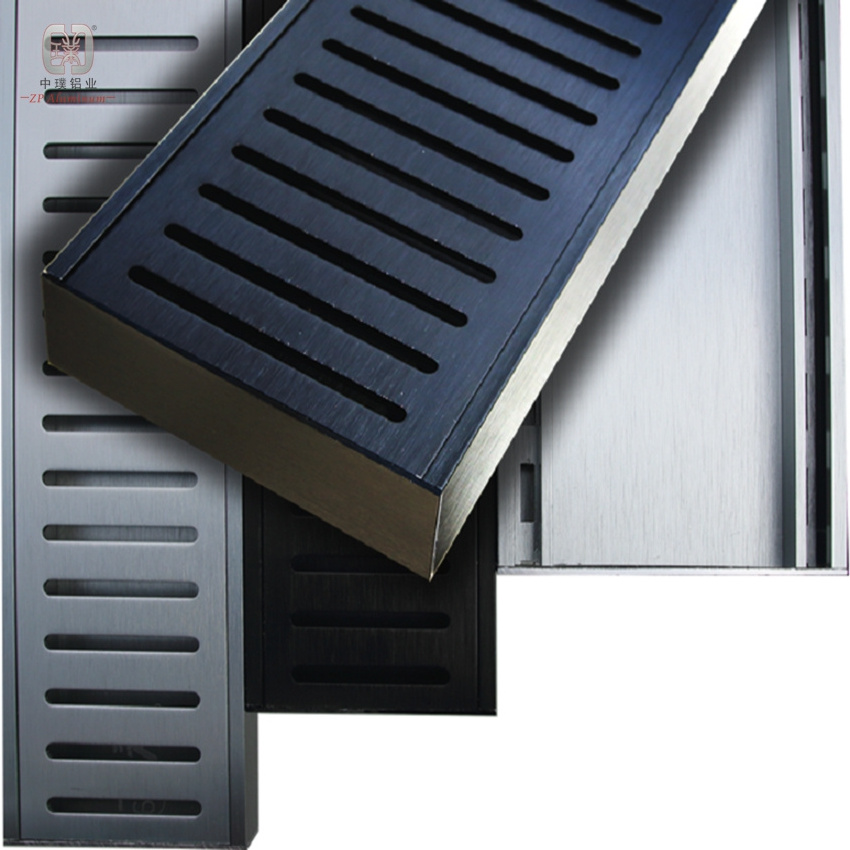

Custom Aluminum Drain Grate
• Rust proof • Light weight • Good quality • Different colour choices to suit application
• Top grate easily removed for cleaning • Good drainage • Easy to cut to desired length
1、
Aluminum Drain Grate
(With Vertical Slots)
|
Width
|
80mm&customized
|
|
Depth
|
220mm&customized
|
|
Slots
|
42mm long × 4mm wide × 9mm spaced &customized
|
|
Surface treatment
|
brushed and anodized finish
|
2、
Aluminum Drain Grate(Normal and Wide)
(with horizontal and round slots)
(with horizontal and round slots)
Compare
|
Width
|
normal: 80mm&customized
wider: 110mm&customized |
|
Depth
|
normal: 220mm&customized
wide: 260mm&customized |
|
Horizontal slots
|
mormal: 42mm long × 4mm wide × 10mm spaced
wide: 72mm long × 4mm wide × 10mm spaced |
|
Round slots
|
diameter:4mm, 3mm spaced to horizontal slots
|
|
Surface treatment
|
brushed finish&customized
|
3、Insert Floor Drain (with vertical slots)
|
Width
|
110mm&customized
|
|
Depth
|
140mm(from the bottom to the top of the upper lid)
|
|
slots
|
15mm long × 4mm wide × 10mm spaced
|
|
Surface treatment
|
brushed finish
|
Cut grate to desired length.
Tip: Cut angles first before you cut the grate to the length you need.
INSTRUCTIONS OF CUTTING & ASSEMBLY
1. Cut the bottom tray 2mm shorter than desired length to allow end caps to be fitted.
2. Cut the top grate 1mm shorter than the bottom tray to allow for easy install and removal of top grate.
3. Using a 40mm or 50mm hole saw, drill out drainage hole in the bottom tray only, at the required position depending on the location of the waste pipe.
4. Insert the end caps into the bottom tray and secure with a bead of silicone on the outside of the tray.
5. Place silicone around the lip of the pop waste and secure to the drilled hole on the underside of the bottom tray.
