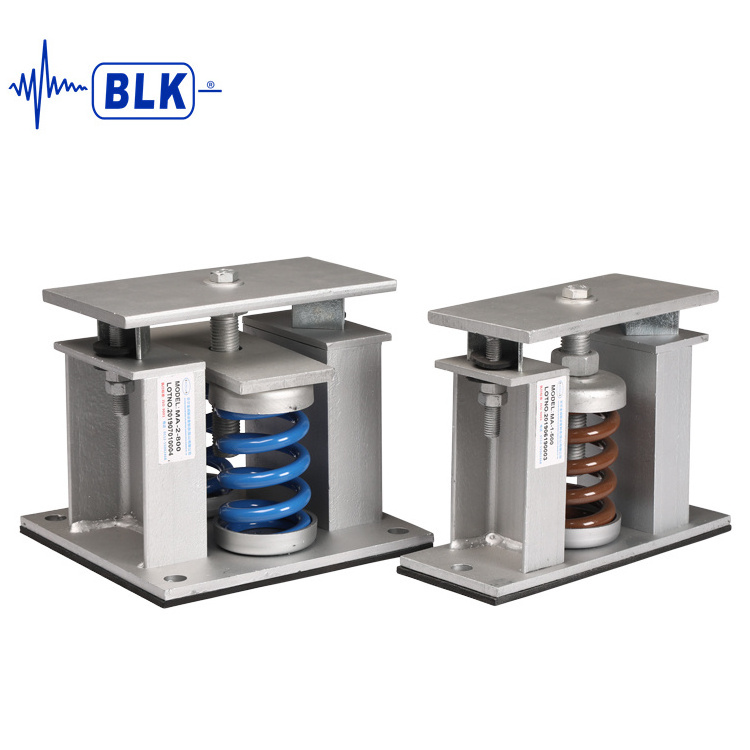

New Steel Spring Mount Vibration Isolator Shock Absorber for Pump Compressor
New Steel Spring Mount Vibration Isolator Shock Absorber for Pump Compressor
New Steel Spring Mount Vibration Isolator Shock Absorber for Pump Compressor
New Steel Spring Mount Vibration Isolator Shock Absorber for Pump Compressor
New Steel Spring Mount Vibration Isolator Shock Absorber for Pump Compressor
New Steel Spring Mount Vibration Isolator Shock Absorber for Pump Compressor
New Steel Spring Mount Vibration Isolator Shock Absorber for Pump Compressor
New Steel Spring Mount Vibration Isolator Shock Absorber for Pump Compressor

New Steel Spring Mount Vibration Isolator Shock Absorber for Pump Compressor

FOB Reference Price: Get Latest Price
≥4 Pieces
US $13.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Core Components:
Spring
Product name:
Anti Vibration Spring Mounts
Material:
Galvanized Steel
Load capacity:
100~9000kg
Application:
Chillers,Water cooling tower, Pump, Air conditioning,Exhaust fan
Certificate:
ISO9001
Function:
Vibration Attenuation
Installation:
Floor Standing
Rated Deflection:
25mm
Spring Rate:
4~20kg/mm
Place of Origin:
China

Quick Details

Brand Name:
BELLKING
Weight (KG):
21
Brand:
BELLKING
Core Components:
Spring
Product name:
Anti Vibration Spring Mounts
Material:
Galvanized Steel
Load capacity:
100~9000kg
Application:
Chillers,Water cooling tower, Pump, Air conditioning,Exhaust fan
Certificate:
ISO9001
Function:
Vibration Attenuation
Installation:
Floor Standing
Rated Deflection:
25mm
Spring Rate:
4~20kg/mm
Place of Origin:
China
Product Description


  • BENEFITS

● The spring is designed with low natural frequency value and is treated with ED and paint.
● Springs are heat treated and stress elimination treatment, long service life.
● Body adopts Dak rust treatment, load deflection 25mm.
● Bottom anti - slip and anti - shock bolt design, high safety.
● The installation is simple and the height and level can be adjusted according to the actual need.
● Can eliminate mechanical structure vibration, and protect and prolong mechanical life.



APPLICATIONS

● All kinds of heavy machinery.

● Water Chilling Units , cooling water tower.

● Fire pump and exhaust fan.

● Generator, air compressor.
Size Information
Spec
Dimensions(mm)

Mounting Bolt
L
W
L1
W1
A
B
H
φBD
Mounting Bolt
MA-1
260
100
210
100
230
0
200
16




M12
MA-2
235
220
235
120
195
180
200
16
M12
MA-4
320
165
320
165
290
135
220
14
MA-6
400
170
400
170
370
140
220
18
MA-9
420
250
420
250
384
214
220
18
Type
Rated Capacity(kg)
Spring Rate (kg/mm)
Rated Deflection (mm)
Color Code
MA-1-100
90-110
4.2
25
Yellow
MA-1-200
160-210
7.6
25
Green
MA-1-300
220-320
11.4
25
Red
MA-1-400
360-430
15.2
25
Blue
MA-1-500
470-530
19.2
25
Brown
MA-1-600
530-650
22.8
25
Gray
MA-1-700
650-700
26.6
25
White
MA-1-850
700-850
33.6
25
Khaki
MA-1-1000
850-1000
38.0
25
Blackish green
MA-2-800
700-850
30.4
25
Blue
MA-2-1000
950-1050
38.3
25
Brown
MA-2-1200
1050-1250
45.2
25
Gray
MA-2-1400
1250-1400
53.2
25
White
MA-2-1700
1400-1700
68.0
25
Khaki
MA-2-2000
1850-2150
76.5
25
Blackish green
MA-4-1200
880-1300
45.6
25
Red
MA-4-1600
1450-1700
60.8
25
Blue
MA-4-2000
1800-2000
76.6
25
Brown
MA-4-2400
2000-2400
91.2
25
Gray
MA-4-2800
2400-2800
106.4
25
White
MA-4-3400
2800-3400
136.0
25
Khaki
MA-4-4000
3200-4000
152
25
Blackish green
MA-6-3600
3000-3600
136.8
25
Gray
MA-6-4200
3600-4200
186.2
25
White
MA-6-5100
4200-5100
204.0
25
Khaki
MA-6-6000
4600-6100
228
25
Blackish green
MA-9-5400
4700-5800
205.2
25
Gray
MA-9-6300
5800-6400
239.4
25
White
MA-9-7500
6500-7500
290
25
Khaki
MA-9-9000
7600-9000
342
25
Blackish green
Application
Related Products
Packing&Shipping
Packing: Cartons & Wooden cases
Shipping: Door-to-Door Air Freight & FOB & CFR
After Sales Service
1.Free one-year warranty. Goods received within 15days of quality problems can be returned for replacement.

2. Provided the product instruction manual. The installation method can be guided on line.

3. The professional technicians shall make shock absorption scheme according to the actual situation on the spot.
Company Introduction
Bellking vibration reduction equipment manufacturing(Kunshan)Co.,Ltd is a modern high-tech enterprise committed to providing integrated solutions to vibration control problem for various industries. It has many years of experience in producing industrial workshop damping vibration and micro-vibration absorbing products.

All of our products are developed independently with reference to the latest technology,thus making the product orientation and quality always walk in the forefront of the industry.In recent years,our company have applied for more than 10 patents.What’s more, it was honored ”Jiangsu Private Technology Enterprise” in 2015 and “High-tech Enterprise”in 2017,which increased our strength of scientific and technological innovation and core competence greatly.

We nurture trusting collaborations with our customers and partners by providing quality,safety,prized experience and technological know-how. Building successes together!


FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.

Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days.

Q: What's the weight and measurement for the product?
A: Different size with differenct amount, please contact us for details.

Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available

Q: What do you need to know for fast quotation?
A: It would be highly appreciated if we have the details of detailed drawing for OEM order, model, end connection type, flange standard and material, medium, pressure, temperature and other working conditions.

Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Kunshan, Jiangsu Prov., China
