- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Silicone Rubber
-
Rated Voltage:
-
600V, 1KV
-
Tensile Strength:
-
10.4Mpa
-
Product Name:
-
Cold Shrink Silicone Rubber Tube
-
Color:
-
Grey, black
-
Inner Diameter:
-
53mm
-
Required Length:
-
80 ~ 500mm
-
Shrink Ratio:
-
2.5 : 1
-
Feature:
-
High Temperature Resistance
-
Sample:
-
Avaliable
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LDDQ
-
Model Number:
-
LDDLFJ-LS0054
-
Material:
-
Silicone Rubber
-
Rated Voltage:
-
600V, 1KV
-
Tensile Strength:
-
10.4Mpa
-
Product Name:
-
Cold Shrink Silicone Rubber Tube
-
Color:
-
Grey, black
-
Inner Diameter:
-
53mm
-
Required Length:
-
80 ~ 500mm
-
Shrink Ratio:
-
2.5 : 1
-
Feature:
-
High Temperature Resistance
-
Sample:
-
Avaliable
Product Description

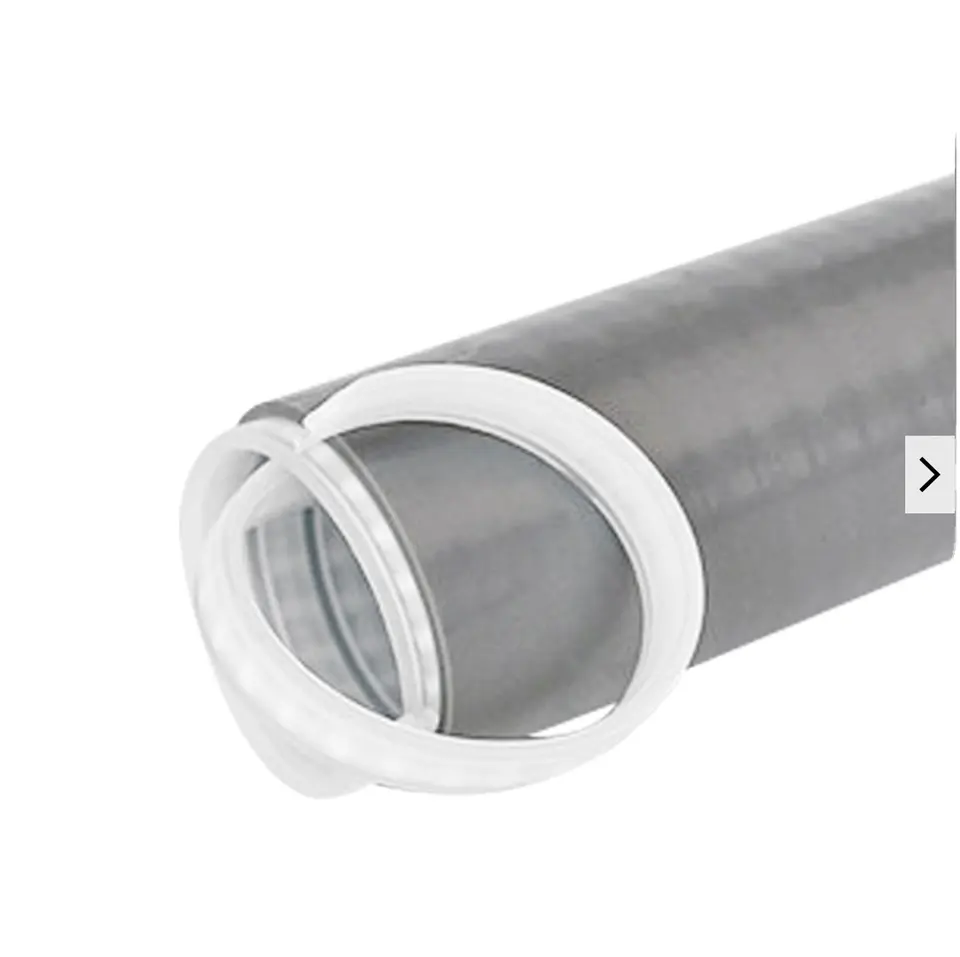

Cold Shrink Silicone Rubber Tube
* Manufactured from silicone rubber
* Offering good mechanical, insulation and sealing protetion
* Accommodating a wide range of cable sizes
* For indoor or outdoor applictions
* Simple and fast installation
* Color: grey, black
* Offering good mechanical, insulation and sealing protetion
* Accommodating a wide range of cable sizes
* For indoor or outdoor applictions
* Simple and fast installation
* Color: grey, black
Selection Table
|
Product No.
|
ID* Expanded
(Max)/mm
|
Required Length
(After Relaxed)/mm
|
Thickness
(After Relaxed)/mm
|
Application Range
/mm
|
|
CST20
|
20
|
80 ~ 450
|
2.0 ± 0.2
|
φ10 ~ φ14
|
|
CST28
|
28
|
80 ~ 500
|
2.5 ± 0.2
|
φ12 ~ φ17
|
|
CST32A
|
32
|
80 ~ 490
|
2.5 ± 0.2
|
φ13.2 ~ φ22.4
|
|
CST32B
|
32
|
80 ~ 490
|
2.0 ± 0.2
|
φ14 ~ φ21
|
|
CST35
|
35
|
80 ~ 450
|
2.0 ± 0.2
|
φ19 ~ φ28
|
|
CST40
|
40
|
80 ~ 450
|
2.0 ± 0.2
|
φ21 ~ φ31
|
|
CST47
|
47
|
80 ~ 470
|
2.0 ± 0.2
|
φ25 ~ φ37
|
|
CST53
|
53
|
80 ~ 500
|
2.0 ± 0.2
|
φ31 ~ φ45
|
|
CST65
|
65
|
80 ~ 500
|
3.0 ± 0.2
|
φ31 ~φ45
|
|
CST70
|
70
|
80 ~ 500
|
3.0 ± 0.2
|
φ37 ~ φ55
|
|
CST80A
|
80
|
80 ~ 500
|
3.0 ± 0.2
|
φ37 ~ φ55
|
|
CST80B
|
80
|
80 ~ 500
|
3.0 ± 0.2
|
φ44 ~ φ65
|
|
CST88
|
88
|
80 ~ 500
|
3.0 ± 0.2
|
φ44 ~ φ65
|
|
CST104
|
104
|
80 ~ 500
|
3.0 ± 0.2
|
φ51 ~ φ76
|
|
CST110A
|
110
|
80 ~ 420
|
6.0 ± 0.2
|
φ45 ~ φ66
|
|
CST110B
|
110
|
80 ~ 420
|
6.0 ± 0.2
|
φ72 ~ φ105
|
|
CST150
|
150
|
80 ~ 480
|
3.0 ± 0.2
|
φ92 ~ φ135
|
Remark
: ID* means inner diameter.
