Quick Details
-
Lift Speed:
-
manual operated
-
Certification:
-
SGS/CE/ISO
-
After-sales Service Provided:
-
Overseas third-party support available
-
Product name:
-
Pulling winch Lever Hoist 1.5 Ton Chain Pulley Block
-
Capacity:
-
1.5ton
-
Running test load:
-
2.25ton
-
Standard Lifting Height:
-
1.5m
-
Insulation Grade:
-
F grade
-
No. Of Chain:
-
1 (imported chain)
-
Load chain diameter:
-
8mm
-
Pulling efforts:
-
22kg
-
Chain:
-
rust-proof & anti-corrosion
Quick Details
-
Warranty:
-
12 Months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TXK
-
Lift Speed:
-
manual operated
-
Certification:
-
SGS/CE/ISO
-
After-sales Service Provided:
-
Overseas third-party support available
-
Product name:
-
Pulling winch Lever Hoist 1.5 Ton Chain Pulley Block
-
Capacity:
-
1.5ton
-
Running test load:
-
2.25ton
-
Standard Lifting Height:
-
1.5m
-
Insulation Grade:
-
F grade
-
No. Of Chain:
-
1 (imported chain)
-
Load chain diameter:
-
8mm
-
Pulling efforts:
-
22kg
-
Chain:
-
rust-proof & anti-corrosion

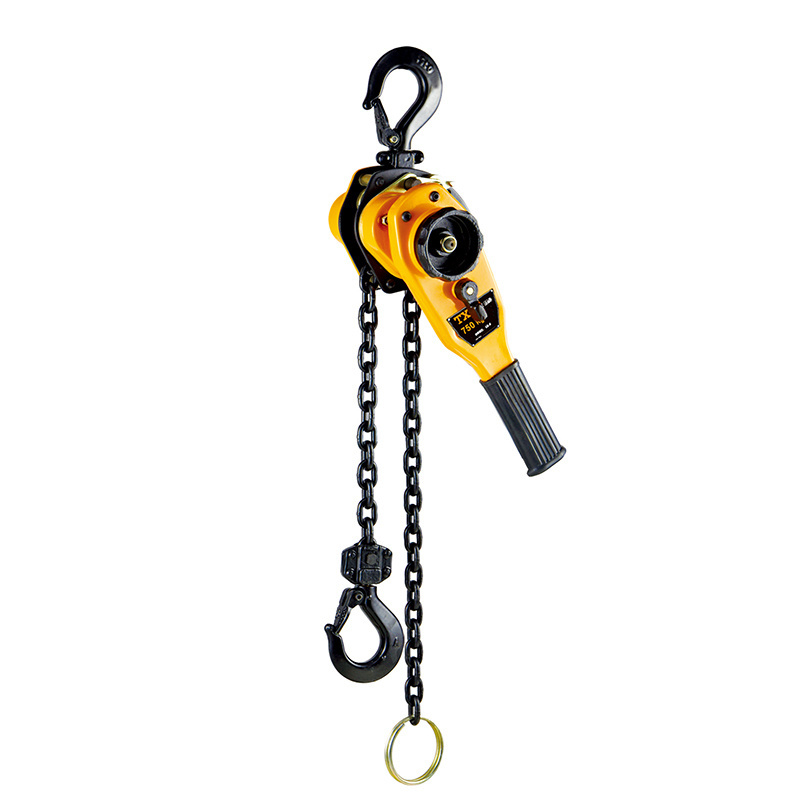

Lever block, lever hoist, Manual hoist
Capacity: From 0.25T to 9T
Technical Features:
Super Grade100 load chain-Wafios link, DIN standard.
Forged and Heat Treated load Hooks with batch traceability and stretch indicatiors
360° Handle rotation with stroke to ratchet indicators
Double pawl Brake system
Asbestos Free Brake Linings
Forged Safety Latch
Sealed Roller Bearings
100% Load Tested to 1.5xWLL
MBL of 400% of WLL
2000 Cycle Batch Test
Lever Hoist specifications:
| Model LB-B | 75 | 100 | 150 | 200 | 300 | 600 | |
| Capacity (ton) | 0.75 | 1 | 1.5 | 2 | 3 | 6 | |
| Standard lifting height (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running test load (t) | 1.13 | 1.5 | 2.25 | 3 | 4.5 | 9 | |
| Pulling efforts (kg) | 15 | 20 | 18 | 24 | 38 | 39 | |
| Chainfall | 1 | 1 | 1 | 1 | 1 | 2 | |
| Load chain diameter (mm) | 6.3 | 6.3 | 7.1 | 8 | 9 | 9 | |
| Net weight (kg) | 6.9 | 7.1 | 9.4 | 10.1 | 16.3 | 27.2 | |
| Dimensions (mm) | A | 148 | 152 | 161 | 168 | 191 | 191 |
| B | 128 | 128 | 148 | 148 | 180 | 243 | |
| C | 295 | 310 | 335 | 350 | 405 | 550 | |
| D | 256 | 256 | 368 | 368 | 368 | 368 | |
| G | 45 | 48 | 52 | 60 | 66 | 80 | |
TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chain hoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than 15 years experience and hard work.
