Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Reacher/ OEM
-
Model Number:
-
D85L135S-WC
-
Torque:
-
17.5Nm
-
Working Voltage:
-
12-16S (48-67.2V)
-
Max RPM:
-
14112RPM
-
KV:
-
210KV
-
No Load Current @8.4V:
-
2.4A
-
Max Power:
-
12800w
-
Peak Current (A):
-
300A
-
Max Efficiency:
-
88%
-
Max Torque:
-
17.5Nm
-
Shaft Dimension:
-
12mm
-
Motor Demension:
-
D99.8*L134mm
Quick Details
-
Speed(RPM):
-
14112rpm
-
Continuous Current(A):
-
150A
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Reacher/ OEM
-
Model Number:
-
D85L135S-WC
-
Torque:
-
17.5Nm
-
Working Voltage:
-
12-16S (48-67.2V)
-
Max RPM:
-
14112RPM
-
KV:
-
210KV
-
No Load Current @8.4V:
-
2.4A
-
Max Power:
-
12800w
-
Peak Current (A):
-
300A
-
Max Efficiency:
-
88%
-
Max Torque:
-
17.5Nm
-
Shaft Dimension:
-
12mm
-
Motor Demension:
-
D99.8*L134mm
Products Description
|

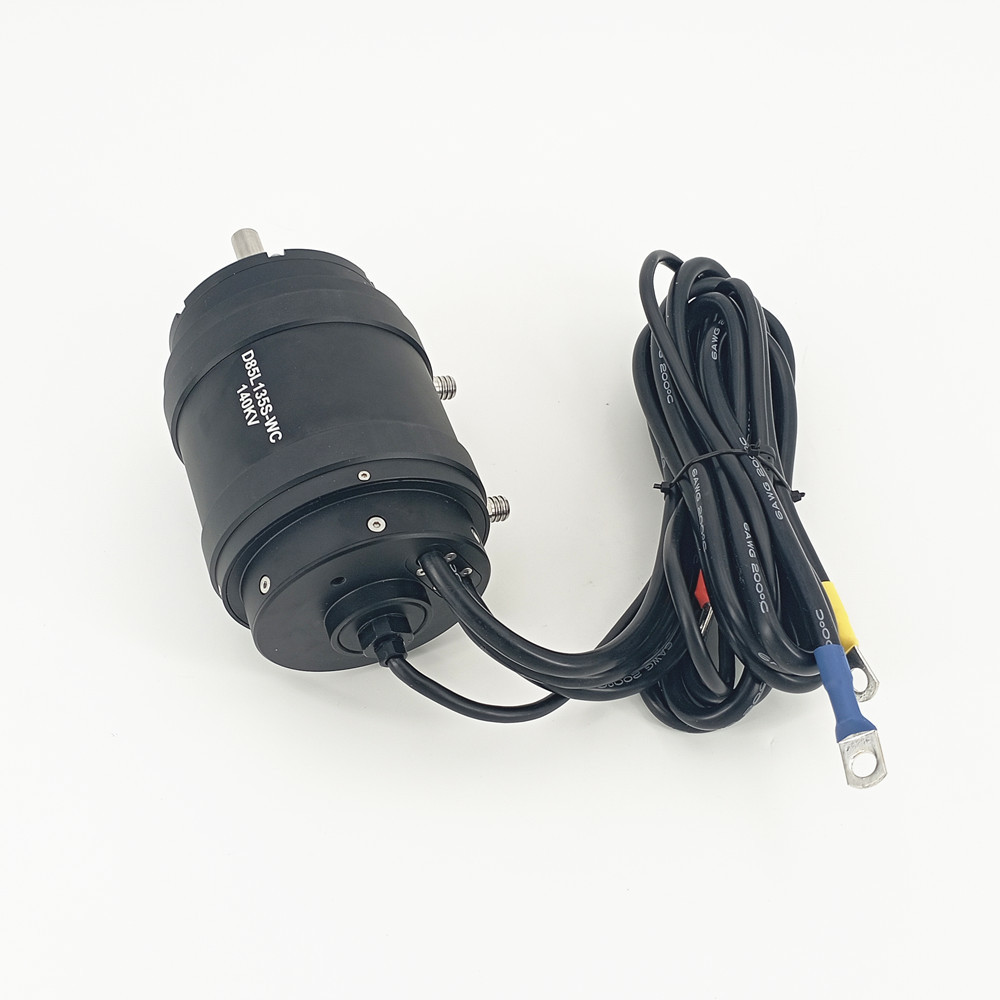

Reacher Tech D85L135S-WC Motor Specification
|
|
|
|
|
|
|
|
|
||||||||
|
Model No
|
D85L135S-WC-280
|
D85L135S-WC-240
|
D85L135S-WC-210
|
D85L135S-WC-170
|
D85L135S-WC-140
|
D85L135S-WC-120
|
D85L135S-WC-105
|
D85L135S-WC- 93
|
||||||||
|
Winding Turns
|
3T
|
3.5T
|
4T
|
5T
|
6T
|
7T
|
8T
|
9T
|
||||||||
|
Working Voltage Range
|
8-12S
|
10-14S
|
12-16S
|
12-18S
|
16-24S
|
16-28S
|
16-34S
|
16-36S
|
||||||||
|
Max RPM
|
14112
|
14112
|
14112
|
12852
|
14112
|
14112
|
14112
|
14062
|
||||||||
|
KV(RPM/V)
|
280KV
|
240KV
|
210KV
|
170KV
|
140KV
|
120KV
|
105KV
|
93KV
|
||||||||
|
KT (N*M/A)
|
0.0387
|
0.0461
|
0.0518
|
0.0648
|
0.0778
|
0.0908
|
0.1037
|
0.1167
|
||||||||
|
No Load Current at 8.4V
|
2.8A
|
2.6A
|
2.4A
|
2.2A
|
2A
|
1.8A
|
1.6A
|
1.3A
|
||||||||
|
Max Power (W)
|
12500W
|
12700W
|
12800W
|
13000W
|
13200W
|
13300W
|
13500W
|
13600W
|
||||||||
|
Peak Current (A)
|
380A
|
330A
|
300A
|
250A
|
220A
|
220A
|
220A
|
180A
|
||||||||
|
Max Efficiency
|
87%
|
87.0%
|
88%
|
89%
|
89%
|
89%
|
89%
|
89%
|
||||||||
|
Max Torque (Nm)
|
14.3Nm
|
16Nm
|
17.5Nm
|
19.2Nm
|
19.2Nm
|
19.2Nm
|
19.2Nm
|
20.2Nm
|
||||||||
|
Rated Power (W)
|
10300W
|
10500W
|
10080W
|
11000W
|
11300W
|
11500W
|
11700W
|
11800W
|
||||||||
|
Net Weight
|
3kg
|
3kg
|
3kg
|
3kg
|
3kg
|
3kg
|
3kg
|
3kg
|
||||||||
|
Construction
|
12N/10P
|
|
|
|
|
|
|
|
||||||||
|
Max Working
Temperature |
120 Centigrade
|
|
|
|
|
|
|
|
||||||||
|
Motor Dimension (mm)
|
Diameter 99.8mm*Length 134mm
|
|
|
|
|
|
|
|
||||||||
|
Shaft Diameter (mm)
|
12mm
|
|
|
|
|
|
|
|
||||||||
|
Wire Length (mm)
|
150±5MM
|
|
|
|
|
|
|
|
||||||||
|
Connector
|
10mm golden plug
|
|
|
|
|
|
|
|
||||||||
|
Service Life
|
10000 hours
|
|
|
|
|
|
|
|
||||||||
|
Max Efficiency
|
88%
|
|
|
|
|
|
|
|
||||||||
|
Max Torque
|
17.5Nm
|
|
|
|
|
|
|
|
||||||||
|
Shaft Dimension
|
12mm
|
|
|
|
|
|
|
|
||||||||
|
Motor Demension
|
D99.8*L134mm
|
|
|
|
|
|
|
|
||||||||
