Quick Details
-
Power:
-
2.2kw
-
Max cutting width:
-
440mm
-
Max cutting thickness:
-
22mm
-
Max cutting speed:
-
430times/min
-
Raw material:
-
wood rotary cut veneer
-
Size:
-
1200*800*1200
-
Weight:
-
450kg
Quick Details
-
Place of Origin:
-
Jilin, China
-
Name:
-
Ice cream stick making machine
-
Application:
-
ice cream sticks, tongue depressor, coffee stirring sticks
-
Power:
-
2.2kw
-
Max cutting width:
-
440mm
-
Max cutting thickness:
-
22mm
-
Max cutting speed:
-
430times/min
-
Raw material:
-
wood rotary cut veneer
-
Size:
-
1200*800*1200
-
Weight:
-
450kg
Most Advanced Ice Cream Stick Carved Cutting Machine
Tongue Depressor Cutting Machine
Coffee Stirring Stick Making Machine / Ice Cream Spoon Making Machine
This ice cream stick cutting machine is the main equipment for making ice cream sticks, tongue depressor, coffee stirring stick, ice cream spoons,etc. The raw material is the rotary cut veneer
The ice cream stick carved cutting machine we supplied for now is the newest generation, which is the most advanced machine in China, as the feeding roller of the ice cream stick cutting machine adopted full sealed bearings and lubricated by lubricating oil automatically, so the working life of which is 2-3 times than other ice cream stick forming machine in the market as well as the working efficiency.
*The main advantages of the ice cream stick cutting machine, tongue depressor cutting machine, coffee stirring stick cutting machine is as below:
1. The ice cream stick carved cutting machine is designed with simple and compact structure, which is easy to operate and maintain.
2. Clients can make ice cream sticks with different size and shape just by changing the carved cutting blades.
3. The rotating speed of the ice cream stick cutting machine can reach 430rpm which guarantee the high working efficiency.
4. It can be equipped with 3 or 4 blades at the same time according to the size of sticks to be made.
5. The max cutting layers of the wood veneer can reach 8-9 layers at one time.
This ice cream stick cutting machine / tongue depressor making machine / coffee stirring stick making machine can be used alone to make ice cream sticks, tongue depressor, coffee stirring sticks, ice cream spoons, etc. by purchasing ready wood rotary cut veneer or working with other ice cream stick making machines in line.
*Main technical parameter of wooden tongue depressor cutting machine
Name |
Ice cream stick carved cutting machine |
Model |
CQ-3 |
Power |
2.2KW/380/50HZ or customized |
Max width accepted |
440mm |
Max cutting speed |
430times/min |
Max cutting thickness |
22mm |
Dimension |
1200*800*1200 |
Weight |
450kg |

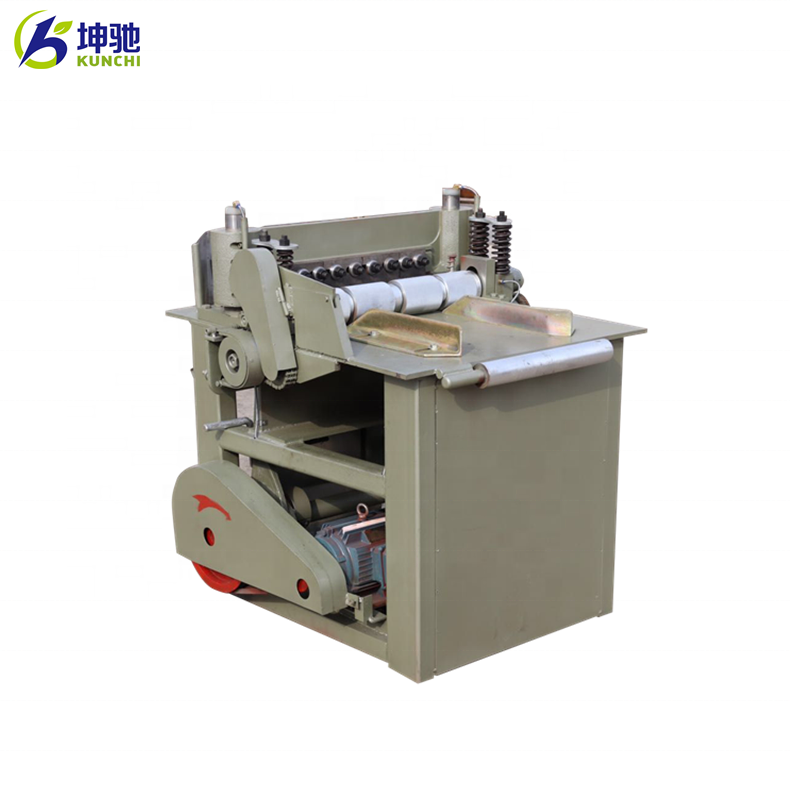

*Detailed picture of wooden tongue depressor cutting machine
*Final products of the wooden tongue depressor making machine
*Spare parts will be supplied with cost price all the time
We supply the whole sets of machines of the ice cream stick making process, such as the rotary cutter, drying and polishing machine, ice cream stick ordering machine, ice cream stick selecting machine, ice cream stick packing machine, etc.
All the machines will first packed with film and then packed into high quality wooden case and well fixed.
Generally speaking, machines will be ready within 20 days after we recieved the deposit. FOB, CNF,CIF are all accepted.
*Pre-sale service
We will response client's inquiry in time and anwer all the questions and porvide the information required as much as we can, to help client to make the right decision.
*After-sale service
After client placed the order, we will produce the machines with strict quality control as soon as possible, before delivery, we will test all machines again to make sure there is no problem at all.
Clients are welcome to our factory to learn the operation skills, we will afford the accommodation cost with our standard.
We have experienced engineer who has gone to many countries, so if needed, we aslo can send our engineer to client's place to provide traning service, and the client should bear all the cost of the training service
