Quick Details
-
Max.speed:
-
5000rpm
-
Max.RCF:
-
4730xg
-
Max.capacity:
-
4x250ml
-
Material:
-
Metal housing with stainless steel centrifugal chamber
-
Timer:
-
1~99h59min
-
Speed accurancy:
-
±20r/min
-
Power supply:
-
AC110~220V,50HZ,1A
-
Display:
-
Digital or LCD
-
Temperature range:
-
-20℃ ~ 40℃
-
Type:
-
refrigerated swing bucket centrifuge
Quick Details
-
Brand Name:
-
refrigerated swing bucket centrifuge
-
Model Number:
-
TDL5 refrigerated swing bucket centrifuge
-
Place of Origin:
-
Hunan, China
-
Max.speed:
-
5000rpm
-
Max.RCF:
-
4730xg
-
Max.capacity:
-
4x250ml
-
Material:
-
Metal housing with stainless steel centrifugal chamber
-
Timer:
-
1~99h59min
-
Speed accurancy:
-
±20r/min
-
Power supply:
-
AC110~220V,50HZ,1A
-
Display:
-
Digital or LCD
-
Temperature range:
-
-20℃ ~ 40℃
-
Type:
-
refrigerated swing bucket centrifuge

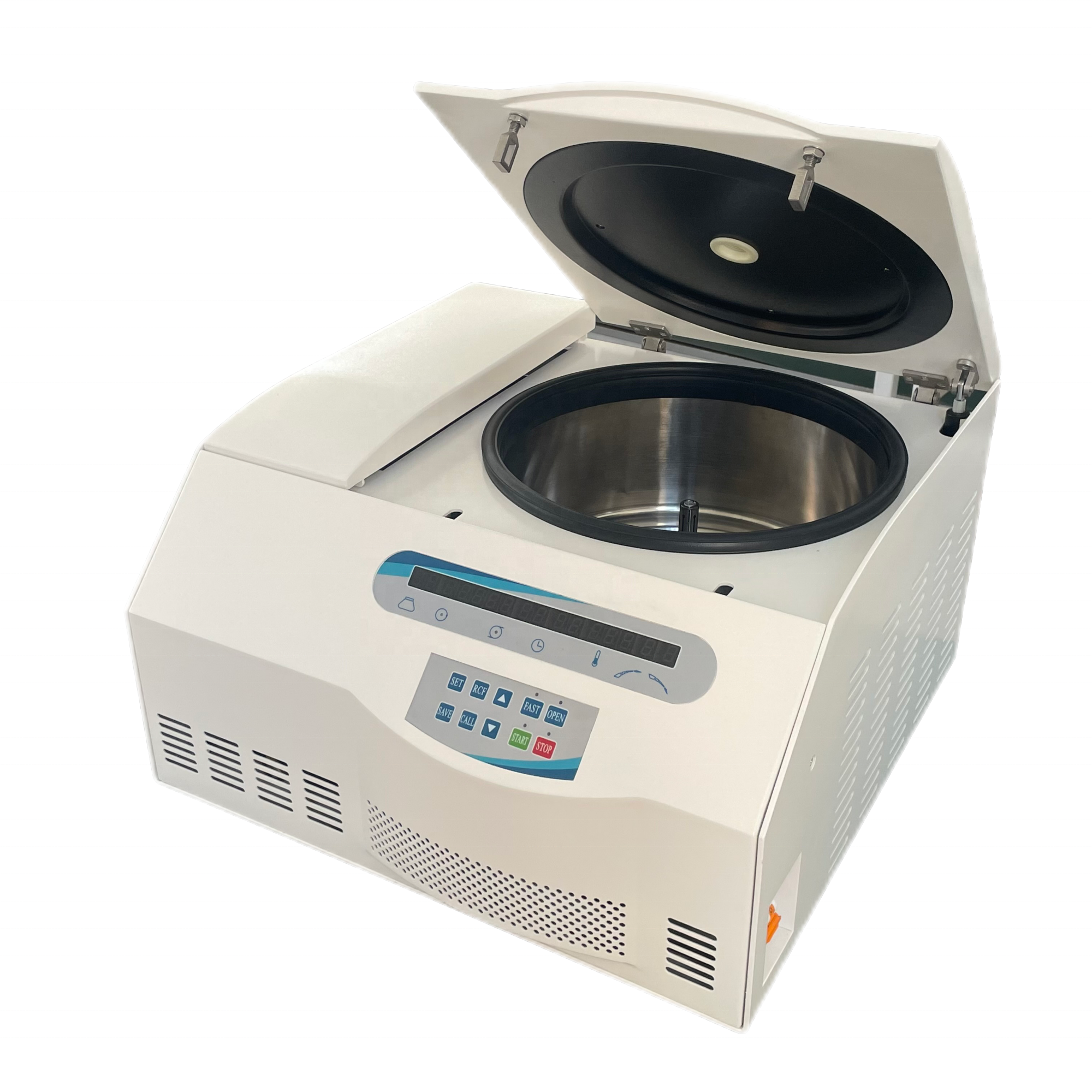

Bench top refrigerated large capacity swing bucket centrifuge 4x250ml with adapter for 5/7/10/15/50ml tube
The capacity is 4 x 250ml in Swing out rotor matching Adapters for 5ml, 7ml, 10ml, 50ml tubes...to meet various of testings flexible. Widely used in the fields of Blood bank stations, biochemistry, biological products, pharmaceutical factory and laboratory.
Features For 4x250ml Swing Buckets Laboratory Centrifuge
adapter for 5ml 10ml 15ml 50ml tubes
Ø metal housing is safe and compact. It is of microprocessor control accuracy high.
Ø Brush-less frequency motor, free maintenance, no powder pollution
Ø Digital or LCD touch-screen display Speed/RCF/Time/Temperature/Acc./Dec. All run parameters clearly
Ø There are 10 rates of speed up and down faster and stable.
Ø Electronic safety lock alarm inside, just press down the top lid until it will lock in sealed and open up after separation automatically.
Ø Both automatic rotor recognition and imbalance protection functions are for options
Ø ISO9001, ISO13485, CE certificates are available.
Technical Parameters
|
Max Speed:5000r/min |
Max RCF :4730xg |
|
Max Volume ; 4x250ml |
Power supply: AC220V,50HZ, 7 A |
|
Timer 1~ 9hour/59 min |
Noise : ≤ 65 dBA |
|
Dimension: :620x600x360mm |
Net Weight : 85 KG |
|
Speed Accuracy: ± 2 0r/min |
Package (W*D*H) :820×710×545 mm |
|
Temperature range: |
-20 ℃ ~ 40 ℃ |
Matched Rotors
|
Order No. |
Rotor type |
Max.Speed (rpm) |
Max.Volume (ml) |
Max.RCF (xg) |
|
D5-1 |
Swing out rotor |
4,000 |
4x250ml (round cup) |
2,880xg |
|
D5-2 |
Swing out rotor |
4,000 |
4x250ml (square cup) |
2,830xg |
|
D5-3 |
Swing out rotor |
5,000 |
4x50ml |
4,730 |
|
D5-4 |
Swing out rotor |
5,000 |
4x100ml |
4,730 |
|
D5-5 |
Swing out rotor |
4,000 |
32x10ml |
2,790 |
|
D5-6 |
Swing out rotor |
4,000 |
24x15ml |
3,020 |
|
D5-7 |
Swing out rotor |
4,000 |
4x12x7ml |
2,760 |
Bench top refrigerated large capacity swing bucket centrifuge 4x250ml with adapter for 5/7/10/15/50ml tube
It will be packed in its suitable plywooden box for export standard. And regular items would be packed inside at below:
1. 1pc centrifuge main unit
2. 1pc rotor customer pre-selected
3. 1pc Spanner for emergence lock
4. 1pc User Manual
Bench top refrigerated large capacity swing bucket centrifuge 4x250ml with adapter for 5/7/10/15/50ml tube
We have own strong and professional R&D department that allows to support our Sales Department to provide OEM & ODM services for our customers.
Certificates
Q: Are you manufacturer or trader?
A: We have been specialized in manufacturing laboratory centrifuges for more than 20 years as well as have full overseas trading experience to provide excellent service heart to heart.
Q: Do you accept small orders?
A: Yes, our MOQ is one set laboratory centrifuge.
Q: What's the delivery time of high speed centrifuge?
A: 1~7 days after payment received. (According to the order,maybe longer.)
Q: Is there any discount on the price?
A: Definitely we have, As professional high speed laboratory centrifuge manufacturer in China. We have very competitive and favorable price in this market. because we are factory and we run big volume. More quantity, more discount.
Q: Can you accept customer's designs?
A: Yes, We have technical support and satisfactory training. ODM/OEM are available.
Q: Can you make customer's design(logo) on the package?
A: Yes, OEM/ODM package is acceptable.
Q: Do you have after-sales sevice?
A: Yes,we have. We can offer you operation vedio of high speed laboratory centrifuge.
Bench top refrigerated large capacity swing bucket centrifuge 4x250ml with adapter for 5/7/10/15/50ml tube
