Quick Details
-
Color Temperature(CCT):
-
3000k/4000k/5000k/6000k/
-
CRI (Ra>):
-
80
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LH-LICS5-060
-
Brand Name:
-
LiteHome
-
Input Voltage(V):
-
AC 220-240 V/AC
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
> 6000
-
Power:
-
60w
-
Size:
-
1500*73.5*69.5
-
Length:
-
5ft 1500mm
-
LED Light Source:
-
SMD 2835 364PCS
-
Dimming:
-
0-10V/1-10V motion sensor
-
Application:
-
Commercial
-
Products name:
-
batten linear light
-
Power factor:
-
0.9
-
Material:
-
Aluminum
-
Lifespan:
-
50000
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100-150
-
IP Rating:
-
IP20
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000k/4000k/5000k/6000k/
-
CRI (Ra>):
-
80
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LH-LICS5-060
-
Brand Name:
-
LiteHome
-
Input Voltage(V):
-
AC 220-240 V/AC
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
> 6000
-
Power:
-
60w
-
Size:
-
1500*73.5*69.5
-
Length:
-
5ft 1500mm
-
LED Light Source:
-
SMD 2835 364PCS
-
Dimming:
-
0-10V/1-10V motion sensor
-
Application:
-
Commercial
-
Products name:
-
batten linear light
-
Power factor:
-
0.9
-
Material:
-
Aluminum
-
Lifespan:
-
50000
Product Description
Indoor motion sensor light
LH-LICS5-060-WMWJ, t
his is a
motion sensor light
specially designed for warehouses. This led linear light comes with a remote control, you can use this to set the effect you want. The following is an introduction to some functions.
B). 2-step dimming function (stand-by period be set to “+∞”)
1. There is no motion detected, the light will remain at a low light level all the time.
2. When motion is detected, the sensor will switch on the light to 100% brightness.
3. After elapse of hold time, the sensor dims the light at the present low light level if no motion is detected.
C). 3-step dimming function (stand-by period be set to “10 S/1 min/3 min/5 min/10 min/30 min”)
1. With sufficient ambient light, the light will not be switched on even if with a motion signal.
2. With insufficient ambient light, the sensor switches on the light when motion is detected.
3. After elapse of hold time, the sensor dims the light at a low light level if no new motion is detected.
|
item
|
value
|
|
Color Temperature(CCT)
|
3000k
|
|
Lamp Luminous Efficiency(lm/w)
|
100-180lm/w
|
|
Color Rendering Index(Ra)
|
80
|
|
Support Dimmer
|
0/1-10V Motion sensor
|
|
Lifespan (hours)
|
50000
|
|
Working Time (hours)
|
50000
|
|
Light Source
|
LED
|
|
Input Voltage(V)
|
AC 220-240V/AC 100-277V/AC 180-347V
|
|
Lamp Luminous Flux(lm)
|
>6000
|
|
Working Temperature(℃)
|
-20℃-+45℃
|
|
IP Rating
|
Ip20
|
|
Certification
|
ROHS, CE
|
|
Warranty(Year)
|
5-Year
|
|
Place of Origin
|
China
|
|
Brand Name
|
Litehome
|
|
Model Number
|
LH-LICS5-060-WMWJ
|
|
Application
|
warehouse
|
|
Power Supply
|
AC
|
|
Lighting solutions service
|
Project Installation
|
|
LED Chip
|
SMD#2835
|
|
LED Q'ty
|
364
|
|
Products name
|
Batten light
|
|
Power factor
|
0.9
|
|
Material
|
6063 Aluminum
|

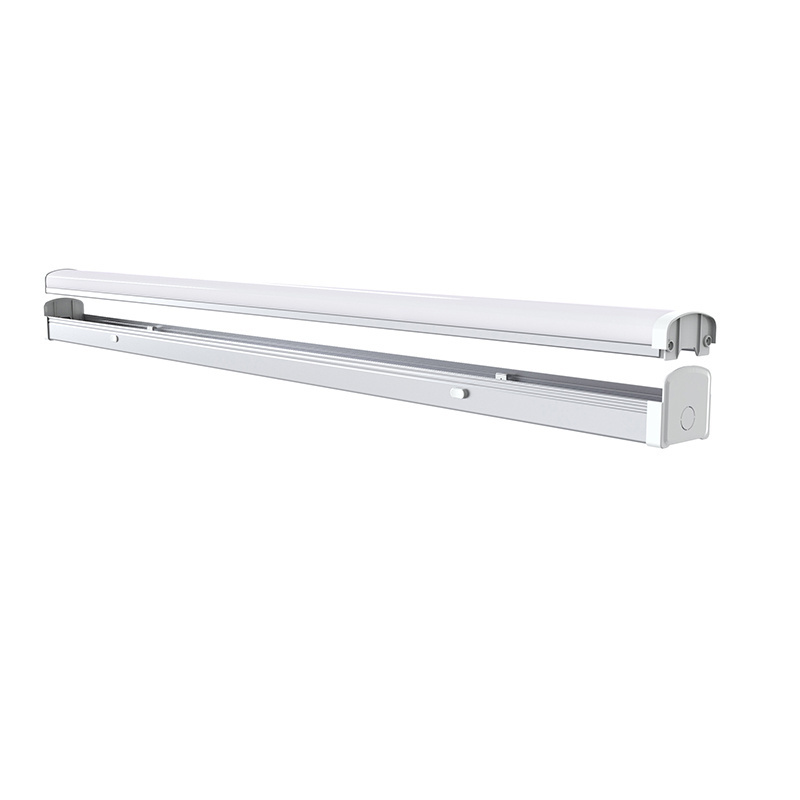

The structural design of this LED linear light is very benefit to the people. You can turn on the led lighting body by pressing the button.
And this is a replaceable light source design. If it need to change the light source, the is very simple to open it.
It has a variety of functions, such as 0/1-10 V Motion sensor, Change CCT & Power, emergency function. The warranty of led motion sensor light is 5 years, generally it can be used for 8-10 years.
