- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HY-X100
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
60*36*43cm, 60*36*43cm
-
Weight:
-
45kg
-
Working Pressure:
-
300bar
-
Air capacity:
-
100L/min
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-

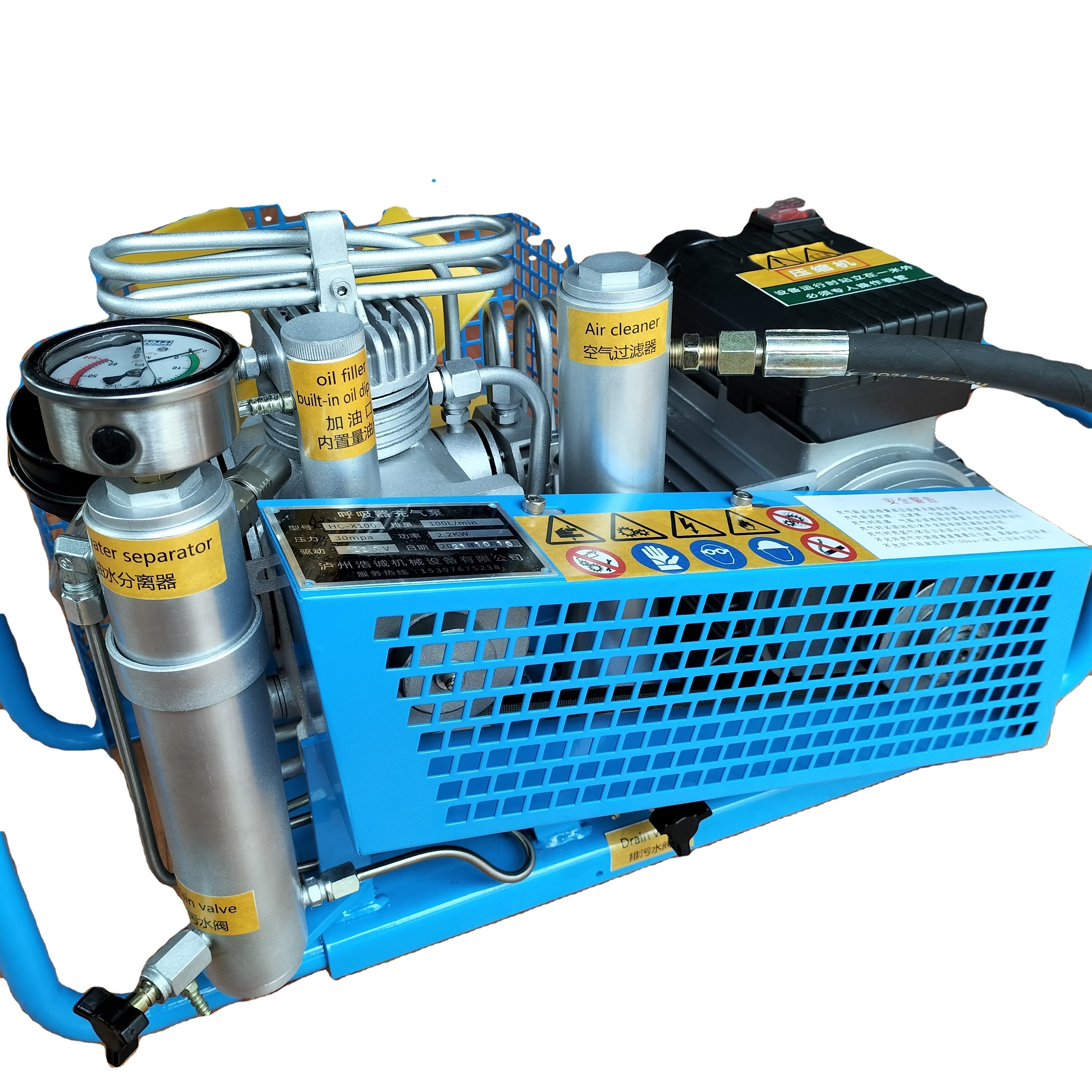

HUAYAN(Respirator Filling Pump)
-
Application:
-
firefighting/diving
-
Motor power:
-
220v/380v
-
Cooling:
-
Air Cooling
-
control method:
-
Automatic shutdown
-
weigh:
-
45kg
-
Pressure:
-
30MPa/300bar
Quick Details
-
Applicable Industries:
-
Fire brigade gas supply station, diving club, sea farming, equipment on board, fishing, Shipbuilding Industry
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUAYAN
-
Model Number:
-
HY-X100
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
60*36*43cm, 60*36*43cm
-
Weight:
-
45kg
-
Working Pressure:
-
300bar
-
Air capacity:
-
100L/min
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
HUAYAN(Respirator Filling Pump)
-
Application:
-
firefighting/diving
-
Motor power:
-
220v/380v
-
Cooling:
-
Air Cooling
-
control method:
-
Automatic shutdown
-
weigh:
-
45kg
-
Pressure:
-
30MPa/300bar
Product Description
Specification
|
Applicable Industries
|
Fire brigade gas supply station, diving club, sea farming, equipment on board, fishing, Shipbuilding Industry
|
Showroom Location
|
None
|
|
Condition
|
New
|
Type
|
PISTON
|
|
Configuration
|
PORTABLE
|
Power Source
|
AC POWER
|
|
Lubrication Style
|
OIL-LESS
|
Mute
|
NO
|
|
Place of Origin
|
Jiangsu province China
|
Voltage
|
220v/380v
|
|
Brand Name
|
HUAYAN
|
Dimension(L*W*H)
|
60*36*43cm
|
|
Model Number
|
HY-X100/EM/ET/SH
|
Weight
|
45kg
|
|
Warranty
|
1 Year
|
Machinery Test Report
|
Provided
|
|
Air capacity
|
100L/min
|
Working Pressure
|
300bar, 30Mpa
|
|
Warranty of core components
|
1 Year
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
Hot Product 2022
|
Gas Type
|
Oxygen
|
|
Core Components
|
Motor, Pump
|
Application
|
firefighting/diving
|
|
Product name
|
HUAYAN(Respirator Filling Pump)
|
control method
|
Automatic shutdown
|
|
Cooling
|
Air Cooling
|
Lubrication Style
|
Splash
|
Work Principle/ Compression process
The final stage piston of this product adopts special technology, the piston ring adopts Japan Riken technology, and all casting products are cast by professional large-scale factories. This product adopts four-cylinder four-stage compression, splash lubrication, last-stage safety valve and filter system. This product
pcp air compressor/
portable air compressor/
air compressor 100L
is designed, produced and commissioned
according to the requirements of GB/T 12929-2008 "Marine High-Pressure Piston Air Compressor"; the air quality conforms to the EN12021 international breathing compressor breathing standard; HY-X100 is an air compression equipment, which will be free 1kg (1bar/0.1Mpa) of air in the state is compressed step by step to a high pressure gas with a gauge pressure of 300kg (300bar/30Mpa). After the air flows through the separator and filter in the unit, it removes the The oil and impurities in the high-pressure air can also filter the fine particles (PM2.5) in the inhaled air to a safe value of less than 10 micrograms. Provide highly purified, clean, odorless, safe and reliable compressed breathing air for personnel.
Packing & Delivery
tandard packing under shrink wrap film and dry condition delivery Plywood package, wooden package for option.
