Quick Details
-
Model:
-
CC
-
Thread Size:
-
1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 2"
-
Working Pressure:
-
03-35 Bar (4-508 Psi)
-
Spray Pattern:
-
Flat Fan
-
Spray Angle:
-
0°-110°
-
Flow Rate:
-
0.1-540 L/min
-
Material:
-
303SS,316SS, Brass
-
Applications:
-
Washing, Cleaning, Cooling, Dust Control
-
Certification:
-
ISO9001
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Canada, Thailand, South Korea
-
Marketing Type:
-
New Product 2020
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CYCO
-
Product name:
-
Flat Fan Spray Nozzle
-
Model:
-
CC
-
Thread Size:
-
1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 2"
-
Working Pressure:
-
03-35 Bar (4-508 Psi)
-
Spray Pattern:
-
Flat Fan
-
Spray Angle:
-
0°-110°
-
Flow Rate:
-
0.1-540 L/min
-
Material:
-
303SS,316SS, Brass
-
Applications:
-
Washing, Cleaning, Cooling, Dust Control
-
Certification:
-
ISO9001
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Canada, Thailand, South Korea
-
Marketing Type:
-
New Product 2020
Products Description

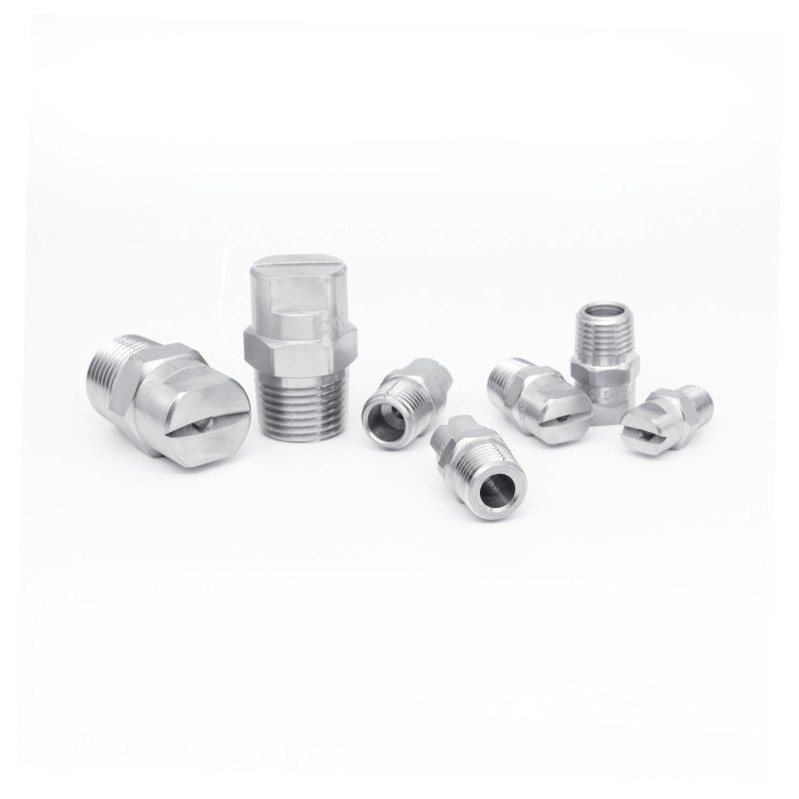

Features： CC flat fan spray nozzles feature a high impact solid steam or a flat fan spray pattern with the spray angles between 0°- 110°. They produce a uniform distribution of small to medium sized drops. Properly aligned, the specially tapered spray edges make a evenly coverage. CC and CC-L series nozzles have external piping thread connector and their flow rate are lower than 3.9L/min at 3 bar. Inner strainer is available for CC-L Series nozzle with male connector only. Standard flow rates of CC-N and CC-M Series are 3.9L/min or larger at 3 bar. All have external piping thread connector.
█ One-piece/heavy construction
█ One-piece/heavy construction
█ Straight-through orifice minimizes clogging
█ Machined from bar stock to exacting standards
Application:
1. Chemical cleaning
2. Product washing / rinsing
3. Pressure cleaning
4. Cooling and quenching
5. Fire suppression /prevention
6. Fire fighting
7. Net blanket low pressure cleaning
8. Spray coating
9. Roller and scraper ordering
Specification
|
Product name
|
CC Flat fan spray nozzle
|
|
Material
|
Brass ,303SS,316SS
|
|
Thread size
|
3/8", 1/2",3/8",3/4",1-1/4",1-1/2",2"
|
|
Thread type
|
BSPT ,NPT
|
|
Spray pattern
|
flat fan
|
|
Pressure
|
0.3-35 Bar (4-508 Psi)
|
|
Capacity
|
L/min
|
|
Spray angle
|
0° - 110°
|
|
Drop size
|
100-300μm
|
|
Application
|
1. Chemical cleaning
2. Product washing / rinsing 3. Pressure cleaning 4. Cooling and quenching 5. Fire suppression / prevention 6. Fire fighting 7. Net blanket low pressure cleaning 8. Spray coating 9. Roller and scraper ordering |
|
Connection type
|
BSPT , NPT
|
Available Models.
This CC series flat fan nozzle have 4 different flow rate for your choice: CC-small, CC-middle, CC-large, CC with strainer. Youcan choose the right one according to your requirement.
Jet stabilizers
Jet stabilizers installed in the heads of flat fan spray nozzle increase the spray distance and the durative power. When spray nozzles are installed on T-shaped pipe, branching pipe or bend pipe and the fluid swerve into the nozzle, turbulence occurs, which diffuses the jet flow. The stabilizer minimizes the diffusion and concentrate the jet flow through a thinner and stable way,offering a better performance in jet distance and durative power.
Spray Pattern
This CC series stainless steel nozzle features a flat fan pattern, see the effect below.
Performance data
