Quick Details
-
Brand Name:
-
xianglong
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
4.5m*2.3m*2.4m
-
Hollow part volume:
-
15L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
65 mm
-
Screw Heating Power(kW):
-
11 kW
-
Extruder Motor Power(kW):
-
15 kW
-
Mold Platen Size(Width)(mm):
-
350 mm
-
Mold Platen Size(Height)(mm):
-
450 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.5 m³/min
-
Die Head Heating Power(kW):
-
15 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
40
-
Weight (T):
-
3
-
Name:
-
full-automatic blow molding machine
-
Key words:
-
extrusion blow molding machines
-
Station:
-
Double Station
-
Marketing Type:
-
Ordinary Product
-
Material application:
-
PP PE HDPE
-
machine power::
-
380V
-
energy saving::
-
servo motor system
-
Screw Motor Power(kw):
-
25:1
-
Clamping force(KN):
-
50
-
Hydraulic motor(KW):
-
11
Quick Details
-
Clamping Force (kN):
-
50
-
Output (kg/h):
-
50 kg/h
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
xianglong
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
4.5m*2.3m*2.4m
-
Hollow part volume:
-
15L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
65 mm
-
Screw Heating Power(kW):
-
11 kW
-
Extruder Motor Power(kW):
-
15 kW
-
Mold Platen Size(Width)(mm):
-
350 mm
-
Mold Platen Size(Height)(mm):
-
450 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.5 m³/min
-
Die Head Heating Power(kW):
-
15 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
40
-
Weight (T):
-
3
-
Name:
-
full-automatic blow molding machine
-
Key words:
-
extrusion blow molding machines
-
Station:
-
Double Station
-
Marketing Type:
-
Ordinary Product
-
Material application:
-
PP PE HDPE
-
machine power::
-
380V
-
energy saving::
-
servo motor system
-
Screw Motor Power(kw):
-
25:1
-
Clamping force(KN):
-
50
-
Hydraulic motor(KW):
-
11
Product Description

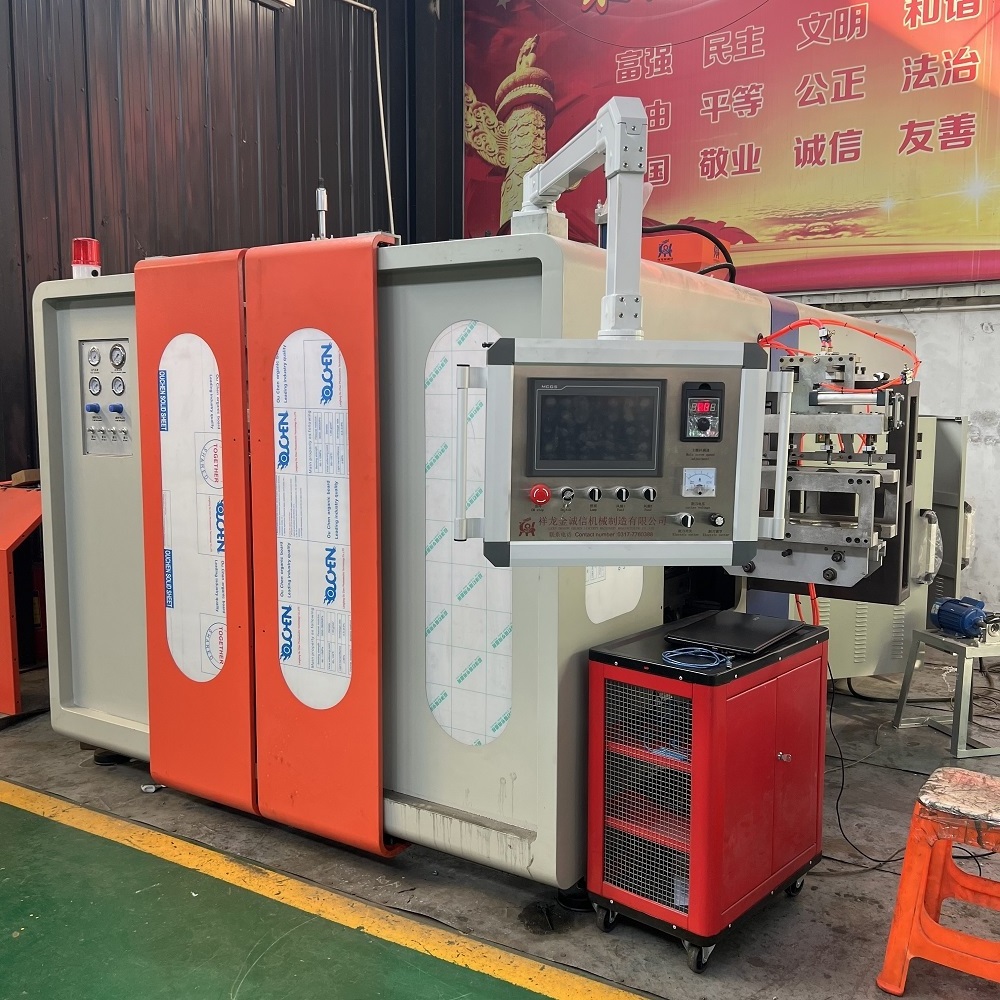

Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages,
medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
|
Specification
|
Unit
|
65
|
80
|
|
|
Machine Size
|
m
|
4.5m*2.3m*2.4m
|
4.8m*2.4m*2.5m
|
|
|
Machine Weight
|
Tons
|
3
|
6
|
|
|
Clamping Force
|
Kn
|
50
|
70
|
|
|
Template Size(W*H)
|
mm
|
350*450mm
|
400*500mm
|
|
|
Max Mold Size(W*H)
|
mm
|
350*450mm
|
400*500mm
|
|
|
Screw Diameter
|
mm
|
65mm
|
80mm
|
|
|
Screw L/D
|
L/D
|
25∶1
|
25∶1
|
|
|
Screw Driver Power
|
Kw
|
11
|
15
|
|
|
Screw Heating Power
|
Kw
|
15
|
20
|
|
|
Screw Screw Heating Zone
|
Zone
|
7
|
8
|
|
|
Double Die Center Distance
|
mm
|
180mm
|
250mm
|
|
|
Total Power
|
Kw
|
40
|
60KW
|
|
|
Oil Pump Motor
|
Kw
|
11
|
15
|
|
|
Blowing Pressure
|
Mpa
|
0.3-0.6
|
0.3-0.6
|
|
|
Air Consumption
|
M3/min
|
0.5
|
0.5
|
|
Product details
Company Information
Packing &Delivery
Our Customers
Certifications
FAQ
[1] Q: Are you a factory or trading company?
A: We are a factory.
[2] Q: Where is your factory located?
A: Our factory is located in Nanxiakou town, dongguang county, cangzhou city, hebei province.
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers needs. factory focuses on quality,quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee.
[5] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes , we can provide full blow molding machine line ,before and after sales service
[6] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
[7] Q: Can you offer big size blow molding machine? Can you make multilayers and multi-colors?
A: Yes,we can offer you up to 2000L blow molding machine,our factory have patent for the multilayers and multi-colors!
