Quick Details
-
Standard or Nonstandard:
-
Standard
-
Structure:
-
Angle
-
Material:
-
Alloy
-
Temperature of Media:
-
High Temperature
-
Port Size:
-
3/4"
Quick Details
-
Weight (KG):
-
3
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sffiltech
-
Standard or Nonstandard:
-
Standard
-
Structure:
-
Angle
-
Material:
-
Alloy
-
Temperature of Media:
-
High Temperature
-
Port Size:
-
3/4"

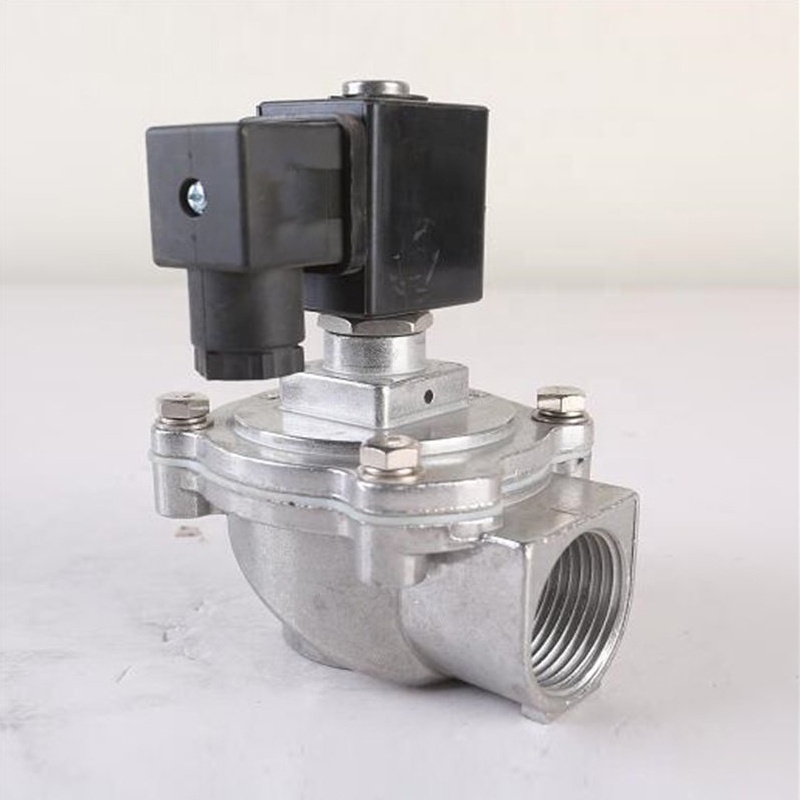

DMF-Z series/ Right Angle( Electro-magnetic Pulse Valve
DMF-Z electromagnetic pulse valve type for the right angle valves
DMF-Z series:
Right Angle( Electro-magnetic Pulse Valve)
masoneilan control valves
DMF-Z electromagnetic pulse valve type for the right angle valves, the Angle between the import and export
for 90° and suitable for gas bag dust and installation of wind.spray Air, can offer to meet the requirements
of the gas pulse, durable, better effect.
DMF: Electro-magnetic pulse Valve
Z: Rogjt Angle
X: Diameter
S: Double Diaphragms
X: Temperature Level
TRPE AND SPECIFICATION
masoneilan control valves
| Tyre | Diameter | Number of diaphragm | Size of inlet diaphragm | Outlet orifice connection | weight(kg) | |
| mm | inch | |||||
| DMF-Z-20 | Dia. 20 | 3/4" | 1 | G3/4' | G3/4' | 0.62kg |
| DMF-Z-25 | Dia. 25 | 1" | 1 | G1' | G1' | 0.8kg |
| DMF-Z-40S | Dia. 40 | 1'1/2" | 2 | G1'1/2" | G1'1/2" | 1.4kg |
| DMF-Z-50S | Dia. 50 | 2" | 2 | G2'1/2" | G2" | 2.7kg |
| DMF-Z-40S | Dia. 62 | 2'1/2" | 2 | G2'1/2" | G2'1/2" | 3.5kg |
| DMF-Z-40S | Dia. 76 | 3" | 2 | G3" | G3" | 4.3kg |
| DMF-Z-40S | Dia. 20 | 3/4" | 1 | G3/4" | Dia.27 | 0.75kg |
masoneilan control valves
TECHNICALI PARAMETERS
Working pressure 0.4MPa~0.6pa
Working Media Clean Air
Voltage DC24V A C110V A C220V
Voltage 0.8A 0.46A 0.23A
Use Enviroment -25~55 °C 55~180 °C
Diaphragm life: 3 years
MATERICAL CONSTRUCTION
BODY ADC12 DIECAST ALUMINIUM
Armature:430FR Stainless Steel
Diaphragm Seals: Nitrile
Spring:321 Stainless Steel
Screws:302 Stainless Steel
masoneilan control valves picture detail as above:
