Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
OEM, SIMO OEM
-
Model Number:
-
Z2-92
-
Torque:
-
7.0
-
Protection rating:
-
IP21, IP21S, IP23 or else
-
Insulation class:
-
B or F
-
Cooling type:
-
IC06 or else
-
Shaft type:
-
double-shaft(dual-shaft)
-
Mounting:
-
B3, B35, V1 or else
-
Motor type:
-
DC brush motor
-
Winding:
-
Copper Wire
-
Color:
-
Blue, gray or else
-
Application:
-
Electric driving
Quick Details
-
Speed(RPM):
-
1200rm
-
Continuous Current(A):
-
323/160.5
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
OEM, SIMO OEM
-
Model Number:
-
Z2-92
-
Torque:
-
7.0
-
Protection rating:
-
IP21, IP21S, IP23 or else
-
Insulation class:
-
B or F
-
Cooling type:
-
IC06 or else
-
Shaft type:
-
double-shaft(dual-shaft)
-
Mounting:
-
B3, B35, V1 or else
-
Motor type:
-
DC brush motor
-
Winding:
-
Copper Wire
-
Color:
-
Blue, gray or else
-
Application:
-
Electric driving

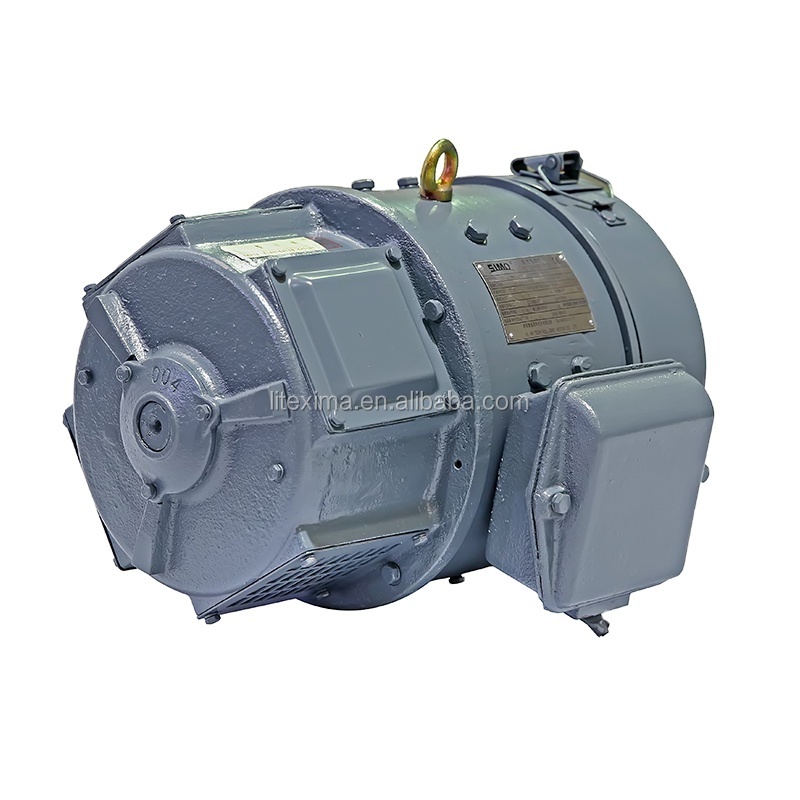

New Listing High Stability 100hp Dc Motor Dc Motor 75kw Dc Motor 20kw Z2-92
|
|
|||||||
| Type |
Rated Output kW |
Rated Voltage (V) |
Rated Current (A) |
Weak-magnet Max.Speed (rpm) |
Eff (%) |
Moment of Flywheel (KG-m³) |
Weight kg |
| Z2-92 | 75 | 220 | 385 | 2000 | 88 | 7.0 | 685 |
| 75 | 220 | 385 | 2000 | 88.5 | |||
Drawing: Horizontal Mounting with feet
Mounting dimension(mm)
| Framesize | Mounting Dimension(mm) | Contour Dimensiou | ||||||||||||||||
| A | A/2 | B | C | D | D2 | E | E2 | H | K | F | F1 | G | G1 | b1 | B2 | h | L1 | |
| 92 | 550 | 275 | 455 | 149 | 65 | 60 | 140 | 140 | 315 | 24 | 18 | 18 | 57.9 | 52.9 | 453.5 | 335 | 696 | 1050 |
