1. Used for Upvc window profile corner welding
2. Most economical PVC window welding machinery for limit budge investor.
3. PLC controlled machinery working.
4. Degree welding, V welding ,30—180 degree is possible on this machine.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
100 sets/month
-
Power:
-
1.2 kw
-
Dimension(L*W*H):
-
760*900 *1700 mm
-
Name:
-

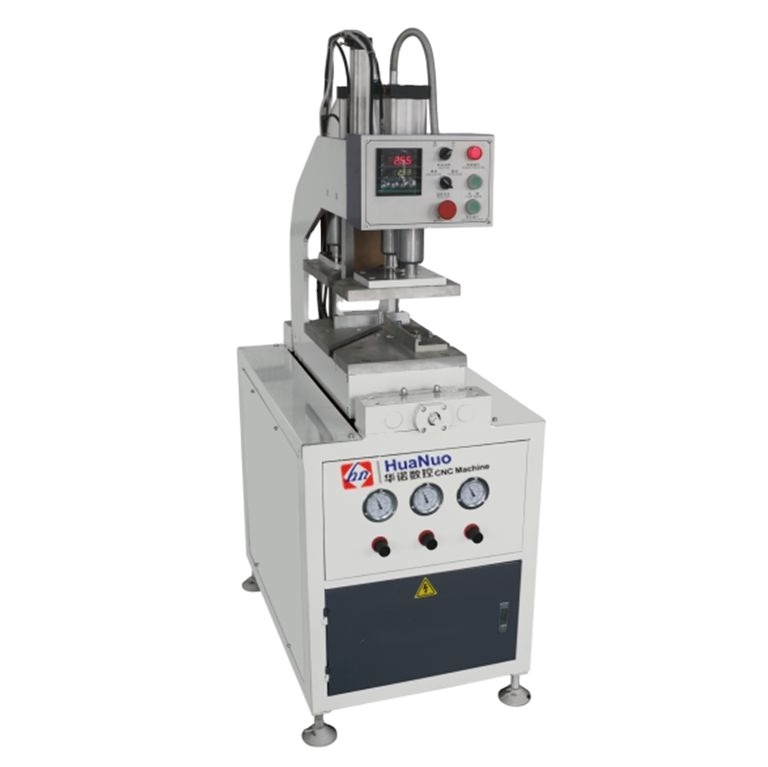

Single Head Welding Machine UPVC Window Machine
-
Application:
-
PVC Window Profile
-
Air pressure:
-
0.5-0.8 MPa
-
Air consumption:
-
50 L/min
-
OVERALL DIMENSION:
-
760*690*1700 mm
-
Input Voltage:
-
220 V/ 50Hz
-
Input Power:
-
1.2 kw
-
Welding height:
-
25-120 mm
-
Welding width:
-
120 mm
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Voltage:
-
220 V/50 Hz
-
Weight:
-
188 kg, 260 kg
-
Production Capacity:
-
100 sets/month
-
Power:
-
1.2 kw
-
Dimension(L*W*H):
-
760*900 *1700 mm
-
Name:
-
Single Head Welding Machine UPVC Window Machine
-
Application:
-
PVC Window Profile
-
Air pressure:
-
0.5-0.8 MPa
-
Air consumption:
-
50 L/min
-
OVERALL DIMENSION:
-
760*690*1700 mm
-
Input Voltage:
-
220 V/ 50Hz
-
Input Power:
-
1.2 kw
-
Welding height:
-
25-120 mm
-
Welding width:
-
120 mm
|
Technical Parameter
|
||
|
Ø Input voltage
|
220V/50Hz(As Required)
|
|
|
Ø Input power
|
1.2Kw
|
|
|
Ø Air pressure
|
0.5~0.8Mpa
|
|
|
Ø Air consumption
|
50L/min
|
|
|
Ø Welding height
|
25~100/120mm
|
|
|
Ø Welding width
|
120mm
|
|
|
Ø Overall dimension
|
960*560*1660mm
|
|
Company
Jinan Huashinuo CNC Machinery Co.,Ltd is a modern private enterprise specialized in technology development ,machinery manufacture and product sales .Main products include aluminum win-door making machine ,upvc win-door making machine and insulating glass production line and so on. Our engineers have 15 years of experience in machine fabrication, which makes the precision and stability better than others. After machine production finished, the products will be tested in professional ways make sure its performance. If you are window fabricator, looking for new machine for business expansion.If you have interest to set up window production line as your new business.Or you have any questions about window machine. Huanuo team is here, ready for support. press "send", let's start !!!
