Quick Details
-
Dimension(L*W*H):
-
600*800*600MM
-
Weight (T):
-
2 T
-
Power (kW):
-
150
-
Product name:
-

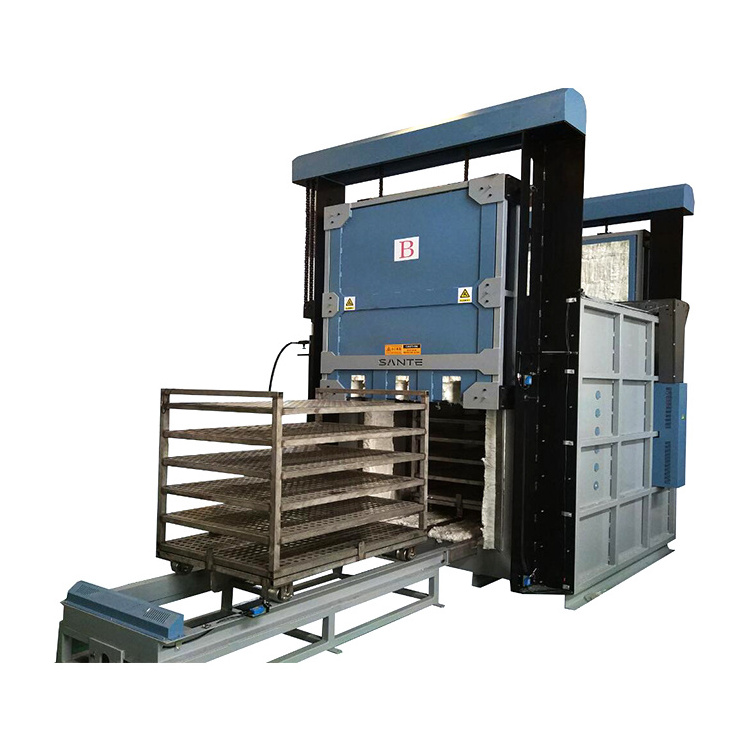

Electric resistance Bogie Hearth / Car Bottom heat treatment furnace
-
Application:
-
Annealing
-
Chamber size:
-
600x800x600mm
-
Working temperature:
-
1200C
-
Heating element:
-
HRE
-
Power supply:
-
380V/50Hz-60Hz
-
Temperature control:
-
1C/-1C
-
Thermocouple:
-
N type
-
OEM:
-
YES
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SAFTHERM
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
600*800*600MM
-
Weight (T):
-
2 T
-
Power (kW):
-
150
-
Product name:
-
Electric resistance Bogie Hearth / Car Bottom heat treatment furnace
-
Application:
-
Annealing
-
Chamber size:
-
600x800x600mm
-
Working temperature:
-
1200C
-
Heating element:
-
HRE
-
Power supply:
-
380V/50Hz-60Hz
-
Temperature control:
-
1C/-1C
-
Thermocouple:
-
N type
-
OEM:
-
YES
| Model | STT-288-12 | STT-640-12 | STT-1200-12 | STT-2288-12 |
| Chamber Size mm (W*D*H) | 600x800x600 | 800x1000x800 | 1000x1200x1000 | 1300x1600x1100 |
| Power supply | 220V/30KW | 220V/70KW | 220V/120KW | 380V/180KW |
| Type | Bogie Hearth furnace | |||
| Usage | The product is suitable for elemental analysis, measurement and large size steel hardening, annealing, tempering, heat treatment and heating in laboratory, industrial and mining enterprises, scientific research units, can also be used for sintering of metal, stone, ceramic, dissolution analysis of high-temperature heating. | |||
| Furnace structure |
1. Furnace Chamber consists of furnace material, thermal insulation material and heating elements.
2. Temperature control system consists of temperature control instruments, control elements and thermocouples. 3. Furnace body and temperature control center designed in separate structure. Furnace electrical lifting opening and closing is very labor-saving and fast. |
|||
| Max. temperature | 1200℃ | |||
| Working temperature | 1100℃ | |||
| Heating Rate | ≤25℃/min (suggest 15℃/min for longer life using of furnace) | |||
| Heating Element | It uses high temperature alloy resistance wire as heating element, wearing on the cermaic tubes, continuous service life of 8000 hours. | |||
| Chamber material |
1. Furnace Lining: Furnace material is 1400℃ high-purity Light Mullite bricks, high temperature without powder dropping, good thermal shock performance and thermal stability, low heat capacity, low thermal conductivity, energy saving more than 50%.
2. Thermal Insulation Material: The furnace is insulated by polycrystalline alumina ceramic fibers with temperature resistance of 1260℃ |
|||
| Temp. Uniformity | ±10°C | |||
| Thermocouple | type N, two testing points, testing from its back wall | |||
| Temperature Controller |
1. Japan SHIMADEN intelligent microcomputer PID temperature control instrument,
2. Germany SEMIKRON SCR controller thyristor phase shift voltage control, PID parameter self-tuning function, over temperature alarm and break alarm function; programmable 30 time slots, automatic temperature rise, automatic heat preservation, automatic stop, can meet the requirements of continuous constant temperature and temperature control; 3. The voltage loop participates in the regulation, the output current of the voltage regulator is limited to the rated current range, and the output current and voltage are kept constant; 4. the protection of the heating element avoids the impact of excessive current and voltage, and achieves safe and reliable control effect and control precision. 5. Temperature controller Accuracy: ±1℃ |
|||
| Electronic component | SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc. | |||
| Furnace Shell |
1. High quality cold-rolled steel sheets CNC processing
2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. 3. Energy efficient insulation keeps exterior safe to touch |
|||
| Hydraulic system | This equipment is provided with 1 hydraulic cylinder for lifting and 4 hydraulic cylinders for opening and closing of furnace door. And the hydraulic system is mainly for these hydraulic cylinders to provide power | |||
| Trolley system | It is composed of trolley shell, lining plate, furnace bottom plate, trolley mechanism, etc. Mainly used to place the workpieces and the operation of carry in and carry out | |||
| Safety Precautions |
1 Modular control, which can send out sound and light alarm signals when over-temperature and breakage occur in the working process, and automatically complete the protection movement;
2 Equipped with an open circuit breaker on the equipment, it will pop up automatically in case of short circuit leakage, which can protect the equipment and safety of operating staff. |
|||
| Supply Scope |
1. Industrial Hardening Furnace Body with heating elements
5. Hydrolic lifting system
9. One set of wire shield
|
|||
| Optional Accessories |
1. Extra heaters
2. Alumina crucibles |
|||
| Certification | ISO9001 CE SGS | |||
| Warranty |
1. One year of equipment quality guarantee (excluding vulnerable parts: resistance wire, thermocouple, etc.).
|
|||
Standard Export Safe Packing:
1.The furnace was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
Delivery Time: 30 working days against receiving advanced payment
Port: Shanghai/Qingdao
