Quick Details
-
Model Number:
-
WSS-311
-
Product name:
-

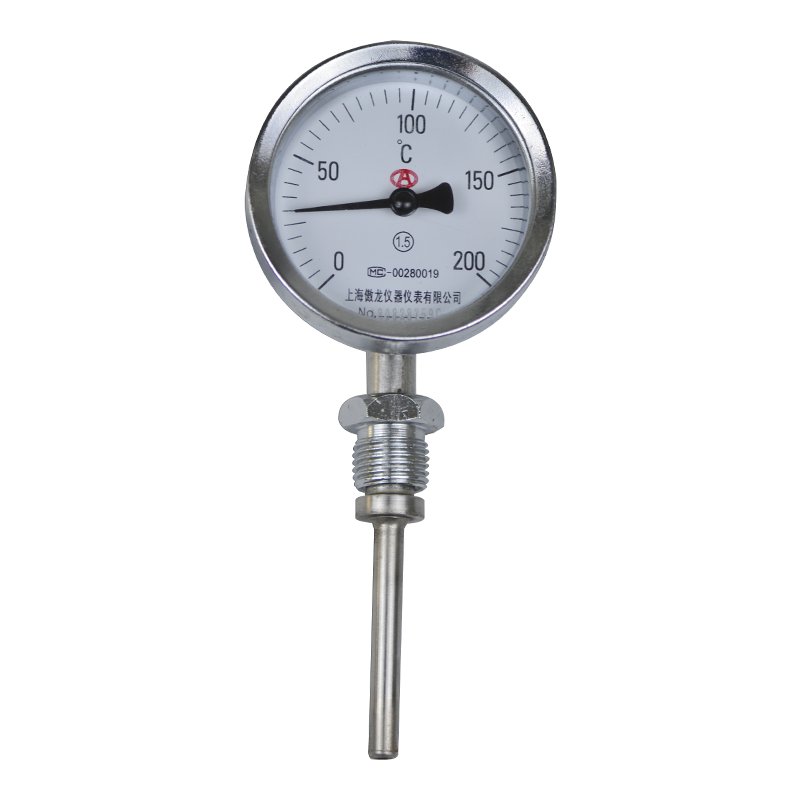

Bimetal thermometer
-
Application:
-
Industrial Temperature Measuring
-
Type:
-
Waterproof
-
Material:
-
Stainless Steel
-
Temperature range:
-
-200~600(customizable)
-
Feature:
-
High Accuracy
-
Function:
-
C/F
-
Theory:
-
Bimetal
-
Accuracy:
-
1.5% (1%)
-
Name:
-
Industrial Bimetal Thermometer
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Aolong
-
Model Number:
-
WSS-311
-
Product name:
-
Bimetal thermometer
-
Application:
-
Industrial Temperature Measuring
-
Type:
-
Waterproof
-
Material:
-
Stainless Steel
-
Temperature range:
-
-200~600(customizable)
-
Feature:
-
High Accuracy
-
Function:
-
C/F
-
Theory:
-
Bimetal
-
Accuracy:
-
1.5% (1%)
-
Name:
-
Industrial Bimetal Thermometer
Product Description
Specification
|
Essential details
|
|
|
Dial size
|
ø60 ø80 ø100 ø150 (mm)
|
|
Case
|
AISI 304 stainless steel, AISI 316 stainless steel and AISI316L stainless steel is Available.
|
|
Lens
|
Glass standard, Shatterproof Glass Len is Available
|
|
Bezel
|
AISI 304 stainless steel, AISI 304 stainless steel, AISI 316 stainless steel and AISI 316L stainless steel is available. Crimp ring or bayonet ring
|
|
Stem Materials
|
AISI 304 stainless steel, AISI 316 stainless steel and AISI316L stainless steel is Available
|
|
Stem Diameter
|
ø6 ø8 ø10 ø12 and others (mm)
|
|
Pointer
|
Aluminum, painted black
|
|
Movement
|
Bi-metallic coil
|
|
Connection
|
Bi-metallic coil
|
|
Accuracy
|
+/-1.5% full scale standard; +/-1% full Scale Available
|
|
Range
|
-200~600C, -328~1112F is available
|
Product Paramenters
|
Products Paramenters
|
|
|
|
|
||||
|
Temperature range °C: Any interval from -200°C to 600°C is available
|
|
|
|
|
||||
|
Accuracyc: 1.5%, 1% is available
|
|
|
|
|
||||
|
Protection tube material: Hastelloy C-276/304/ 316/ 316L/ 1Cr18Ni9Ti
|
|
|
|
|
||||
|
Model
|
Specification
|
|
Structure
|
Installation method
|
||||
|
|
D
|
L
|
|
|
||||
|
WSS-300
|
ø 60
|
Any length is available
|
Axial
|
No
|
||||
|
WSS-301
|
|
|
Axial
|
Movable externalthread
|
||||
|
WSS-302
|
|
|
Axial
|
Movable internalthread
|
||||
|
WSS-303
|
|
|
Axial
|
Fixed thread
|
||||
|
WSS-304
|
|
|
Axial
|
Fixed flange
|
||||
|
WSS-305
|
|
|
Axial
|
Bulkhead thread
|
||||
|
WSS-306
|
|
|
Axial
|
Movable flange
|
||||
|
WSS-310
|
|
|
Radial
|
No
|
||||
|
WSS-311
|
|
|
Radial
|
Movable externalthread
|
||||
|
WSS-312
|
|
|
Radial
|
Movable internalthread
|
||||
|
WSS-313
|
|
|
Radial
|
Fixed thread
|
||||
|
WSS-314
|
|
|
Radial
|
Fixed flange
|
||||
|
WSS-315
|
|
|
Radial
|
Bulkhead thread
|
||||
|
WSS-316
|
|
|
Radial
|
Movable flange
|
||||
|
WSS-320
|
|
|
135° angle
|
No
|
||||
|
WSS-321
|
|
|
135° angle
|
Movable externalthread
|
||||
|
WSS-322
|
|
|
135° angle
|
Movable internalthread
|
||||
|
WSS-323
|
|
|
135° angle
|
Fixed thread
|
||||
|
WSS-324
|
|
|
135° angle
|
Fixed flange
|
||||
|
WSS-325
|
|
|
135° angle
|
Bulkhead thread
|
||||
|
WSS-326
|
|
|
135° angle
|
Movable flange
|
||||
|
WSS-380
|
|
|
Adjustable angle
|
No
|
||||
|
WSS-381
|
|
|
Adjustable angle
|
Movable externalthread
|
||||
|
WSS-382
|
|
|
Adjustable angle
|
Movable internalthread
|
||||
|
WSS-383
|
|
|
Adjustable angle
|
Fixed thread
|
||||
|
WSS-384
|
|
|
Adjustable angle
|
Fixed flange
|
||||
|
WSS-385
|
|
|
Adjustable angle
|
Bulkhead thread
|
||||
|
WSS-386
|
|
|
Adjustable angle
|
Movable flange
|
||||
|
WSS-400
|
ø100
|
|
Axial
|
No
|
||||
|
WSS-401
|
|
|
Axial
|
Movable externalthread
|
||||
|
WSS-402
|
|
|
Axial
|
Movable internalthread
|
||||
|
WSS-403
|
|
|
Axial
|
Fixed thread
|
||||
|
WSS-404
|
|
|
Axial
|
Fixed flange
|
||||
|
WSS-405
|
|
|
Axial
|
Bulkhead thread
|
||||
|
WSS-406
|
|
|
Axial
|
Movable flange
|
||||
|
WSS-410
|
|
|
Radial
|
No
|
||||
|
WSS-411
|
|
|
Radial
|
Movable externalthread
|
||||
|
WSS-412
|
|
|
Radial
|
Movable internalthread
|
||||
|
WSS-413
|
|
|
Radial
|
Fixed thread
|
||||
|
WSS-414
|
|
|
Radial
|
Fixed flange
|
||||
|
WSS-415
|
|
|
Radial
|
Bulkhead thread
|
||||
|
WSS-416
|
|
|
Radial
|
Movable flange
|
||||
|
WSS-420
|
|
|
135° angle
|
No
|
||||
|
WSS-421
|
|
|
135° angle
|
Movable externalthread
|
||||
|
WSS-422
|
|
|
135° angle
|
Movable internalthread
|
||||
|
WSS-423
|
|
|
135° angle
|
Fixed thread
|
||||
|
WSS-424
|
|
|
135° angle
|
Fixed flange
|
||||
|
WSS-425
|
|
|
135° angle
|
Bulkhead thread
|
||||
|
WSS-426
|
|
|
135° angle
|
Movable flange
|
||||
|
WSS-480
|
|
|
Adjustable angle
|
No
|
||||
|
WSS-481
|
|
|
Adjustable angle
|
Movable externalthread
|
||||
|
WSS-482
|
|
|
Adjustable angle
|
Movable internalthread
|
||||
|
WSS-483
|
|
|
Adjustable angle
|
Fixed thread
|
||||
|
WSS-484
|
|
|
Adjustable angle
|
Fixed flange
|
||||
|
WSS-485
|
|
|
Adjustable angle
|
Bulkhead thread
|
||||
|
WSS-486
|
|
|
Adjustable angle
|
Movable flange
|
||||
|
WSS-500
|
ø 150
|
|
Axial
|
No
|
||||
|
WSS-501
|
|
|
Axial
|
Movable externalthread
|
||||
|
WSS-502
|
|
|
Axial
|
Movable internalthread
|
||||
|
WSS-503
|
|
|
Axial
|
Fixed thread
|
||||
|
WSS-504
|
|
|
Axial
|
Fixed flange
|
||||
|
WSS-505
|
|
|
Axial
|
Bulkhead thread
|
||||
|
WSS-506
|
|
|
Axial
|
Movable flange
|
||||
|
WSS-510
|
|
|
Radial
|
No
|
||||
|
WSS-511
|
|
|
Radial
|
Movable externalthread
|
||||
|
WSS-512
|
|
|
Radial
|
Movable internalthread
|
||||
|
WSS-513
|
|
|
Radial
|
Fixed thread
|
||||
|
WSS-514
|
|
|
Radial
|
Fixed flange
|
||||
|
WSS-515
|
|
|
Radial
|
Bulkhead thread
|
||||
|
WSS-516
|
|
|
Radial
|
Movable flange
|
||||
|
WSS-520
|
|
|
135° angle
|
No
|
||||
|
WSS-521
|
|
|
135° angle
|
Movable externalthread
|
||||
|
WSS-522
|
|
|
135° angle
|
Movable internalthread
|
||||
|
WSS-523
|
|
|
135° angle
|
Fixed thread
|
||||
|
WSS-524
|
|
|
135° angle
|
Fixed flange
|
||||
|
WSS-525
|
|
|
135° angle
|
Bulkhead thread
|
||||
|
WSS-526
|
|
|
135° angle
|
Movable flange
|
||||
|
WSS-580
|
|
|
Adjustable angle
|
No
|
||||
|
WSS-581
|
|
|
Adjustable angle
|
Movable externalthread
|
||||
|
WSS-582
|
|
|
Adjustable angle
|
Movable internalthread
|
||||
|
WSS-583
|
|
|
Adjustable angle
|
Fixed thread
|
||||
|
WSS-584
|
|
|
Adjustable angle
|
Fixed flange
|
||||
|
WSS-585
|
|
|
Adjustable angle
|
Bulkhead thread
|
||||
|
WSS-586
|
|
|
Adjustable angle
|
Movable flange
|
||||
