Welcome to visit our factory and test our machines' quality, Sincerely.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
3KW, AC/DC battery/diesel
-
Min. Lifting Height:
-
1750mm
-
Table Size:
-
2550x1530mm
-
Overall Dimensions:
-
2796x1670x1750mm
-
Weight:
-
2260 kg
-
Marketing Type:
-
Hot Product
-
Product name:
-
hydraulic sky lift
-
Working pressure:
-
≤12Mpa
-
Supporting les:
-
manual type
-
Control mode:
-
electric up-down
-
Upper platform:
-
anti-skid insulating
-
Paint:
-
electrostatic spraying
-
Guardrail:
-
folding and removable
-
Guardrail height:
-
1000mm
-
Movement of man lift:
-
towable
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SUN-LIFT
-
Power:
-
3KW, AC/DC battery/diesel
-
Min. Lifting Height:
-
1750mm
-
Table Size:
-
2550x1530mm
-
Overall Dimensions:
-
2796x1670x1750mm
-
Weight:
-
2260 kg
-
Marketing Type:
-
Hot Product
-
Product name:
-
hydraulic sky lift
-
Working pressure:
-
≤12Mpa
-
Supporting les:
-
manual type
-
Control mode:
-
electric up-down
-
Upper platform:
-
anti-skid insulating
-
Paint:
-
electrostatic spraying
-
Guardrail:
-
folding and removable
-
Guardrail height:
-
1000mm
-
Movement of man lift:
-
towable
Product Description
Factory Selling
vertical electric scissor lift indoor one man mobile scaffolding scissor lift scaffold hydraulic sky lift
With CE
The sky lift is the extensive use of special equipment for high-altitude operation. Its scissor mechanical structure makes the lifting platform lifting up more stability, wide work platform and high bearing capacity which makes work scope larger and load many people to work at the same time. It makes aerial work more efficient, safe and more security. It is mainly used for the station, wharf, bridge, hall, building indoor and outdoor machinery installation, equipment maintenance, building maintenance. It has solid structure, low failure rate, reliable, safe and efficient operation, simple maintenance, which is good helper for finishing aerial work conveniently.
Main Features
A.
Made of high intensity manganese steel tubes, never deformed.
B.
Antiskid upper platform plate and 1000mm height guardrail to guarantee opertor's safety.
C.
Anti explosion valve to prevent upper platform from dropping suddenly when any emergency .You can open the emergency decline valve to lower the platform to the home position.
D.
Spillover valve: It can prevent high pressure when the machine moves up to adjust work pressure.
E.
Special made casting steel hinge ear, well wearable , with a long serve life.
|
Specifications
for hydraulic aerial work platform lifts elevator scissor personal lift table
|
|
|
|
|
|
|
||||||
|
Model
|
Platform height
|
Rated capacity
|
Platform size
|
Overall size
|
Weight
|
Weight
|
||||||
|
SJY0.3-4
|
4m
|
500kg
|
2100*820mm
|
2200*980*1100mm
|
850kg
|
AC or DC or Diesel
|
||||||
|
SJY0.3-6
|
6m
|
500kg
|
2100*820mm
|
2200*950*1200mm
|
900kg
|
AC or DC or Diesel
|
||||||
|
SJY0.3-7
|
7m
|
500kg
|
2100*820mm
|
2200*950*1280mm
|
950kg
|
AC or DC or Diesel
|
||||||
|
SJY0.3-8
|
8m
|
500kg
|
2100*900mm
|
2200*1060*1380mm
|
1100kg
|
AC or DC or Diesel
|
||||||
|
SJY0.3-9
|
9m
|
500kg
|
2100*900mm
|
2200*1060*1500mm
|
1260kg
|
AC or DC or Diesel
|
||||||
|
SJY0.3-10
|
10m
|
500kg
|
2100*1200mm
|
2200*1350*1530mm
|
1500kg
|
AC or DC or Diesel
|
||||||
|
SJY0.3-11
|
11m
|
500kg
|
2100*1200mm
|
2200*1400*1650mm
|
1700kg
|
AC or DC or Diesel
|
||||||
|
SJY0.3-12
|
12m
|
500kg
|
2550*1500mm
|
2720*1670*1750mm
|
2480kg
|
AC or DC or Diesel
|
||||||
|
SJY0.3-14
|
14m
|
500kg
|
2550*1500mm
|
2800*1800*1950mm
|
2800kg
|
AC or DC or Diesel
|
||||||
|
SJY0.3-16
|
16m
|
300kg
|
3220*1650mm
|
3600*1950*2200mm
|
4500kg
|
AC or DC or Diesel
|
||||||
|
SJY0.3-18
|
18m
|
300kg
|
3220*1650mm
|
3600*1950*2400mm
|
4800kg
|
AC or DC or Diesel
|
||||||
NOTE:
Please tell us the following, then we will send our exact quotation and design drawing to you asap
· Max platform height ?
· Max. loading capacity?
· Power (AC or DC battery or Diesel)?
Certifications

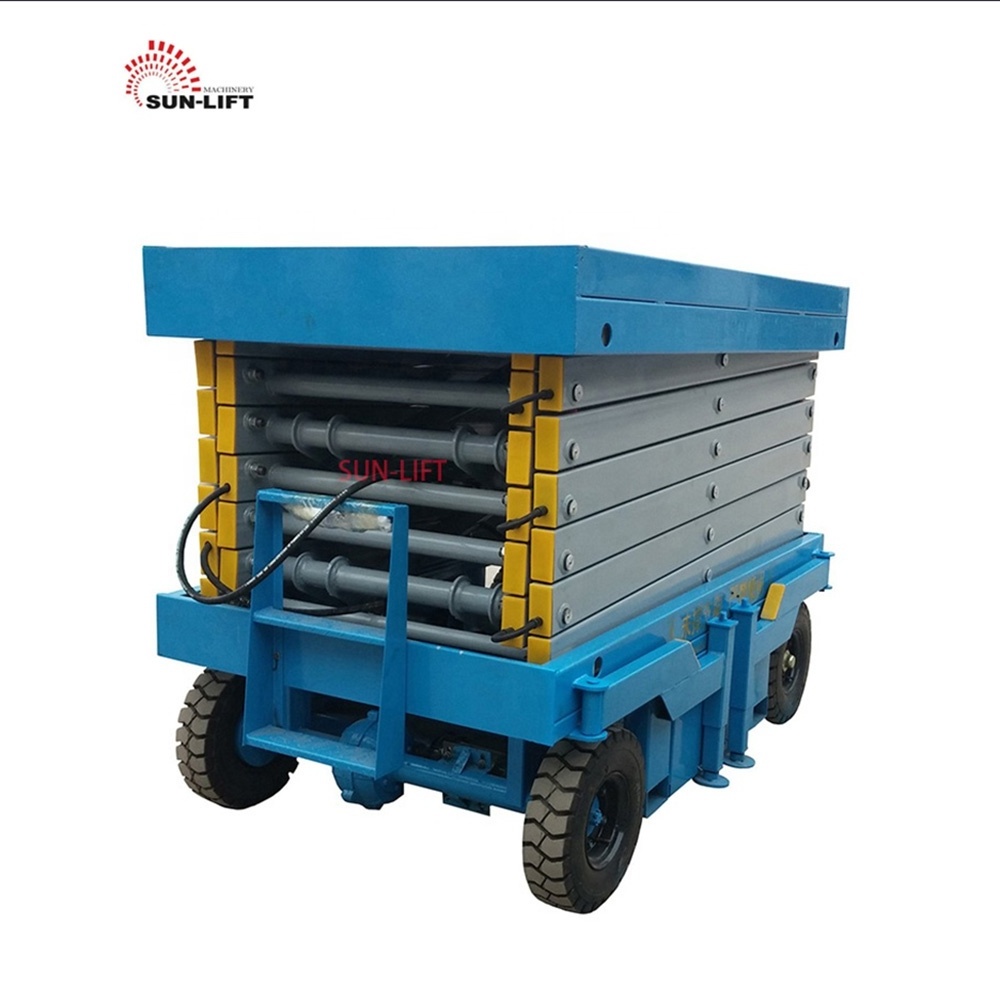

Detailed Images
Our Service
JINAN LIFT LIFTING MACHINERY CO.,LTD
is the professional manufacturer of hydraulic lifts for 8 years. Our factory covers 78500 square meters and has a series of modern production equipments, like auto cuttingequipment, automatic equipment, automatic abrasive blasting production rust removal line. spray paint line, automatic welding robot and so on. We have been exporting to different many countries for 5 years.
Pre-Sales Service
* Technical supports and suggestions before you order a machine according to your work place.
* All the machines will be full tested before shipments
* View our Factory.
After-Sales Service
* Operation manual and training how to use the machine.
* Engineers available to service machinery overseas.
* 12 months warranty period and we will provide the consumable parts at cost price after the warranty period
* 24-hour technical support by emails, calling or videos
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
as per special model
|
|
|
Weight
|
as per special model
|
|
|
Packaging Details
|
The normal package is plywood case.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
