Quick Details
-
Product name:
-
CZE-05B FM Transmitter
-
RF output:
-
50mW
-
Power Voltage:
-
DC12V
-
Operating Current:
-
Less than 0.5A
-
FM Range:
-
76~108MHz
-
Antenna Connector:
-
BNC Type
-
RF output impedance:
-
50 Ohm
-
Frequency stabilization method:
-
PLL Frequency Synthesizer
-
Frequency stability:
-
± 10 ppm (-10 °C to +60 °C )
-
Frequency Response:
-
40KHz - 15KHz ± 0.2dB (stereo)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
N/A
-
Model Number:
-
CZE-05B FM Transmitter
-
Product name:
-
CZE-05B FM Transmitter
-
RF output:
-
50mW
-
Power Voltage:
-
DC12V
-
Operating Current:
-
Less than 0.5A
-
FM Range:
-
76~108MHz
-
Antenna Connector:
-
BNC Type
-
RF output impedance:
-
50 Ohm
-
Frequency stabilization method:
-
PLL Frequency Synthesizer
-
Frequency stability:
-
± 10 ppm (-10 °C to +60 °C )
-
Frequency Response:
-
40KHz - 15KHz ± 0.2dB (stereo)
Introduction:
This FM stereo transmitter that can be used for factories, schools, supermarkets, farms, or create your own radio station.
Equipment using advanced modulation system and built-in PLL frequency, audio pre-emphasis, limiter, and low-pass filter circuit.
The Control circuit board design and amplifier design to reduce noise, so sound quality is even better Well-shielded, compact structure, small size, generous appearance, plug and play, very easy to use.
Specification:
Power supply voltage: DC 12V
Operating current: Less than 0.5A
Frequency range: 76 - 108Mhz
Frequency step: 0.1mHz
Frequency stabilization method: PLL Frequency Synthesizer
Modulation: FM Stereo
Frequency stability: ± 10 ppm (-10 °C to +60 °C )
Frequency deviation: Less than ± 75kHz (100%)
Working method: Continuous
Clutter and Harmonic: Less than -60dB
SNR: More than 60dB
Stereo channels crosstalk: -50dB
Frequency Response: 40KHz - 15KHz ± 0.2dB (stereo)
Audio frequency response: 80 to 15000Hz
Distortion: <0.3%
Modulation: 15%
Input level:-15dBV (adjustable)
RF output impedance: 50 Ohm
RF output power: 500mW (10MHz in the vicinity of the center frequency)
Reference range: 100m - 1Km (A barrier-free environment)

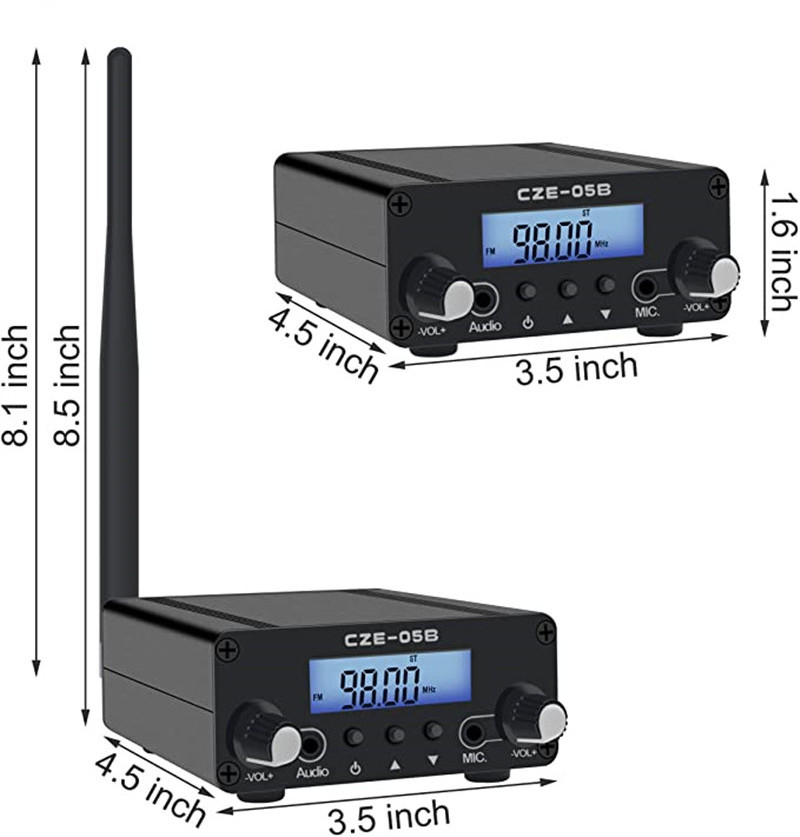

Unit dimensions: 147mm(L) * 88mm(W) * 38mm(H)
NOTE:
* Connect antenna first ,then connect the power supply, otherwise, transmitter will be burned out.
* Push the power button down and hold it then connect DC supply at the same time. When the LCD screen starts to display H or L, press "+" or "-" button to switch between H and L. "H" stands for 5w, L stands for 1W.
* Select an unused FM station in your area ,adjust any FM Radio to the signal that your are broadcasting on.
Package included:
1*CZE-05B FM Transmitter(Black)
1*DC12V Power supply
1*Rubber antenna
1*3.5mm stereo audio line
1*Packing box
