Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
- Product Details
- {{item.text}}
Quick Details
-
Name:
-
rotate tube furnace
-
Max. Temperature:
-
1200℃ (<2 hrs)
-
Working Temperature:
-
1100℃
-
Heating Rate:
-
0-20 ℃/min
-
Heating element:
-
Fe-Cr-Al-Mo wire
-
Rotary Speed:
-
15rpm
-
Vacuum Level:
-
as per need
-
Certification:
-
CE
-
Warranty:
-
1 Year
Quick Details
-
Brand Name:
-
Brother
-
Model Number:
-
BR-12NRT
-
Place of Origin:
-
Henan, China
-
Name:
-
rotate tube furnace
-
Max. Temperature:
-
1200℃ (<2 hrs)
-
Working Temperature:
-
1100℃
-
Heating Rate:
-
0-20 ℃/min
-
Heating element:
-
Fe-Cr-Al-Mo wire
-
Rotary Speed:
-
15rpm
-
Vacuum Level:
-
as per need
-
Certification:
-
CE
-
Warranty:
-
1 Year
Product Description

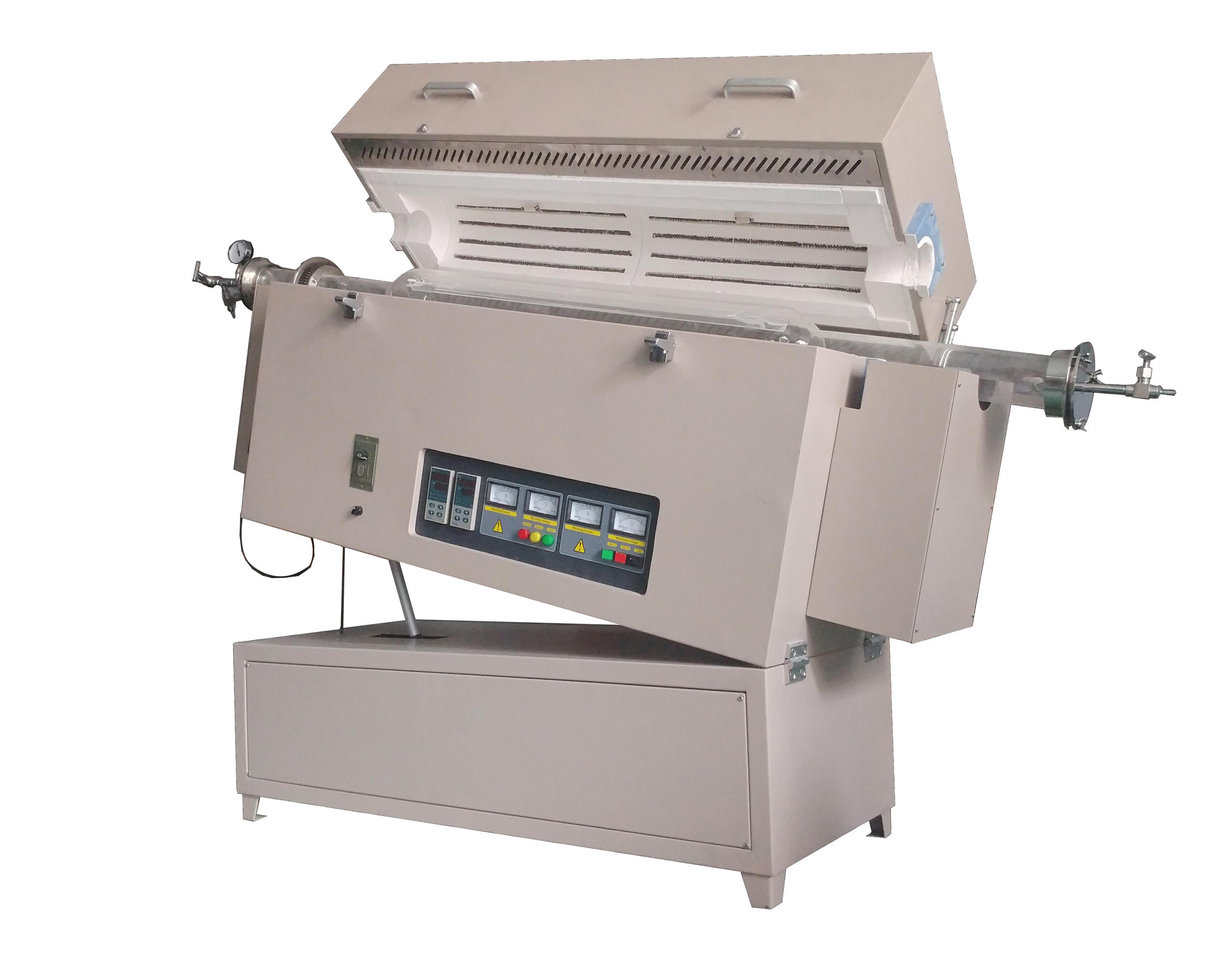

1200 Degree Electric Rotary Tube furnace Rotate Kiln with Vacuum Pump
Main Parameters:
|
|
|
|
|
|||
|
Tube Size
|
Customized
|
|
|
|||
|
Max. Temperature
|
1200℃ (<2 hrs)
|
|
|
|||
|
Working Temperature
|
≤1100℃
|
|
|
|||
|
Heating Rate
|
0~20℃/min (suggestion: ≤10℃/min)
|
|
|
|||
|
Vacuum Level
|
-0.1Mpa
|
|
|
|||
|
Vacuum System
|
Vacuum level can reach -0.1Mpa by quality mechanical vacuum pump. One vacuum/pressure gauge is installed on one side of flange. One pair of SS304 vacuum flange with double high temperature silicon O-ring is included. |
|
|
|||
|
Rotary Speed
|
0~15 rpm
|
|
|
|||
|
Heating Elements
|
Fe-Cr-Al alloy doped by Mo
|
|
|
|||
|
Thermocouple
|
"K" type
|
|
|
|||
|
Temperature Controller
|
50 segements programmable PID auto control (can be replaced by touch screen with addtional order) |
|
|
|||
|
Temperature Accuracy
|
±1℃
|
|
|
|||
|
Cooling system
|
Double shell with cooling fan
|
|
|
|||
|
Working Voltage
|
AC 220V/110V, Single Phase, 60/50Hz (or according to your requirement)
|
|
|
|||
Standard Size:
|
Model
|
Tube Diameter (mm)
|
Heating Zone Length (mm)
|
Tube Length (mm)
|
|
BR-12NRT-40/300
|
40
|
300
|
1000
|
|
BR-12NRT-60/300
|
60
|
300
|
1000
|
|
BR-12NRT-80/300
|
80
|
300
|
1000
|
|
BR-12NRT-100/300
|
100
|
300
|
1000
|
|
BR-12NRT-120/300
|
120
|
300
|
1000
|
|
BR-12NRT-40/450
|
40
|
450
|
1200
|
|
BR-12NRT-60/450
|
60
|
450
|
1200
|
|
BR-12NRT-80/450
|
80
|
450
|
1200
|
|
BR-12NRT-100/450
|
100
|
450
|
1200
|
|
BR-12NRT-120/450
|
120
|
450
|
1200
|
Product Photos:
Warranty
One year limited warranty with life time support. (Consumable parts such as heating elements and crucibles are not covered by the warranty, please order the replacement at related products)
ATTENTION:
Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty.
Our Company
Brief Introduction:
Zhengzhou Brother Furnace Co., Ltd. is one of the biggest manufacturer of various furance, MoSi2 heating element and SiC heating element in China. We have 8 senior engineers and 50 skilled workers, the cutting-edge producing equipment, the best producing technology and R&D ablities, to ensure perfect products and best after-service. Now the annual output of furnaces is more than 500 sets, and MoSi2 heating element is more than 30 tons, SiC heating element is more than 120 tons.
Our furnaces have been exported to 36 countries, like USA, UK, Australia, Brazil, Korea, Malaysia, Egypt… At the same time , we offer OEM to USA distributor of CVD tube furnace and dental sintering furnace. MoSi2 heating elements and SiC heating elements also win more and more customers from all over the world, and estabilished stable cooperation relationship.
High quality, fast delivery, best service are our continuous goal to our customers.
Certifications
Our Advantages
We are a leading manufacturer in China. So we can control the cost well.
We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
We supply good service after sale, you can be assured about that.
Our Service
Reply your inquiry and questions in 24 hours.
Our professional technicians answer all your questions in English.
Customized design is available.
Packing & Delivery
Packing:
Delivery:
