Quick Details
-
Certificate:
-
CE
-
Warranty:
-
3, 1year
-
Work Time (h):
-
24
-
name:
-
120V100A high power solar controller
-
LED display:
-
PWM multi-way charging
-
keyword:
-
120V100A high power solar controller
-
High stability:
-
Digital intelligent control: combine the hardware and software
-
Keyword:
-
120V100A high power solar controller
-
Battery type:
-
Lead Acid
-
Voltage:
-
120V
-
key word:
-
120V100A high power solar controller
-
keywords:
-
120V100A high power solar controller
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HENDA
-
Model Number:
-
3KW
-
Certificate:
-
CE
-
Warranty:
-
3, 1year
-
Work Time (h):
-
24
-
name:
-
120V100A high power solar controller
-
LED display:
-
PWM multi-way charging
-
keyword:
-
120V100A high power solar controller
-
High stability:
-
Digital intelligent control: combine the hardware and software
-
Keyword:
-
120V100A high power solar controller
-
Battery type:
-
Lead Acid
-
Voltage:
-
120V
-
key word:
-
120V100A high power solar controller
-
keywords:
-
120V100A high power solar controller
Why choose us?
Why choose us?

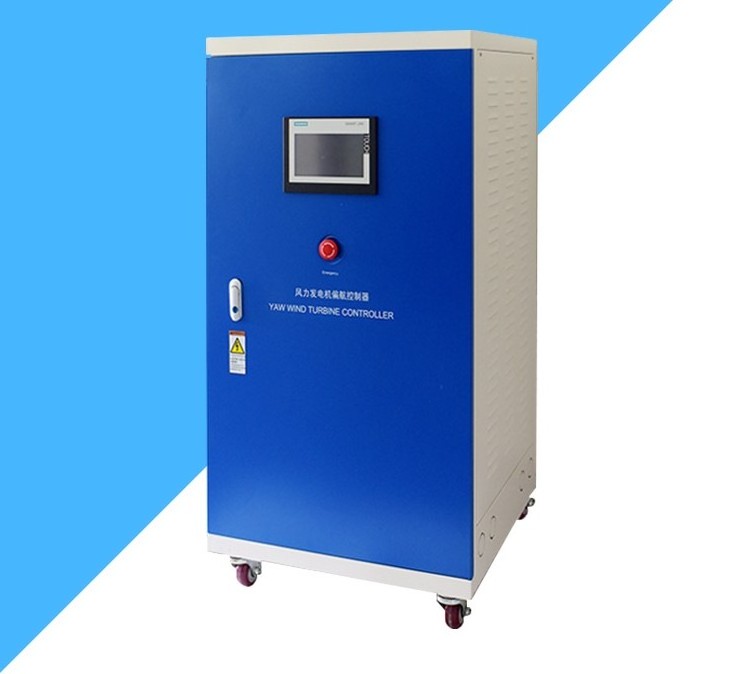

ESG High Performance 50KW 60kw 100kw On Grid Yaw Wind Turbine Generator Intelligent Controller
ESG High Performance 50KW 60kw 100kw On Grid Yaw Wind Turbine Generator Intelligent Controller
On grid Wind Turbine Controller
FKJ-GT (Grid-tie) model Product Characteristics
ESG High Performance 50KW 60kw 100kw On Grid Yaw Wind Turbine Generator Intelligent Controller
,
When the strong or super-strong wind conditions, the controller can conduct constant voltage
output to ensure the inverter safety running.
When the condition of disconnected grid-connected inverter, the controller can conduct
constant voltage output and wait for inverter resumption.
When the grid is cut off, the controller will automatically control wind turbine brake and the
inverter will stop output to grid. When the grid resuming, the controller stops brake wind
turbine and the inverter will resume power supply.
The inside of the controller is equipped with surge protector. Contain the over voltage into
the wind turbine under the bearable voltage of the equipment or system. On another way, to
conduct the strong lightening current into the earth directly to avoid any damage of
equipment.
|
Type |
FKJ-GT1.5KW |
FKJ-GT2KW |
FKJ-GT3KW |
|
Wind turbine rated power |
1.5KW |
2KW |
3KW |
|
Wind turbine Max. power |
3KW |
4KW |
6KW |
|
Wind turbine rated voltage |
AC220V |
AC220V |
AC220V |
|
*Solar panels power (optional) |
300W |
600W |
900W |
|
Function |
Rectifier, control, DC output |
||
|
Automatic protection function |
Over voltage protection, network electric cut off protection, regulated supply output, arrester |
||
|
Manual function |
Manual brake, reset, emergency switch |
||
|
Display mode |
LCD |
||
|
Display content |
Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power. |
||
|
PWM constant voltage |
≥320dc |
≥320dc |
≥320dc |
|
Wind turbine 3-phase dump load voltage |
350±5Vdc |
350±5Vdc |
350±5Vdc |
|
Wind turbine 3-phase dump load time-lapse |
12-20 min |
12-20 min |
12-20 min |
|
Solar panels fuse |
2A |
3A |
4A |
|
PWM dump load fuse |
10A |
10A |
16A |
|
Fuse of DC output |
16A |
16A |
20A |
|
Work environment temperature |
-30-60°C |
||
|
Relative humidity |
< 90% No condensation |
||
|
Noise (1m) |
< 40dB |
||
|
Degree of protection |
IP20 (Indoor) IP65 (Outdoors) |
||
|
Cooling method |
Forced air cooling |
||
|
*Communication interface (optional) |
RS485/USB/GPRS/WIFI/Ethernet |
||
|
*Temperature compensation (optional) |
-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C |
||
|
Size of the controller (mm) |
510*360*240 |
510*360*240 |
510*360*240 |
|
Weight of the controller |
15Kg |
17Kg |
17Kg |
|
Size of the dump load (mm) |
410*360*120 |
410*360*120 |
400*410*250 |
|
Weight of the dump load |
7Kg |
9Kg |
13Kg |
*Above parameter only for reference
1. Could be custom made to user specifications.
2, Could have solar power control subject to user demand.
Technical Parameters of the On Grid Wind Turbine (wind solar hybrid) Controller 1.5KW-3KW
