Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Liaison Quartz
-
Model Number:
-
LQ002
-
Color:
-
Clear
-
Product Name:
-

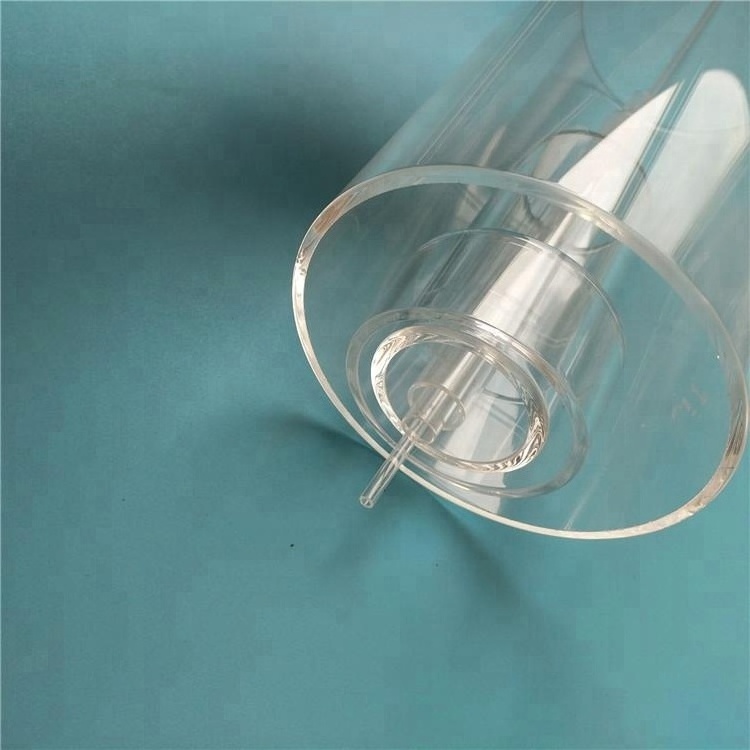

quartz glass tube replacement for patio heaters
-
Material:
-
SiO2
-
Density:
-
2.2g/cm3
-
Work temperature:
-
1100c
-
Purity:
-
99.9%
-
Wall thickness:
-
0.5-6.0mm
-
Package:
-
Wooden Cases
-
Length:
-
10-3000mm
-
Size:
-
Customised
-
brand:
-
liaison quartz
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
Laboratory Instrument,Lighting,heating
-
Outside Diameter:
-
3mm-350mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Liaison Quartz
-
Model Number:
-
LQ002
-
Color:
-
Clear
-
Product Name:
-
quartz glass tube replacement for patio heaters
-
Material:
-
SiO2
-
Density:
-
2.2g/cm3
-
Work temperature:
-
1100c
-
Purity:
-
99.9%
-
Wall thickness:
-
0.5-6.0mm
-
Package:
-
Wooden Cases
-
Length:
-
10-3000mm
-
Size:
-
Customised
-
brand:
-
liaison quartz
Safe Packing high quality good price quartz tubes
|
Physical properties |
|
|
SiO2 : |
99.99% |
|
Density : |
2.2(g/cm3) |
|
Degree of hardness mosh' scale : |
6.6 |
|
Coefficient of expansion 25--300℃ ℃-1 ( ×10-6 ) |
0.58 |
|
Melting point: |
1732°C |
|
Working temperature : |
Under 1100°C |
|
Max temperature can reach in a short time : |
1450°C |
|
Acid tolerance: |
30 times than Ceramics , 150 times than Stainless steel |
|
Visible light transmittance : |
above 93% |
|
UV spectral region transmittance: |
80% |
|
Resistance value : |
10000 times than ordinary glass |
|
Annealing point: |
1180°C |
|
softening point: |
1630°C |
|
Strain point: |
1100°C |
|
Dimension Tolerance(mm) |
|||||
|
Designation |
OD |
WT |
Max. Siding |
Max. Ovality |
Max. Bow |
|
1-3mm |
±0.05 |
±0.05 |
0.05 |
0.05 |
1‰ |
|
3-10mm |
±0.1 |
±0.1 |
0.1 |
0.15 |
2‰ |
|
10-20mm |
±0.2 |
±0.1 |
0.1 |
0.2 |
2‰ |
|
20-30 |
±0.2 |
±0.15 |
0.15 |
0.2 |
2‰ |
|
30-40 |
±0.4 |
±0.15 |
0.2 |
0.2 |
2‰ |
|
40-50 |
±0.5 |
±0.2 |
0.25 |
0.25 |
2‰ |
|
50-65 |
±0.6 |
±0.2 |
0.35 |
0.25 |
2.5‰ |
|
65-85 |
±0.8 |
±0.3 |
0.45 |
0.3 |
2.5‰ |
|
85-100 |
±1 |
±0.3 |
0.5 |
0.5 |
2.5‰ |
|
100-150 |
±1.5 |
±0.4 |
0.5 |
0.8 |
3‰ |
|
150-200 |
±2 |
±0.6 |
0.6 |
1 |
4‰ |
|
200-300 |
±3 |
±0.8 |
0.7 |
2 |
5‰ |
|
Spectral Transmission at 1.0mm Thickness |
||||||||
|
nm |
220 |
255 |
280 |
315 |
350 |
380 |
590 |
780 |
|
% |
89 |
91 |
93 |
93 |
93 |
93 |
93.2 |
93.4 |
|
Chemical Composition, unit: PPM |
||||||||
|
K+Na |
Ca |
Fe |
Al |
Mg |
Ti |
Ba |
Li |
Cu |
|
<10 |
<3 |
<1.5 |
<20 |
<1.0 |
<3.0 |
<0.2 |
<1.0 |
<0.5 |
Application of standard clear quartz tube: halogen lamp, mercury lamp, single end lamp,automobile lamp,stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing,quartz ware and pipe.
Application of Ultraviolet quartz tube :
Single-ended metal halide lamp,automobile metal halide lamp,G12 metal halide lamp, anti-explosion metal halide lamp, High power stage light and so on.
Application of free ozone quartz tube :
Kill germs free ozone light,the material of hospital ,family,and public place Ultraviolet kill germs,and water treatment.
Application of quartz rod : Linear light source products, light guide stick, light pipe, Fiber Lighting, Quartz fiber manufacturing,semiconductor silicon wafer, hollow half round.
Application of film coated quartz heater tube:
Instant Hot water heater, Alkaline water purifier, Electrothermal heater, Oven heating, Aquarium heater,Screen Printing, Drying, Sealing, Food Warming, Plastic Forming, Laminating.
General process of quartz tube :End closing-Cutting-Fire polished-Cleaning-Dring-Annealing-Cooling down-Inspecting-Packing
