Quick Details
-
Brand Name:
-
DELONG
-
Model Number:
-
304(L), 316(L)
-
Width:
-
1000 ~ 3000mm, 1000 ~ 3000mm
-
Length:
-
2000 ~ 6000mm, or as Request, 2000 ~ 6000mm, or as Request
-
Delivery Time:
-
7-14 Days
-
Port:
-
Tianjin /Shanghai China
-
Certification:
-
AiSi, ASTM, Bs, DIN, GB, JIS
-
Surface:
-
2B, No.1
-
Style:
-
Plate,sheet
Quick Details
-
Grade:
-
304, 304L, 316, 316L
-
Tolerance:
-
±1%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DELONG
-
Model Number:
-
304(L), 316(L)
-
Width:
-
1000 ~ 3000mm, 1000 ~ 3000mm
-
Length:
-
2000 ~ 6000mm, or as Request, 2000 ~ 6000mm, or as Request
-
Delivery Time:
-
7-14 Days
-
Port:
-
Tianjin /Shanghai China
-
Certification:
-
AiSi, ASTM, Bs, DIN, GB, JIS
-
Surface:
-
2B, No.1
-
Style:
-
Plate,sheet
Products Description

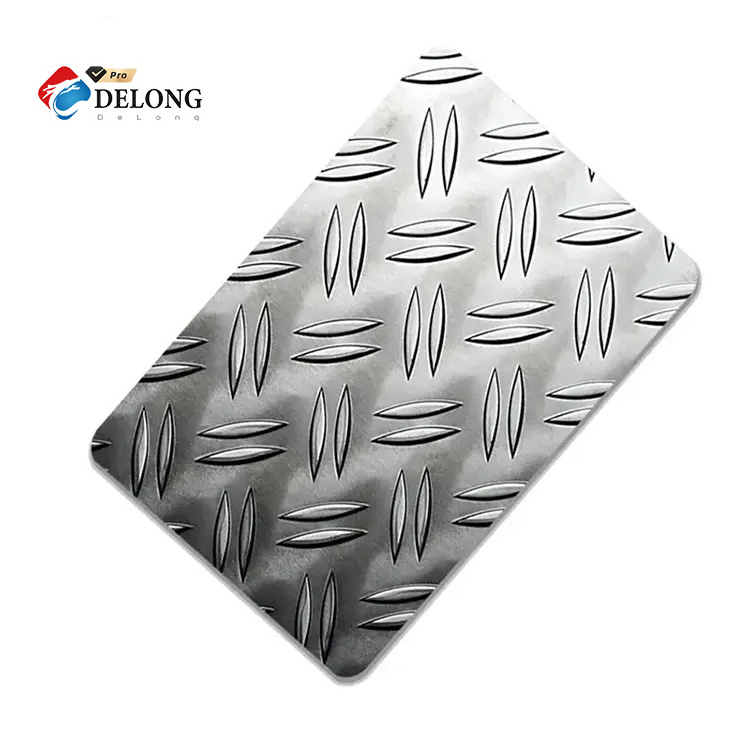

Stainless steel diamond plate also known as stainless floor sheet or stainless steel checkered sheet, stainless thread sheet, has a raised diamond lug pattern, functioning skidproof and anticorrosive.
DELONG Metal aims to provide customers with different patterns. We can manufacture diamond sheet according to ASTM A793.
Specifications
|
Specification
|
|
|
|
Size
|
Thickness: 0.3 ~ 12.0 mm; Width: 1000 ~ 3000mm; Length: 2000 ~ 6000mm, or as Request.
|
|
|
Techniques
|
Cold Rolled, Hot Rolled
|
|
|
Surface
|
2B, No.1
|
|
|
Mill of Origin
|
SheyeMetal, Baosteel, ZPSS, TISCO, JISCO, ATI, SMC, HAYNES, VDM, ArcelorMittal, Outokumpo, etc.
|
|
|
Theoretical Weight(kg/m)
|
Weight/meter = T*W*L*7.93(7.98) T in mm, Both W and L in m.
|
|
Note:
L is the specified length.
W is the specified width.
Main Grades and Standards
1.Standards:
2.Materials(Grade):
3.Pattern
Pattern A: percent of reduction, 61%.
Pattern B: original of raised figures approximately 1-1/4 in., percent of reduction 61%.
Pattern C
L is the specified length.
W is the specified width.
T is the specified thickness
1.Standards:
ASTM A793
304, 304L, 316, 316L
Pattern A: percent of reduction, 61%.
Pattern B: original of raised figures approximately 1-1/4 in., percent of reduction 61%.
Pattern C
Chemical Composition of Stainless Steel Diamond Sheet
|
Type
|
C≤%
|
Mn≤%
|
P≤%
|
S≤%
|
Si≤%
|
N≤%
|
Ni %
|
Cr %
|
Mo %
|
|
304
|
0.08
|
2.00
|
0.045
|
0.030
|
0.75
|
0.10
|
8.00-10.50
|
18.00-20.00
|
…
|
|
304L
|
0.030
|
2.00
|
0.045
|
0.030
|
0.75
|
0.10
|
8.00-12.00
|
18.00-20.00
|
…
|
|
316
|
0.08
|
2.00
|
0.045
|
0.030
|
0.75
|
0.10
|
10.00-14.00
|
16.00-18.00
|
2.00-3.00
|
|
316L
|
0.030
|
2.00
|
0.045
|
0.030
|
0.75
|
0.10
|
10.00-14.00
|
16.00-18.00
|
2.00-3.00
|
This material shall conform to the requirements of one of the grades listed in the above table. Annealing shall be the last heat treatment to which the material is subjected by the manufacturer.
Note: Any other ordered thickness may be subject to agreement between purchaser and seller.
|
Specified Dimensions
|
|
Tolerances
|
|
|
|
||||
|
|
|
Thickness Under 9.5mm
|
|
Thickness 9.5 to12.7, mm
|
|
||||
|
Width
|
Length
|
Width
|
Length
|
Width
|
Length
|
||||
|
1219 and Under, mm
|
6096 and under, mm
|
3.2mm
|
4.8mm
|
4.8mm
|
6.4mm
|
||||
|
Over 1219 to 1524, mm
|
6096 and under, mm
|
4.8mm
|
6.4mm
|
6.4mm
|
7.9mm
|
||||
