Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
new brand
-
Model Number:
-
K50
-
Speed:
-
1500/1800 (rpm)
-
Weight:
-
10348
-
Title:
-
KTA50 QSK50 1250kva 1000kw Diesel Generator 1 mw
-
Part Name:
-
Generator 1 mw
-
Switch Conditon:
-
W/O Transfer Switch
-
Alternator Brand:
-
Stamford/Marathon, etc.
-
Working Power (Condition):
-
ESP/PRP/LTP/COP/DCP
-
Application Type:
-
Soundproof/Mobile trailer/Containerized
-
Engine Model:
-
K50/KTA50
-
Packing:
-
Wooden case/Carton case
-
Size:
-
Standard Size or OEM Standard
-
Certification:
-
ISO9001
Quick Details
-
Rated Voltage:
-
220-347/380-600 (V)
-
Rated Current:
-
55 A
-
Frequency:
-
50/60 HZ
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
new brand
-
Model Number:
-
K50
-
Speed:
-
1500/1800 (rpm)
-
Weight:
-
10348
-
Title:
-
KTA50 QSK50 1250kva 1000kw Diesel Generator 1 mw
-
Part Name:
-
Generator 1 mw
-
Switch Conditon:
-
W/O Transfer Switch
-
Alternator Brand:
-
Stamford/Marathon, etc.
-
Working Power (Condition):
-
ESP/PRP/LTP/COP/DCP
-
Application Type:
-
Soundproof/Mobile trailer/Containerized
-
Engine Model:
-
K50/KTA50
-
Packing:
-
Wooden case/Carton case
-
Size:
-
Standard Size or OEM Standard
-
Certification:
-
ISO9001
|
Specifications For KTA50-C1675-D5A
|
|
|
|
|||
|
Engine Type
|
V-Block, 16-Cylinder
|
Application
|
generator set
|
|||
|
Rated Speed
|
1500RPM
|
Fuel Filter
|
Dual spin on paper element fuel filters with standard water separator
|
|||
|
Displacement
|
50 L
|
Standard cooling system
|
104 ºF (40 ºC) ambient radiator
|
|||
|
Prime Power
|
1250-1608 kva
(1000-1286 kw)
|
Length
|
5811 mm
|
|||
|
Standby Power
|
1400-1932 kva
(1120-1545 kw)
|
Width
|
2033 mm
|
|||
|
Bore and Stroke
|
6.25 in x 6.25 in
(158.8mm x 158.8 mm)
|
Height
|
2330 mm
|
|||
|
Aspiration
|
Turbocharged and Charge Air Cooled
|
Weight (wet)
|
10348 kg
|
|||
|
Air cleaner type
|
Dry replaceable element
|
Lube oil filter type(s)
|
Spin-on paper element full flow and bypass lube oil filters
|
|||
|
Constant load steady state volatility
|
±1%
|
Fuel system
|
Direct injection
|
|||
|
Frequency
|
50/60Hz
|
Power standard
|
ESP, PRP, DCP, COP, LTP, MAX
|
|||
|
Voltage standard
|
G1,G2,G3,G4
|
Certificate standard
|
UL,NFPA,ISO,IEC,Mil Std,CE,CSA
|
|||
1. Generator Set Overview
2. Alternator Structure
3. Accessories
4.Main Features

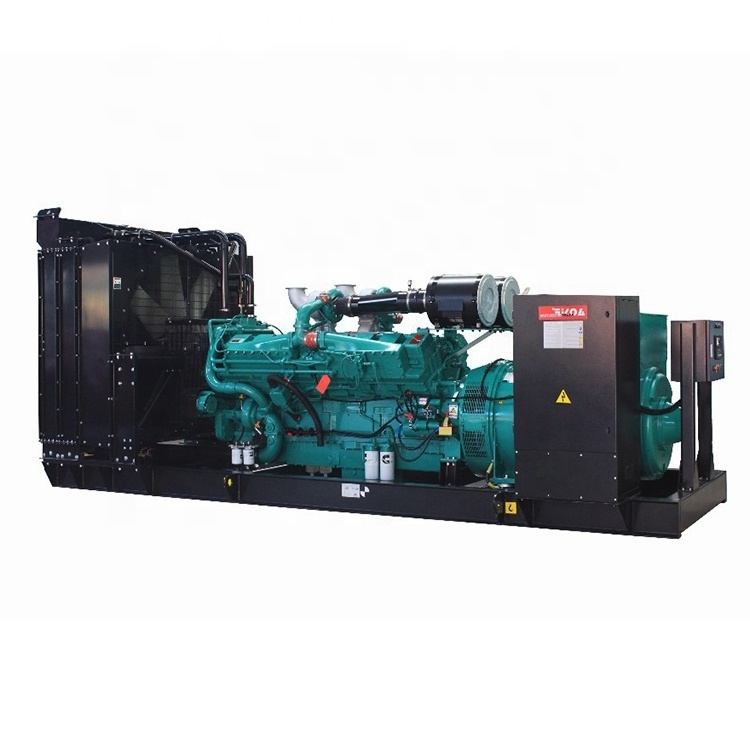

This
KTA50
generator set is a fully integrated power generation system,providing optimumperformance, reliability, and versatility for stationary Standby, Prime Power, and Continuous duty applications.
heavy-duty engine
- Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.
Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability. Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class F or H insulation.
Control system - Standard PowerCommand® electronic control provides total system integration including remote start/stop, precise frequency and voltage regulation, alarm and status message display, AmpSentryTM
protection, output metering, auto-shutdown.5. Generator Sets List
|
Genset Model
|
Engine Model
|
Alternator Stamford
|
Prime Power
(kw/kva)
|
Standby Power
(kw/kva)
|
|
C55D5
|
4BTA3.9-G2
|
UCI224D
|
40/50
|
44/55
|
|
C80D5
|
6BT5.9-G1
|
UCI224F
|
58/73
|
64/80
|
|
C90D5
|
6BT5.9-G1
|
UCI224G
|
65/82
|
72/90
|
|
C100D5
|
6BT5.9-G1
|
UCI274C
|
73/92
|
80/100
|
|
C110D5
|
6BTA5.9-G2
|
UCI274C
|
80/100
|
88/110
|
|
C150D5B
|
6BTAA5.9-G15
|
UCI274E
|
110/138
|
120/150
|
|
C175D5B
|
6BTAA5.9-G15
|
UCI274F
|
128/160
|
140/175
|
|
C200D5
|
6CTA8.3-G2
|
UCI274H
|
145/182
|
160/200
|
|
C220D5
|
6CTAA8.3-G7
|
UCI274H
|
160/200
|
176/220
|
|
C250D5
|
6CTAA8.3-G9
|
UCDI274J
|
182/228
|
200/250
|
|
C275D5B
|
6LTAA9.5-G3
|
UCDI274k
|
200/250
|
220/275
|
|
C300D5B
|
6LTAA9.5-G3
|
HCI4D
|
220/275
|
240/300
|
|
C330D5B
|
6LTAA9.5-G1
|
HCI4D
|
240/300
|
264/330
|
|
C350D5B
|
6LTAA9.5-G1
|
HCI4E
|
256/320
|
280/350
|
|
C375D5
|
NTA855-G2A
|
HCI444E
|
270/338
|
300/375
|
|
C400D5
|
NTA855-G4
|
HCI444FS
|
288/360
|
320/400
|
|
C400D5EB
|
QSZ13-G7
|
HCI5C
|
291/364
|
320/400
|
|
C450D5EB
|
QSZ13-G7
|
HCI544C
|
327/409
|
360/450
|
|
C500D5
|
QSZ13-G5
|
HCI544D
|
364/455
|
400/500
|
|
C500D5E
|
QSX15-G8
|
HCI544C
|
360/450
|
400/500
|
|
C550D5E
|
QSX15-G8
|
HCI544D
|
400/500
|
440/550
|
|
C640D5
|
KTAA19-G6
|
HCI544E
|
460/575
|
505/632
|
|
C700D5
|
VTA28-G5
|
HCI544F
|
512/640
|
565/707
|
|
C825D5
|
VTA28-G6
|
HCI634G
|
600/750
|
660/825
|
|
C900D5
|
QSK23-G3
|
HCI634H
|
656/820
|
720/900
|
|
C1000D5
|
KTA38-G5
|
HCI634J
|
810/1013
|
850/1063
|
|
C1100D5B
|
KTA38-G5
|
HCI634K
|
823/1029
|
906/1133
|
|
C1250D5A
|
KTA38-G9
|
PI734A
|
900/1125
|
1000/1250
|
|
C1400D5
|
KTA50-G3
|
PI734B
|
1000/1250
|
1120/1400
|
|
C1675D5
|
KTA50-G8
|
PI734D
|
1120/1400
|
1340/1675
|
|
C1675D5A
|
KTA50-GS8
|
PI734D
|
1200/1500
|
1340/1675
|
|
C2000D5
|
QSK60-G3
|
PI734F
|
1500/1875
|
1650/2063
|
|
C2250D5
|
QSK60-G4
|
PI734G
|
1600/2000
|
1800/2250
|
|
C2500D5A
|
QSK60-G8
|
PI734H
|
1800/2250
|
2000/2500
|
Pre-Sales Service
* Sample testing support.
* View Factory.
After-Sales Service
* Engineers available to service machinery overseas.
warranty
|
Packaging
|
|
|
|
|||
|
Size
|
5850*2050*2350 (mm)
|
|
|
|||
|
Weight
|
10400 kg
|
|
|
|||
|
|
The normal package is original wooden box(Size: L*W*H). If export to some special countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.
|
|
|
|||
