Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
1
-
Key word:
-
Smart glass film
-
Transmittance:
-
85%
-
Power Supply:
-
30W/50W/100W/300W(Customizable )
-
Control Methods:
-
Manual Operation , Remote Control. Sound Control , Inverter Control ,
-
Thickness:
-
0.38mm
-
Size:
-
1800Max *30000mm
-
Sample Service:
-
200*300(Customizable )
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, NONE
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
1
-
Key word:
-
Smart glass film
-
Transmittance:
-
85%
-
Power Supply:
-
30W/50W/100W/300W(Customizable )
-
Control Methods:
-
Manual Operation , Remote Control. Sound Control , Inverter Control ,
-
Thickness:
-
0.38mm
-
Size:
-
1800Max *30000mm
-
Sample Service:
-
200*300(Customizable )
Products Description

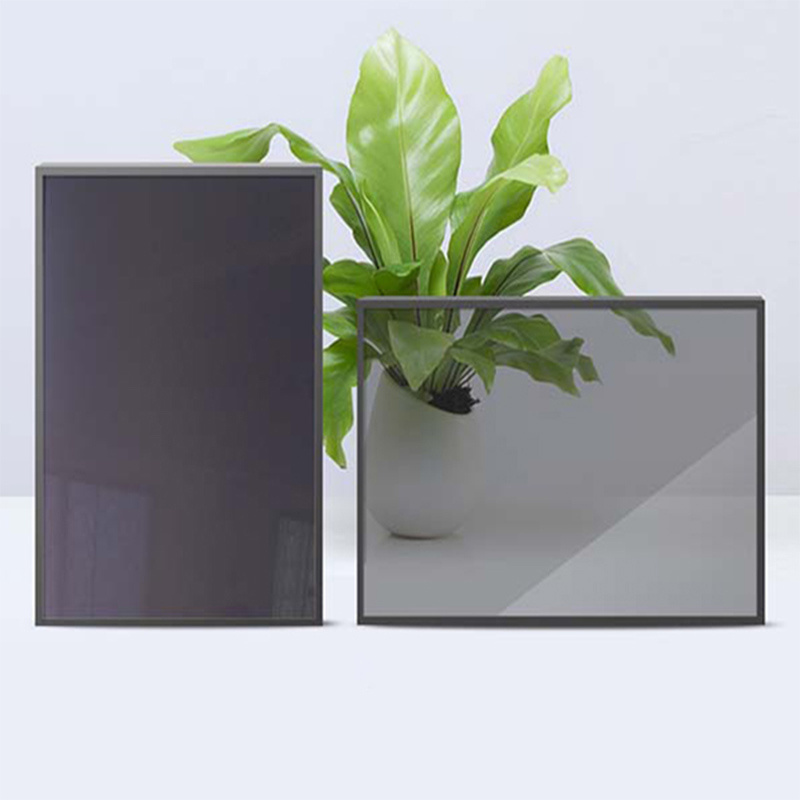

Smart switchable film is a product that is capable of adjusting light transmission between transparent and opaque using AC power. Due to moisture sensitivity, earlier versions of the film were used only to make smart glass by lamination on glass. With continual improvement in moisture resistance, the new (3rd) generation of the film can be directly installed on existing windows with special glue or self-adhesive. It combines many functions, such as light adjustment, UV and infrared blocking, Projector, advertising and security.
Production Advantage
1.Privacy Protection
When the power is on (transparent), the space can be expanded to the maximum extent, which is convenient for internal and external communication. But when the power is off (opaque), it can instantly create a privacy space.
2.Energy-saving and Cost-reducing
The smart film and glass are made into smart switchable glass, which has good thermal insulation effect to reduce indoor solar heat energy, and air conditioning power consumption.
3.Screen Projection
Using a projector to project onto the smart film (self-adhesive film) can produce a clear projection effect. When combined with infrared touch frame, you can also build a large-size (more than 100 inches) touch screen.
|
Optical Properties
|
Parallel Light Transmission
|
ON
|
>78%
|
|||
|
|
|
OFF
|
<5%
|
|||
|
|
Visible Light Transmission
|
ON
|
>=86%
|
|||
|
|
|
OFF
|
<= 65%
|
|||
|
|
Visual Angle
|
ON
|
150 degree
|
|||
|
|
UV Blocking
|
On
|
>= 99% (Top)
|
|||
|
|
IR Blocking
|
OFF
|
>20%(Top)
|
|||
|
Electrical Properties
|
Operating Voltage
|
On
|
AC110V,AC60V,AC36V.AC24V,
|
|||
|
|
Working Voltage
|
|
AC48V-65V/50HZ
|
|||
|
|
Frequency
|
On
|
50~60HZ
|
|||
|
|
Current
|
On
|
2 mA/sq mt
|
|||
|
|
Power Consumption
|
On
|
<=5W/sq mt
|
|||
|
Specification
|
Thickness
|
0.38mm
|
|
|||
|
|
Max Size
|
1800mmx30000mm( Our advantage)
|
|
|||
|
|
Glass Color:
|
Milky white, light grey, dark grey ,blue ,green , pink ,red , blue
|
|
|||
|
Shape
|
Any shape , and Any Hole , Any Cut
|
|
|
|||
|
Other index
|
Working Temperature
|
–10~70 °C
|
|
|||
|
|
Preserve Temperature
|
–20-75°C
|
|
|||
|
|
Switching Times
|
>2000000
|
|
|||
|
|
Working Life
|
On >= 80000 hr
|
|
|||
|
Noted : Welcome Roll film & Provide All Accessories
|
|
|
|
|||
Application
Wire& Controller
Product Package
Mass Quantity
Small Quantity
Product Workshop
FAQ
Question1:Can we install this product ourselves?
Answer:YES, our professional engineer online teaching and we have English teaching video .
Question2: Does it block the UV harmful rays?
ANSWER:YES. It blocks over 98% of the harmful UV rays in both its energized and non-energized state.
Question3:How long will it take for production and delivery?
Answer : In genelly , cutting size need 4-5days , Roll film about 3-4days , weclome customized product.
Question4: Does your company provide installation services overseas?
Answer : YES , we have professional install term , but the fee need pay from client , we can install door to door ,
Question5: If buy roll film , Can we learn cutting and install on factory?
Answer : YES , at least 1 roll, you can free learn from our factory , We have training course .
