4MP 5MP CCTV Camera Accessories CVI TVI AHD HD Video Balun with Active & Passive Audio for CCTV Signal Monitoring

4MP 5MP CCTV Camera Accessories CVI TVI AHD HD Video Balun with Active & Passive Audio for CCTV Signal Monitoring

FOB Reference Price: Get Latest Price

≥50 Pairs

US $0.75

≥1000 Pairs

US $0.7

≥10000 Pairs

US $0.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

ITEM:: video balun

Feature:: for CCTV signal

Resolution:: HD 5MP

For cctv camera:: CVI AHD TVI

Color:: Black

Material:: ABS Plastic

Dimension:: 22*35*145mm

Weight::: 20g

Application:: Security Camera

Function:: video transmiter&receive

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Viewbest

Model Number:: UTP-102RJ

ITEM:: video balun

Feature:: for CCTV signal

Resolution:: HD 5MP

For cctv camera:: CVI AHD TVI

Color:: Black

Material:: ABS Plastic

Dimension:: 22*35*145mm

Weight::: 20g

Application:: Security Camera

Function:: video transmiter&receive

4MP 5MP CCTV Camera Accessories CVI TVI AHD HD Video Balun with Active & Passive Audio for CCTV Signal Monitoring

Product Description

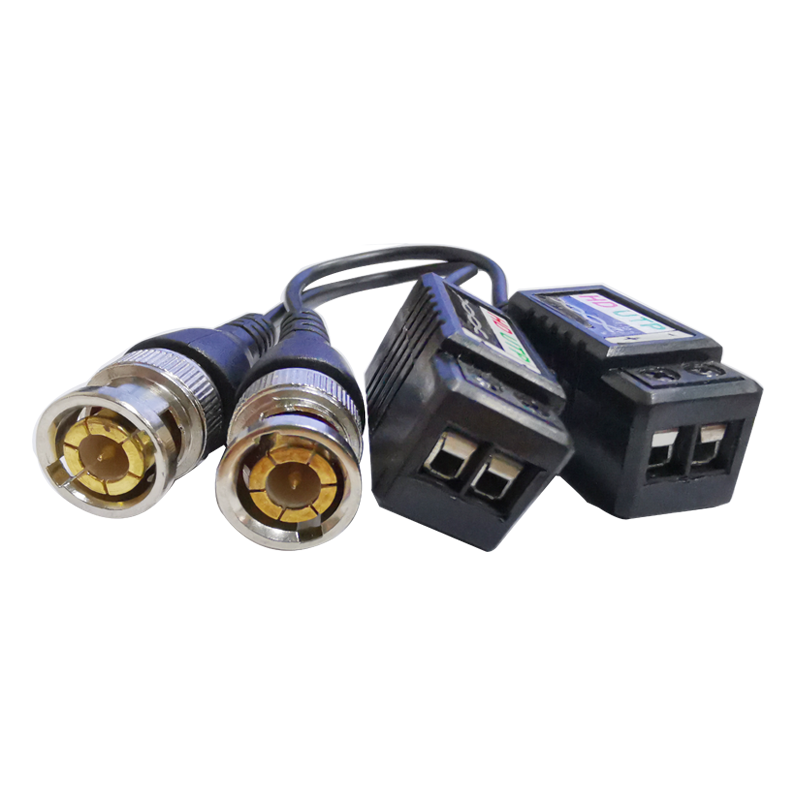

Single Passive Video Balun - High Quality

300m color and 600m black and white transmission distance over CAT5E cable.

a. Big size solid screw terminals for UTP cable connection.

b. Build in video wave filter and large inductance common mode choke for 'Hum-Bar Rejection'
c. Good quality Blue-White color sticker with 'CE' qualification logo.
d. Good quality mini cable and BNC male connector with anti-skid chequer.
e. Build in light surge gass tube protector working in harsh environment, engineering outside use.
f. packing in good quality blister card- two units, one pair.
g. Twice one-by-one QC passing test for semi-finished product and finished product procedure. Shipping product failure rate less
2PPM.
h. Stand alone latch-locked plastic case, repairable design.

Features

* Video transmission via UTP CAT5 cable.
* Over 10-20% wire costs saved.
* Full-motion CCTV video at distances up to 2000ft B/W(600m), 1500ft Color (400m)
* Building video filter and loop termination circuit
* 'HUM-BARs' rejective video BALUN transceiver
* Outstanding interference rejection and transient protection.
* Building in lightning protection glass/ceramic gas tuber (Engineer/Enhance Model: UST102BP UST102EP).
* Male BNC with 150mm minil cable allows connection directly to the camera or DVR. (UST102BP UST102EP)
Male RCA with 150mm mini cable allows connection directly to the DVR/Media Player. (UST102RP)
Male BNC with 150mm mini cable allows connection directly to the DVR/Media Player,RJ45 Jack. (UST102RJ)
* No power required.
* Up to 3,000ft (1km) with active receiver or hub.
* For more information, please contact with authorized distributors.

Attenuation	DC to 5 Mhz: 1.5 dB max
Common-mode rejection	15KHz to 5 Mhz: 60 dB typ
Impedance	Coax Cable, Male BNC (or RCA) 75 ohms UTP, Screw Terminals 100 ohms
Wire Type	Network Wiring: One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm) per signal Category Type: Cat 2 or better Impedance: 100 ?20 ohms DC Loop Resistance: 26 ohms max Differential Capacitance: 19 pF/ft max Wire Length, camera to monitor including coax, 1,000 ft (300 m), can be up to 2000ft max (600m) B/W signal
Connector Interfaces	Video: Male BNC connector with 150mm coxial cable Network Interface: 2 Screw Terminals for UTP pair cable
Environmental	Temperature: 0 to +50?C Humidity (non-condensing): 0 to 95% ESD Susceptibility (200 pf probe) : 20 KV
Mechanical	Dimensions no excluding BNC: 225145mm with coxial cable Weight: 30g Material: Black ABS Mounting: No needed Package: Blister Card
