Quick Details
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1200*500*500mm
-
Power (kW):
-
11kw
-
Weight (KG):
-
100 KG
-
Name:
-
FRP spraying machine
-
Usage:
-
FRP spraying
-
Spray resin:
-
3.5-5Kg/min
-
Chopped glass fiber:
-
1-5Kg/min
-
Pressure ratio:
-
18:1
-
Curing agent ratio adjustment range:
-
0.8-3%
-
working pressure:
-
0.3-0.6Mpa
-
Size:
-
1200*500*500mm
-
weight:
-
100kg
-
Feature:
-
Easy Simple Operation
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HG
-
Machine Type:
-
Bubble Film
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1200*500*500mm
-
Power (kW):
-
11kw
-
Weight (KG):
-
100 KG
-
Name:
-
FRP spraying machine
-
Usage:
-
FRP spraying
-
Spray resin:
-
3.5-5Kg/min
-
Chopped glass fiber:
-
1-5Kg/min
-
Pressure ratio:
-
18:1
-
Curing agent ratio adjustment range:
-
0.8-3%
-
working pressure:
-
0.3-0.6Mpa
-
Size:
-
1200*500*500mm
-
weight:
-
100kg
-
Feature:
-
Easy Simple Operation
Product Description

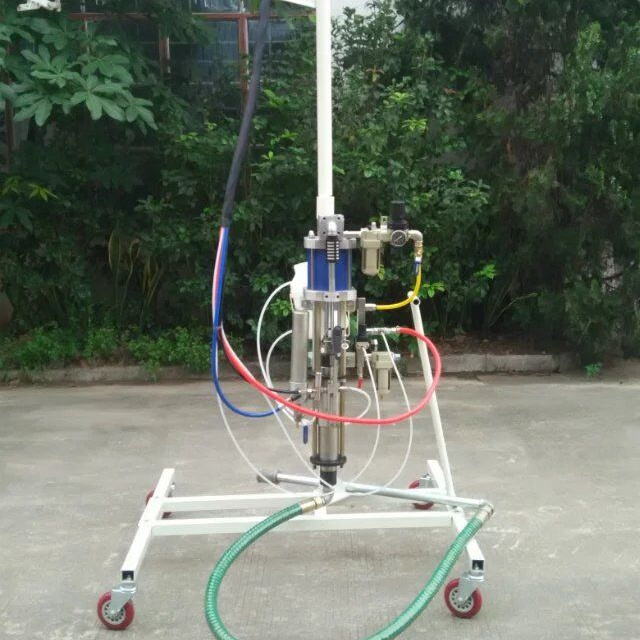

Pneumatic FRP resin fiber industrial anti-corrosion spraying equipment FRP spraying machine with gun
FRP spraying machine (FRP spraying machine) replaces hand-pasted FRP and is suitable for the production of FRP storage tanks, sanitary ware, double-walled tanks, flat plates, cooling towers, water tanks, wind power blades, automobile parts, pipe linings and other products. Compared with traditional manual production, it improves efficiency, reduces costs, and improves product quality. There are basically no restrictions on the shape and size of the product, and the operation is simple. The spray gun is an external mixing type and does not need to be cleaned at ordinary times.
Specification
|
Name
|
FRP spraying machine
|
|
Spray resin
|
3.5—5Kg/min
|
|
Chopped glass fiber
|
1—5Kg/min
|
|
Pressure ratio
|
18：1
|
|
Curing agent ratio adjustment range
|
0.8—3%
|
|
working pressure
|
0.3—0.6Mpa
|
|
size
|
1200*500*500mm
|
Packing & Delivery
Standard export wooden case for
Pneumatic FRP resin fiber industrial anti-corrosion spraying equipment FRP spraying machine with gun
