South Tianyu C6 GNSS RTK base and rover built-in radio 410-470MHz RTK GPS IMU survey GNSS receiver with 1598 channels

South Tianyu C6 GNSS RTK base and rover built-in radio 410-470MHz RTK GPS IMU survey GNSS receiver with 1598 channels

FOB Reference Price: Get Latest Price

≥1 Sets

US $4800

≥5 Sets

US $4700

≥10 Sets

US $4600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: South Tianyu C6 GNSS RTK base and rover built-in radio 410-470MHz RTK

Channels:: 1598

Weight:: 890g(with Battery)

GPS:: L1, L1C, L2C, L2P, L5

GLONASS:: G1, G2

BeiDou:: B1, B2, B3

Operating temperature:: -45°C to 60°C

Battery:: 6800mAh, 3.7V

Storage:: 8GB

Operating Time:: 15h

Quick Details

Warranty:: 1 year

Place of Origin:: Guangdong, China

Brand Name:: TIANYU

Product name:: South Tianyu C6 GNSS RTK base and rover built-in radio 410-470MHz RTK

Channels:: 1598

Weight:: 890g(with Battery)

GPS:: L1, L1C, L2C, L2P, L5

GLONASS:: G1, G2

BeiDou:: B1, B2, B3

Operating temperature:: -45°C to 60°C

Battery:: 6800mAh, 3.7V

Storage:: 8GB

Operating Time:: 15h

Products Description

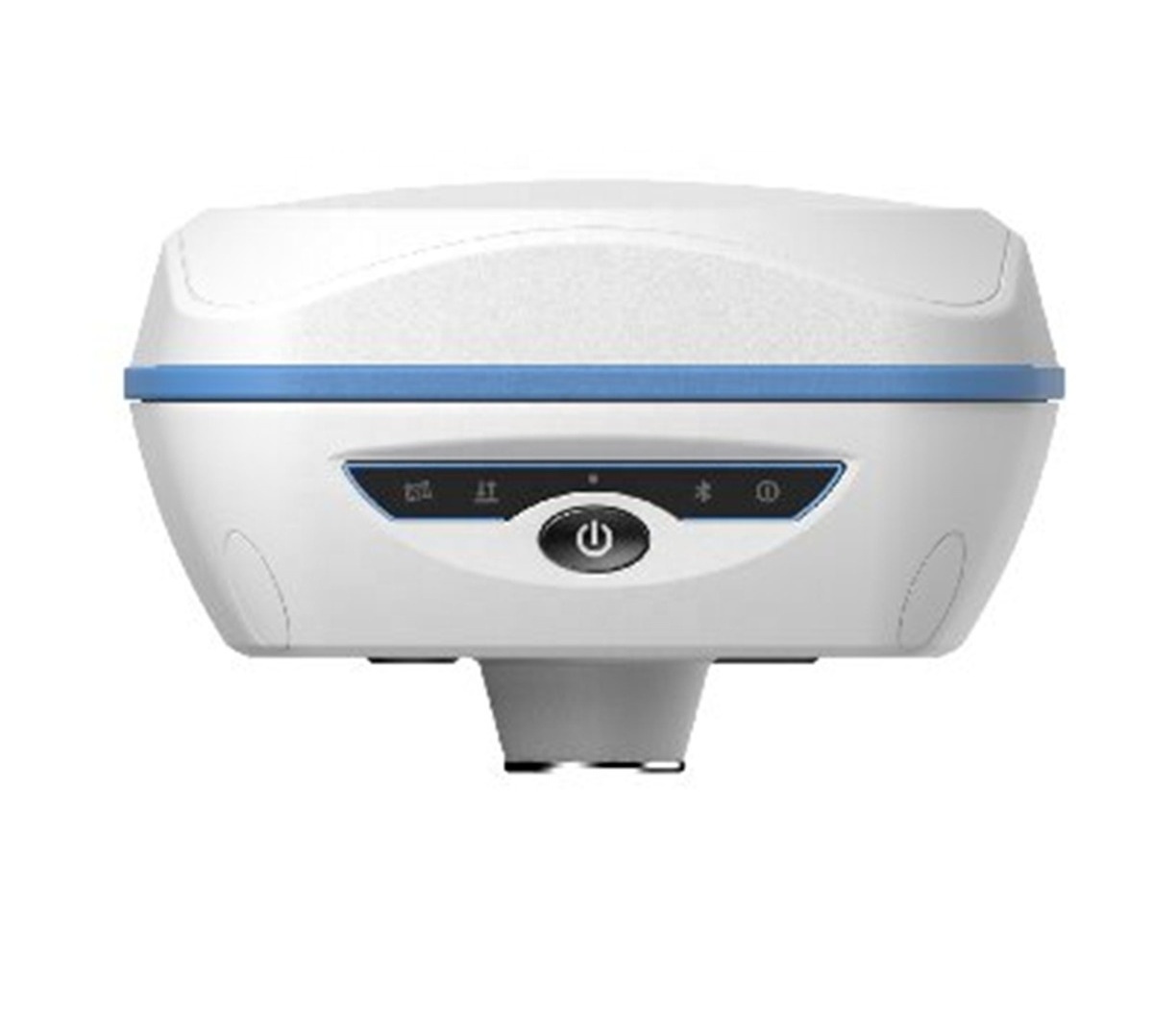

South Tianyu C6 GNSS RTK base and rover built-in radio 410-470MHz RTK GPS IMU survey GNSS receiver with 1598 channels

C6 GNSS POSITIONING SYSTEM

Key feature

1). Powered by Board-803
New generation of powerful GNSS mainboard Board-803 with 1598 channels enables C6 to support a wide range of satellite signals.

2). 5KM radio link
Built-in transceiver integrated radio, working frequency 410-470MHz. TrimTalk450S, TrimMark3, SOUTH, CHC, SATEL, HI-TARGET are all compatible.

3). Barrier-Free Measurement
Built-in 6800mAh high-capacity battery, the battery life is more than 15 hours, one charge, meets all-day work.

4). WiFi and Web Server
By connecting through the integrated WiFi of C6, you can log on an user-friendly management platform on the browser of your phone or computer.

5). IMU survey

Built-in IMU compensator, correct the coordinates according to the tilt direction and angle of the centering rod automatically within 60°.

6). Linux OS
Powered by the new generation of embedded Linux operating system, C6 has a greatly improved RTK performance and efficiency.

RECOMMENDED PARTNERS

Rugged Controller H6

Android 8.1
5” touch screen
4GB/32GB
Alphanumeric keypad
Ip67

Field Software

Android software SurvX
Easy-to-use work flow
Useful survey tools Google map supported
DXF, DWG import & display

External Radio S1

10/25W Output
SOUTH/Trimtalk Protocol
403-473MHz
Blue tooth 4.0
Ip67

Rugged Controller H6

* Android 8.1 Operating System, 64GB ROM

* 5" sunlight touch screen

* Full keypad, input faster

* 9200 mAh

large capacity battery works more time

* 4G cellular module, dual sim card slot

Controller H6 specification
SYSTEM	Operating system	Android 8.1
		CPU	Octa-core 2.0GHz
		RAM	4GB
		ROM	64GB
		Storage extension	Support 128GB extension
COMMUNICATION	SIM frequencies	GSM: B2/B3/B5/B8
				FDD-LTE :B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B28
				TDD-LTE B38/B39/B40/B41
				TDSCDMA B34/B39
				WCDMA B1/B2/B5/B8
				CDMA1x/CDMA2000 BC0
		Dual SIM card slot	Support two nano sim
		USB	Type-C, support OTG
		WiFi(WLAN)	IEEE 802.11a/b/g/n, 2.4G/5G
		Blue tooth	V4.1
PHYSICAL	Display	5 inches capacitive touch screen (720×1280 dpi)
		Keypad	Full keypad
		Audio	Integrated speaker, microphone
		Camera	13 megapixel camera with auto-focus
		Flash light	High light Flash LED
		support	Gyro, NFC, G-Sensor, Compass
		GNSS	GPS/GLONASS/BDS
POWER	Battery Capacity	9200mAh
		Stand-by Time	240 Hrs
		Operating Time	15 Hrs
ENVIROMENT	Waterproof /Dustproof	IP67
		Shockproof	1.5m
		Operation temperature	-20°C~+60°C
		Storage temperature	-30°C~+70°C
PHYSICAL PROPERTY	Size	235mm90mm35mm
PHYSICAL PROPERTY		Weight	520g

Specification

RECEIVER SPECIFICATION	Channels	1598
		GPS Tracking	L1, L1C, L2C, L2P, L5
		GLONASS Tracking	G1, G2
		BeiDou Tracking	B1, B2, B3
		Galileo Tracking	E1, E5A, E5B, AltBOC
		QZSS	L1, L2C, L5
		SBAS	L1
		IRNSS	L5
		Positoning Rate	1-20Hz
RECEIVER ACCURACY	Code Differential	Horizontal 0.25m±1ppm (rms) Vertical 0.50m±1ppm (rms)
		Static	Horizontal 2.5mm±0.5ppm (rms) Vertical 5mm±0.5ppm (rms)
		Real-Time Kinematic	Horizontal 8mm±1ppm (rms) Vertical 15mm±1ppm (rms)
		Network RTK *By controller	Horizontal 8mm±0.5ppm (rms) Vertical 15mm±0.5ppm (rms)
IMU MEASUREMENT	Tilt Range	Up to 60°
IMU MEASUREMENT		Accuracy	＜2cm(within 30°) ＜5cm(within 60°)
COMMUNICATION	I/O	5pin LEMO external power + RS232 7pin LEMO USB (OTG) + Ethernet Radio antenna interface
		UHF Radio Module	X-link 1W 410-470MHz
		Protocol	TrimTalk 450s, TrimMark3, PCC EOT, SOUTH
		WiFi	802.11b/g/n Hotspot Data Link
		Blue tooth	Blue tooth 2.1 +EDR and 4.0
		NFC	<10cm
INTERFACES	Button	One
INTERFACES		LED Indicator	Blue tooth, Data Link, Satellite, Power
DATA STORAGE	Type & Storage	SSD 8GB External USB pen drive
		Date Transfer	USB transfer Supports FTP/HTTP download
		Format (Differential)	CMR+, sCRMx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
		GPS Output Format	NMEA 0183, PJK plane coord., binary code, Trimble GSOF VRS, FKP, MAC
		Network Model	NTRIP fully supportable
POWER SUPPLY	Battery	Internal Li-on, 6800mAh, 3.7V PowerCase supported
POWER SUPPLY		Operating Time	15h
PHYSICAL	Dimension	84mm (H), 135mm (W)
		Weight with batt.	890g
		Operating Temp.	-45°C to 60°C
		Protection Class	IP67
		Shock	2m drop on hard surface
		Vibration	40G 10ms sawtooth wave
