Quick Details
-
Model Number:
-

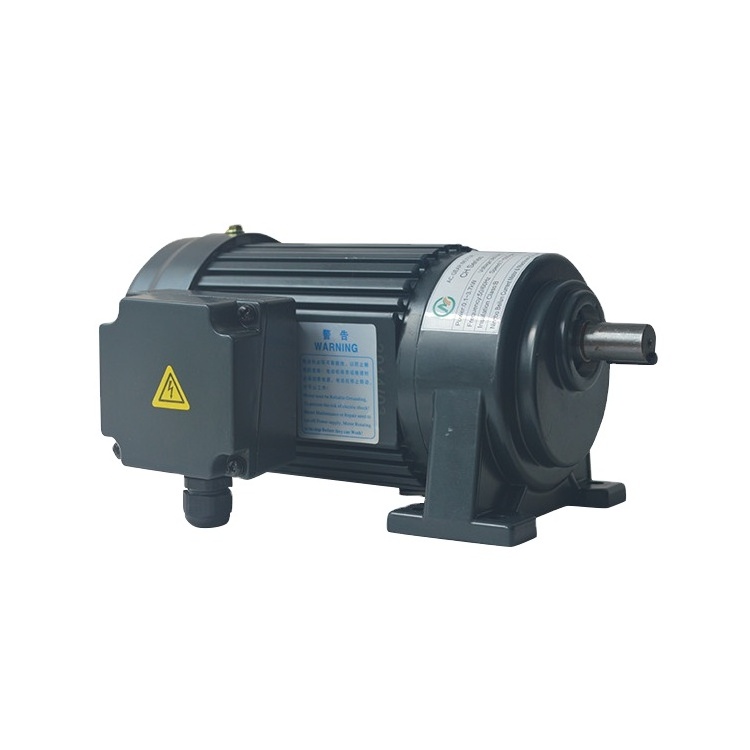

CH-0.2KW 3 phase ac gear motor
-
Frequency:
-
50/60HZ
-
Power range:
-
0.2KW
-
Output Speed:
-
Speed range is from 7rpm to 500rpm
-
phase:
-
Single phase and 3phases for choice
-
Gear:
-
special alloy steel and high precise gears
-
Grease:
-
good grease and no need add grease during using
-
Cooling:
-
full closed fan
-
USE:
-
This motor is widely used in packing machine, textil machine
-
OEM Service:
-
Yes! We offer OEM service
Quick Details
-
AC Voltage:
-
220VAC/380VAC/415VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM available
-
Model Number:
-
CH-0.2KW 3 phase ac gear motor
-
Frequency:
-
50/60HZ
-
Power range:
-
0.2KW
-
Output Speed:
-
Speed range is from 7rpm to 500rpm
-
phase:
-
Single phase and 3phases for choice
-
Gear:
-
special alloy steel and high precise gears
-
Grease:
-
good grease and no need add grease during using
-
Cooling:
-
full closed fan
-
USE:
-
This motor is widely used in packing machine, textil machine
-
OEM Service:
-
Yes! We offer OEM service
CV and CH series motor can be designed as Single phase and three phases type. And power range is from 0.1KW to 3.7KW. The motor can be mounted with brake, and brake type is No excitation type. Material of gears is advanced special alloy steel and all gears are carburizing hardening. This gear motor has been added with senior lubricants, and no needs to added lubricants again.
Torque Data sheet of CH-22-200 200W three phase ac motors
| Gear Ratio | 3 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 45 | 50 | |
| OUTPUT SPEED(RPM) | 50Hz | 500 | 300 | 150 | 100 | 75 | 60 | 50 | 37 | 33 | 30 |
| 60Hz | 600 | 360 | 180 | 120 | 90 | 72 | 60 | 45 | 40 | 36 | |
| OUTPUT TORQUE(N.m) | 50Hz | 0.37 | 0.62 | 1.24 | 1.80 | 2.40 | 3.00 | 3.60 | 4.60 | 5.40 | 5.70 |
| 60Hz | 0.31 | 0.52 | 1.04 | 1.50 | 2.00 | 2.50 | 3.00 | 3.90 | 4.40 | 4.80 | |
| Gear Ratio | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 | 200 | |
| OUTPUT SPEED(RPM) | 50Hz | 25 | 21 | 19 | 17 | 15 | 12 | 11 | 9 | 8 | 7 |
| 60Hz | 30 | 25 | 23 | 20 | 18 | 15 | 13 | 11 | 10 | 9 | |
| OUTPUT TORQUE(N.m) | 50Hz | 6.90 | 8.00 | 9.20 | 10.3 | 11.5 | 13.8 | 16.0 | 18.3 | 20.7 | 22.9 |
| 60Hz | 5.80 | 6.80 | 7.70 | 8.60 | 9.60 | 11.5 | 13.4 | 15.3 | 17.3 | 19.1 | |
Size of three phase horizontal ac gear motor
CH
series 0.2KW
| Type | CH series three phase or single phase ac motors for industrial use | |
| Voltage | 220VAC, 380VAC, 415VAC | |
| Power range | power range is 0.1KW to 3.7KW | |
| Output Speed | Speed range is from 7rpm to 500rpm | |
| Phase | Single phase and 3phases for choice | |
| Gears | special alloy steel and high precise gears | |
| Grease | good grease and no need add grease during using | |
| Cooling | full closed fan | |
| USE |
This motor is widely used in packing machine, textil machine |
motor is widely used in mix machine,elevator, conveyor,etc. |
| OEM Service | Yes! We offer OEM service. | |
