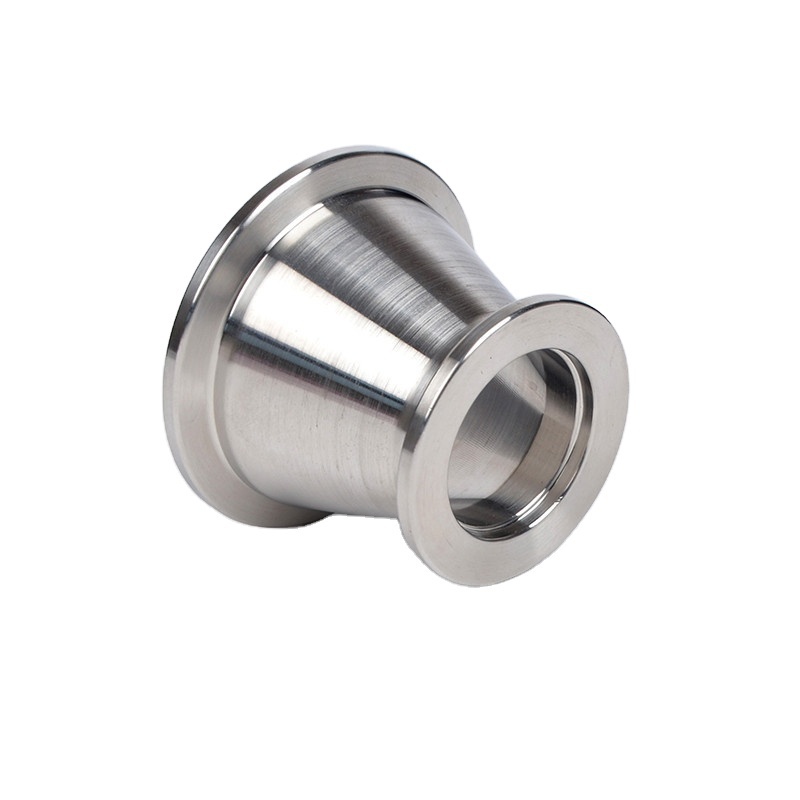

Conical Reducer with ISO-KF Flange KF16 KF25 KF40 KF50 (KF40 to KF25) Stainless Steel 304

Conical Reducer with ISO-KF Flange KF16 KF25 KF40 KF50 (KF40 to KF25) Stainless Steel 304

FOB Reference Price: Get Latest Price

≥10 Pieces

US $3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 year

Place of Origin:: Zhejiang, China

Brand Name:: newtek

Model Number:: NT-SSFA-KF

Material:: SS 304/316

Application:: Wines, beer, pure water, solutions, sugar syrup, milk

Length:: Customized

Quick Details

Technics:: Forged

Shape:: Reducing

Head Code:: Round

Warranty:: 1 year

Place of Origin:: Zhejiang, China

Brand Name:: newtek

Model Number:: NT-SSFA-KF

Material:: SS 304/316

Application:: Wines, beer, pure water, solutions, sugar syrup, milk

Length:: Customized

Stainless steel conical reducers have different sized ISO-KF flange sizes on each end.

Shuangzhan machinery offers stainless steel vacuum pipe fittings of KF, CF and ISO LF standard, including clamp, centering, bracket, vacuum ferrule, end cap, reducer, elbow, tee, cross, bellow, hose barb, female and male adapters. Variable sizes are optional. please view our website for more vacuum fitting size details.
https://www.brewingtanks.com/How-to-Detemine-Vacuum-Flange-Types-and-Sizes-id3099774.html

These are vacuum fittings. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges. The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50.

Product Description

1. Material: stainless steel 304/316 constructed
2. Size: KF-10 to KF-50 (NW10 to NW50)
3. Customized length is available, center end long or short.
4. Food grade finish

Features:

1. Material: stainless steel 304 or 316 constructed

2. 40 mm butt-weld stub

3. NW10 to NW50 flange sizes

4. Food grade finish

5. customized length is available

Packing&Shipping

cap-bubble bag-carton-plywood case, we ship to worldwide by Express, by sea and by air.

Company Introduction

Shuangzhan Machinery (new tek) is a growing factory which focus on developing high quality, intelligent, sanitary valves, equipments used in beverage and dairy field, sanitary pumps, sanitary pipe fittings, and a variety of fluid engineering applications. The products are widely used in wine, food, beverage, pharmaceutical, biopharmaceutical, water treatment, fine chemicals and other industrial fields.
