Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JZD
-
Model Number:
-
Automotive Cable
-
Product name:
-

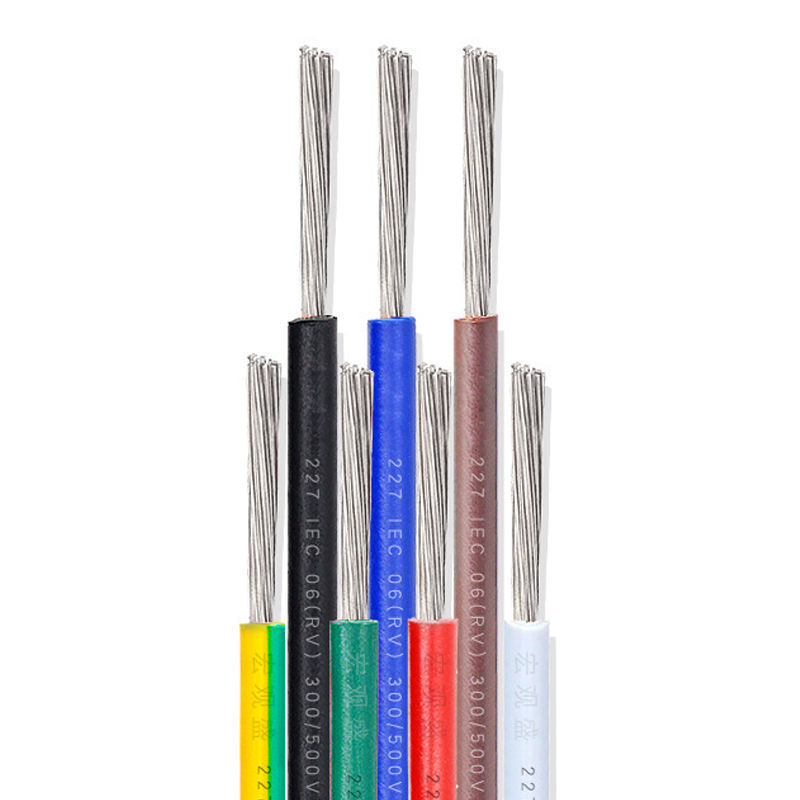

Tinned Copper Electric Hook up Cable
-
Color:
-
all color
-
Conductor:
-
Tinned Copper
-
Insulation:
-
PVC Insulation
-
Rated Voltage:
-
300V
-
MOQ:
-
1000 Meters
-
Certification:
-
ROHS/UL1007/CCC/VDE/CCC/ISO9001:2008
-
Package:
-
100M/Roll
-
Usage:
-
AWM
-
High Temperature:
-
80℃
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JZD
-
Model Number:
-
Automotive Cable
-
Product name:
-
Tinned Copper Electric Hook up Cable
-
Color:
-
all color
-
Conductor:
-
Tinned Copper
-
Insulation:
-
PVC Insulation
-
Rated Voltage:
-
300V
-
MOQ:
-
1000 Meters
-
Certification:
-
ROHS/UL1007/CCC/VDE/CCC/ISO9001:2008
-
Package:
-
100M/Roll
-
Usage:
-
AWM
-
High Temperature:
-
80℃
PRODUCT DESCRIPTION
* Rated temperature: 80 °C
* Rated voltage: 300V
* Reference standard：UL758,UL1581,CSAC22.2No.210.2
* Solid or stranded ,tinned or bare copper conductor 32〜16AWG
* PVC insulation ,comply with ROHS environmental standard
* Passes UL VW-1,CSA FT1 and JQA -F-Mark flame test
* Uniform insulation thickness to ensure easy stripping and cutting
* For general purpose internal wiring of appliance
* Rated voltage: 300V
* Reference standard：UL758,UL1581,CSAC22.2No.210.2
* Solid or stranded ,tinned or bare copper conductor 32〜16AWG
* PVC insulation ,comply with ROHS environmental standard
* Passes UL VW-1,CSA FT1 and JQA -F-Mark flame test
* Uniform insulation thickness to ensure easy stripping and cutting
* For general purpose internal wiring of appliance
|
CONDUCTOR
|
|
|
INSULATION
|
|
MAX.COND. RESISTANCE (Q/km,20°C,DC)
|
DIELECTRIC STRENGTH (VAC, Imin)
|
|||
|
AWG
|
CONSTRUCTION
(No./mm) |
DIA.
(mm) |
THICKNESS (mm)
|
O.D.
(mm) |
|
|
|||
|
30
|
1/0.254
|
0.25
|
0.40
|
1.05
|
361
|
2,000
|
|||
|
|
7/0.10
|
0.30
|
0.40
|
1.10
|
381
|
|
|||
|
28
|
1/0.32
|
0.32
|
0.39
|
1.10
|
227
|
2,000
|
|||
|
|
7/0.127
|
0.38
|
0.41
|
1.20
|
239
|
|
|||
|
|
7/0.127OS-1*
|
0.38
|
0.41
|
1.20
|
239
|
|
|||
|
26
|
1/0.404
|
0.40
|
0.43
|
1.25
|
143
|
2,000
|
|||
|
26
|
7/0.16
|
0.48
|
0.41
|
1.30
|
150
|
|
|||
|
|
7/0.16OS-1*
|
0.48
|
0.41
|
1.30
|
150
|
|
|||
|
24
|
1/0.511
|
0.51
|
0.42
|
1.35
|
89.3
|
2,000
|
|||
|
|
11/0.16
|
0.61
|
0.40
|
1.40
|
94.2
|
|
|||
|
|
7/0.200S-1*
|
0.60
|
0.40
|
1.40
|
94.2
|
|
|||
|
22
|
1/0.643
|
0.64
|
0.43
|
1.50
|
56.4
|
2000
|
|||
|
|
17/0.16
|
0.76
|
0.42
|
1.60
|
59.4
|
|
|||
|
|
7/0.254 OS-1*
|
0.76
|
0.42
|
1.60
|
59.4
|
|
|||
|
20
|
1/0.813
|
0.81
|
0.42
|
1.65
|
35.2
|
2,000
|
|||
|
|
26/0.16
|
0.94
|
0.43
|
1.80
|
36.7
|
|
|||
|
|
7/0.32OS-1*
|
0.96
|
0.42
|
1.80
|
36.7
|
|
|||
|
18
|
1/1.024
|
1.02
|
0.41
|
1.85
|
22.2
|
2,000
|
|||
|
|
41/0.16
|
1.18
|
0.47
|
2.10
|
23.2
|
|
|||
|
|
7/0.4040S-1*
|
1.21
|
0.45
|
2.10
|
23.2
|
|
|||
|
16
|
1/1.29
|
1.29
|
0.46
|
2.20
|
14.0
|
2,000
|
|||
|
|
26/0.254
|
1.49
|
0.46
|
2.40
|
14.6
|
|
|||
