Quick Details
-
Application:
-
Farm Work Machinery
-
Keywords:
-
Farmr Tractor
Quick Details
-
Place of Origin:
-
shandong
-
Weight:
-
1350 KG
-
Product name:
-
Agricultural Tractor
-
Application:
-
Farm Work Machinery
-
Keywords:
-
Farmr Tractor
Product Overview

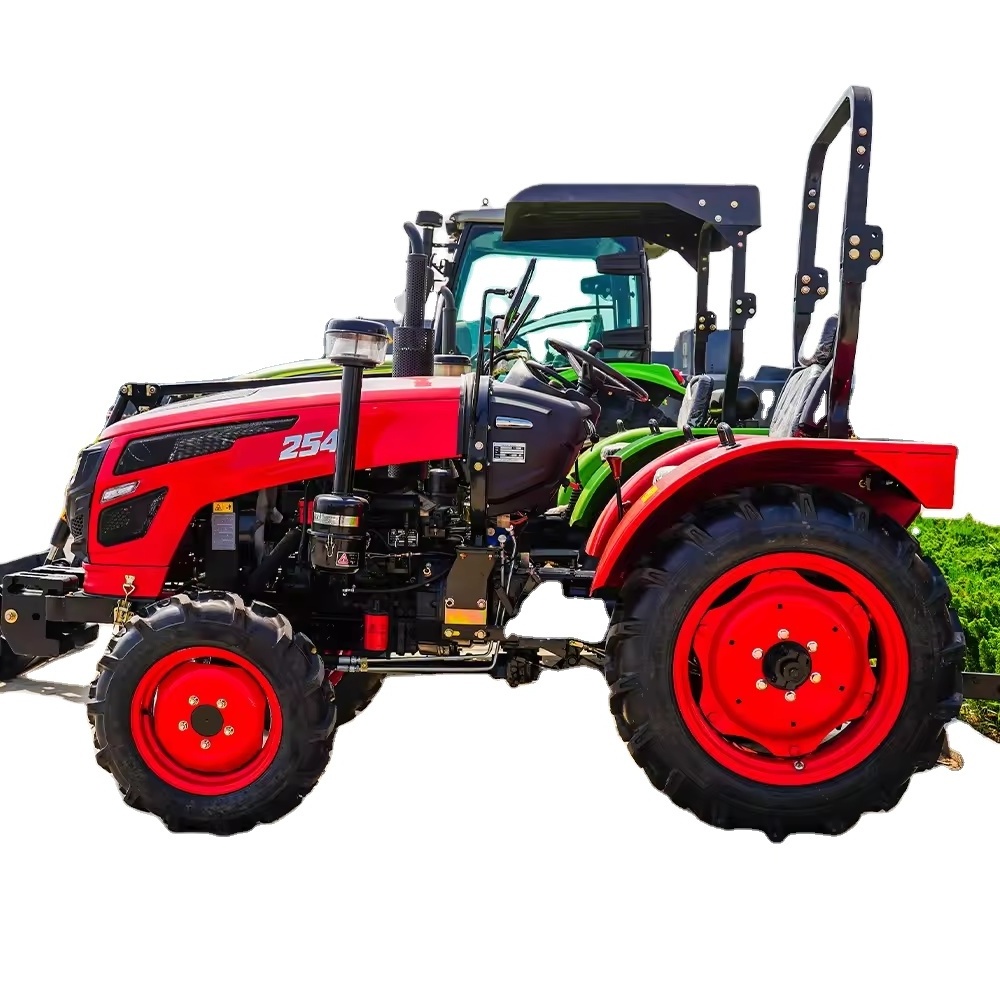

Tractor
TE series agricultural tractor
●TE series tractors are specially designed for various light-duty operations such as agriculture
and transportation.
●Equipped with Chinese famous brand diesel engine, it has the advantages of cost-effectiveness, high fuel
efficiency, low maintenance cost and good working performance.
●Using a central console and mature structure, the tractor is easy
to control and maintain.
●8F+2R gearbox, simple operation and convenient maintenance;
●Single/double-acting clutches can be
selected to meet different needs and operations; Herringbone tires, paddy tires or other types of tires can be selected to meet
your working conditions.
●Hydraulic power steering (4WD), easy to control, reduce the labor intensity of the operator.
●TE series tractors are specially designed for various light-duty operations such as agriculture
and transportation.
●Equipped with Chinese famous brand diesel engine, it has the advantages of cost-effectiveness, high fuel
efficiency, low maintenance cost and good working performance.
●Using a central console and mature structure, the tractor is easy
to control and maintain.
●8F+2R gearbox, simple operation and convenient maintenance;
●Single/double-acting clutches can be
selected to meet different needs and operations; Herringbone tires, paddy tires or other types of tires can be selected to meet
your working conditions.
●Hydraulic power steering (4WD), easy to control, reduce the labor intensity of the operator.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
|
Main Technical Specifications :
|
|
|
Overall Dimension（mm
|
|
|
||||
|
Model
|
NM-254
|
NM-304
|
NM-354
|
NM-404
|
NM-454
|
||||
|
Type
|
4x4
|
4x4
|
4x4
|
4x4
|
4x4
|
||||
|
L x W x H
|
3050x1500x2030
|
3050x1500 x 2930
|
3150x1500 x 2040
|
3250x1500x2130
|
3250x1500x2130
|
||||
|
Front Wheel
|
1200
|
1200
|
1200 i2nn( lienal)
|
1200 1?nn f iieital)
|
1200 i2nn r itcnAi)
|
||||
|
Wheel Base
|
1700
|
1700
|
1800
|
1800
|
1800
|
||||
|
Min. Ground Base
|
360 (the bottom of transmission box)
|
|
|
|
|
||||
|
Min. Usage Mass (kg)
|
1350
|
1350
|
1450
|
1450
|
1450
|
||||
|
Model
|
Laidong KM385
|
Laidong 39C
|
Laidong 4L22BT
|
Laidong 4L23BT
|
Laidong 490
|
||||
|
Type
|
Vertical, water cooled and 4-stroke
|
|
|
|
|
||||
|
Rated Power (kw)
|
18.4
|
22.1
|
25.7
|
29.4
|
33.1
|
||||
|
Rated Rev. (r/min)
|
2300
|
2300
|
2350
|
2300
|
2400
|
||||
