pool aerator, prawn pond aerator, paddle wheel aerator for shrimp pond
pool aerator, prawn pond aerator, paddle wheel aerator for shrimp pond
pool aerator, prawn pond aerator, paddle wheel aerator for shrimp pond
pool aerator, prawn pond aerator, paddle wheel aerator for shrimp pond
pool aerator, prawn pond aerator, paddle wheel aerator for shrimp pond
pool aerator, prawn pond aerator, paddle wheel aerator for shrimp pond
pool aerator, prawn pond aerator, paddle wheel aerator for shrimp pond
pool aerator, prawn pond aerator, paddle wheel aerator for shrimp pond

pool aerator, prawn pond aerator, paddle wheel aerator for shrimp pond

FOB Reference Price: Get Latest Price
≥5 Sets
US $200
≥20 Sets
US $180
≥50 Sets
US $170
≥999999 Sets
US $150
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
1HP
Weight:
58 KG
Key word:
pool aerator
Origin:
China
Reducer:
4 spline reducer
Motor:
1 HP/0.75KW
Phase:
3 Phase or single phase
Application filed:
Aquaculture machine aerators
Voltage:
110V/220V/380V/415V/440V
Frequency:
50Hz/60Hz
After-sales Service Provided:
Video technical support

Quick Details

Marketing Type:
Hot Product 2023
Place of Origin:
Zhejiang, China
Brand Name:
SHUANGQIAO
Model Number:
1HP
Weight:
58 KG
Key word:
pool aerator
Origin:
China
Reducer:
4 spline reducer
Motor:
1 HP/0.75KW
Phase:
3 Phase or single phase
Application filed:
Aquaculture machine aerators
Voltage:
110V/220V/380V/415V/440V
Frequency:
50Hz/60Hz
After-sales Service Provided:
Video technical support

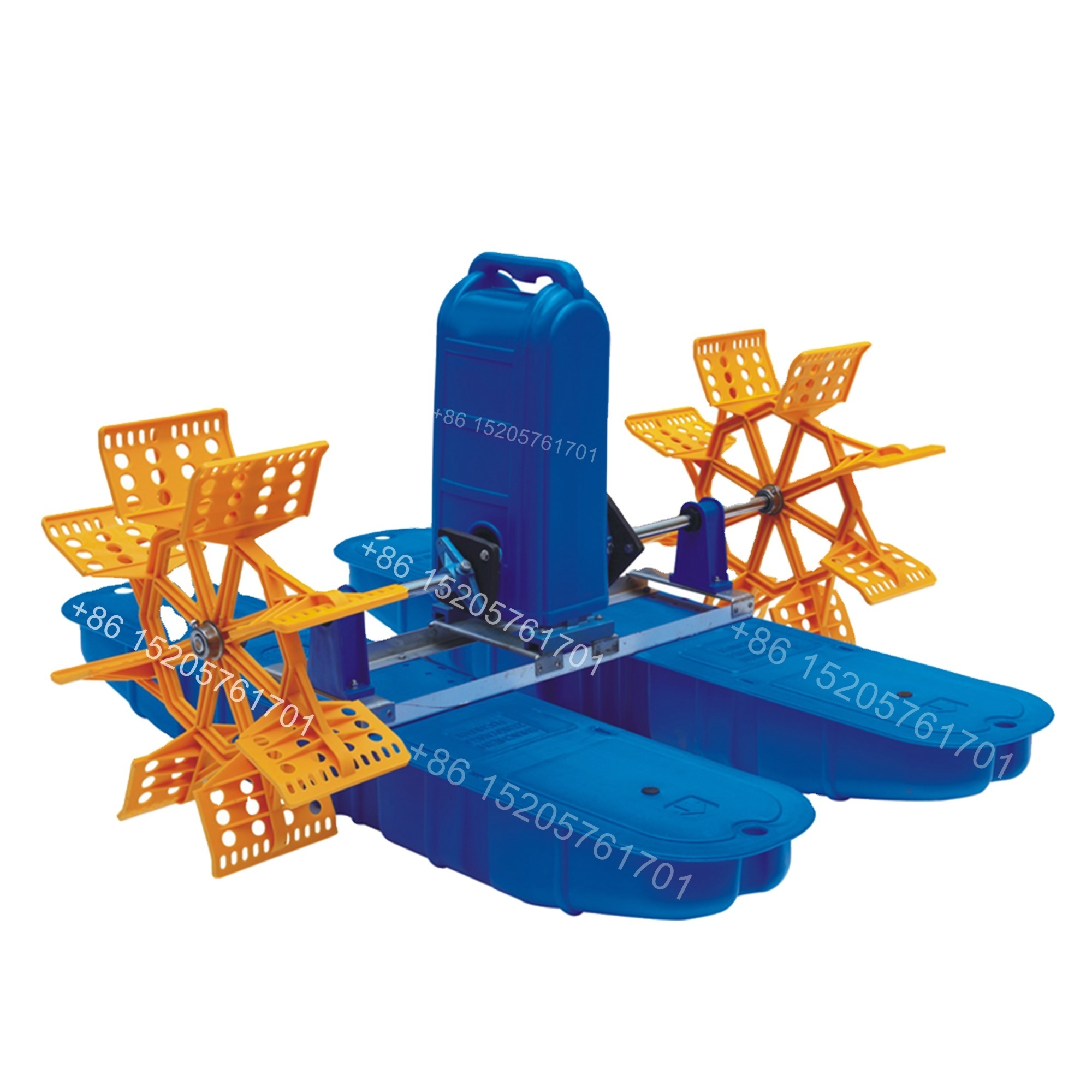

Pool aerator, prawn pond aerator, paddle wheel aerator for shrimp pond
1.Video call is available. You can see production line. Same exexperience to visit factory.
2.High quality. All spare parts are made by our factory. Easy to control the quality. 3.Factory price. No need share profit with spare parts supplier. Customer get best price.
4.Price can be negociated again.
5.Any problem, pls contact any time. Solution will be give in 12 hours.
Specification
Motor
1HP/ 304 S.S. fan cover
Reducer
4 spline reducer with cast iron body
Working area
660-3300㎡
Power efficiency
≥1.25 kg/kw.h
Aeration capacity
≥1.9kg/h
Products Description
MOTOR AND REDUCER
1.1HP power saving motor with low power consumption.
2. A protector is added to prevent the motor being accidentally burned out.
3. With 304 S.S. fan cover.
4. Voltage, hertz and phase can be made according to customers' needs. 5. The coil of motor made of pure 100% copper wire.
6. 4 SPLINE reducer:cheaper price with same function

IMPELLER

Material: PP Diameter:66cm Splash the water and make oxygen into the water, provide enough oxygen

FLOAT

Material: HDPE
Length:163cm
Weight: about 5kg
Function: to support the aerator float on water

WATERPROOF COVER

Material:HDPE Feature: a hole on handle, so hot air can go out and cool air go inside.
Function: protect motor and reducer from salt water.

Frame

Material: 304 s.s. Feature: with 4 ears. So farmer can put the rods to fix.

Shaft

Material: 304 s.s. Can be solid shaft or hollow shaft.

Coupling

Connect the reducer and shaft.
The material can be cast iron or 304 S.S.

Shaft seat

1. With rolling pin inside, less friction
2. You can adjust the height.

Product packaging

1.Full container

Carton for motor, reducer, waterproof cover and small spare parts.
No package for impeller, float, frame and shaft.

2.LCL

Wood box for motor, reducer, waterproof cover and small spare parts. Bags for impeller, float, frame and shaft.
